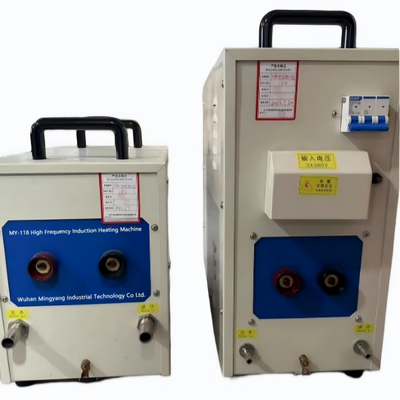

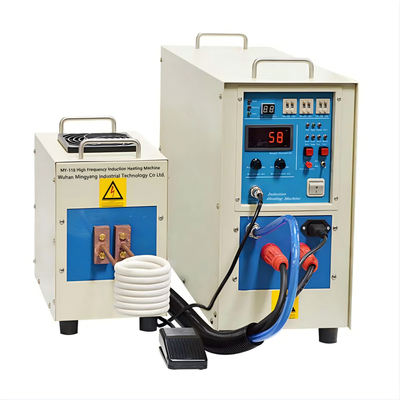

MY-118 15KW Split Type High Frequency Induction Heating Machine, 30-80KHz Timer Controlled Desktop Induction Heater

  • MY-118 15KW Split Type High Frequency Induction Heating Machine, 30-80KHz Timer Controlled Desktop Induction Heater
  • MY-118 15KW Split Type High Frequency Induction Heating Machine, 30-80KHz Timer Controlled Desktop Induction Heater
  • MY-118 15KW Split Type High Frequency Induction Heating Machine, 30-80KHz Timer Controlled Desktop Induction Heater
  • MY-118 15KW Split Type High Frequency Induction Heating Machine, 30-80KHz Timer Controlled Desktop Induction Heater
  • MY-118 15KW Split Type High Frequency Induction Heating Machine, 30-80KHz Timer Controlled Desktop Induction Heater
  • MY-118 15KW Split Type High Frequency Induction Heating Machine, 30-80KHz Timer Controlled Desktop Induction Heater
Place of Origin China Mainland
Brand Name MINGYANG
Model Number MY-118
Minimum Order Quantity 1
Price 5500usd
Packaging Details carton
Delivery Time 1 week
Payment Terms D/A,L/C,D/P,T/T,Western Union
Supply Ability 5500/Month
Product Details
Types Automatic Max Input Power 15 KW
Output Frequency 30-80 KHz Working Voltage 208-240V 3 Phase 50/60Hz (380V/440V Optional)
Max Input Current 42A Heating Current 200-800A
Duty Cycle 80% Max Melting Sample Weight 2kg
Net Weight 28kg Cooling Mode Water Cooling
Structure Split Type
Leave a Message
Product Description
MY-118 15KW Split Type High Frequency Induction Heating Machine, 30-80KHz Timer Controlled Desktop Induction Heater
Product Description

MY-118 is a kind of high-frequency heating equipment, which features the latest inverting technology so as to make itself light and convenient. Its 15kW Induction Heater is designed for the material research lab to quickly melt and perform heat treating to metallic materials up to 2kg.

Specifications
Working Voltage
  • 208-240V AC, 50/60 Hz, Three Phases (380V or 440V, Three Phases are available upon request)
Max. Input Current
  • 42 A (Min. 50A breaker required)
  • Power cable included (Plug is not included)
Output Frequency
  • 30-80 kHz
Heating Current
  • 200-800 A
Max. Input Power
  • 15 KW
Duty Cycle
  • 80%
Max. Sample Weight
  • 2 kg
Dimension
  • 18"(L) x 8"(W) x 17"(H)
Net Weight
  • 28 kg (62 lbs)
Shipping
  • Shipping Dimension: 40"(L) x 32"(W) x 35"(H)
  • Shipping Weight: 165 lbs


Timer Control
  • Automatic timer control or Manual control selectable
    • Manual Control: by Foot Pedal
    • Automatic Heating Time: 1-99 Seconds
    • Automatic Dwell Time: 1-99 Seconds
    • Automatic Cooling Time: 1-99 Seconds

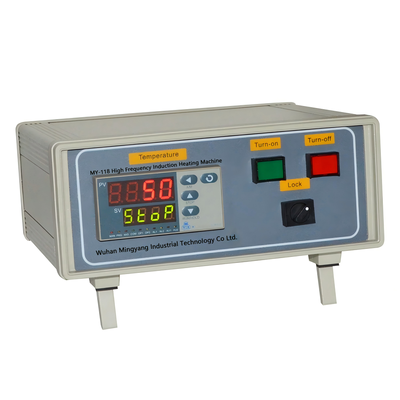

Temperature Control Optional

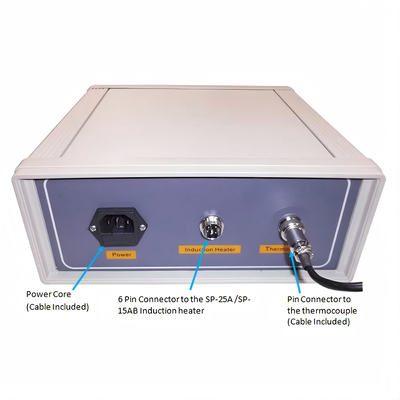

  • One temperature control port built-in back


Water Cooling

  • Flowrate: >10 L/Min
  • Pressure: ≥0.2 MPa (29 Psi)
  • Tap water is acceptable, but using a Recirculating Water Chiller is highly recommended.
  • Protection: Overpressure and over-temperature switch

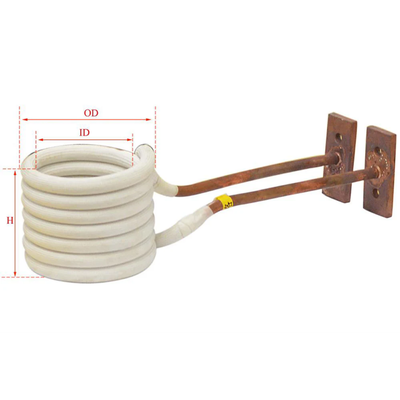

Induction Coil


2 pcs Induction Coil total,
  • 82mm(OD) x 65mm(ID) x 65mm(H)
  • 82mm(OD) x 65mm(ID) x 80mm(H)
Display
  • The digital display shows output power and current
Compliance
    • NRTL certification is available upon request at extra cost.

Application Notes

  • Applications:
  • The heater will shut down if over output occurs. Pls reduce coil cycle number to keep the heater operating under Max power
  • Melting time and temperature are related to materials, the crucible, refractory insulation, etc.

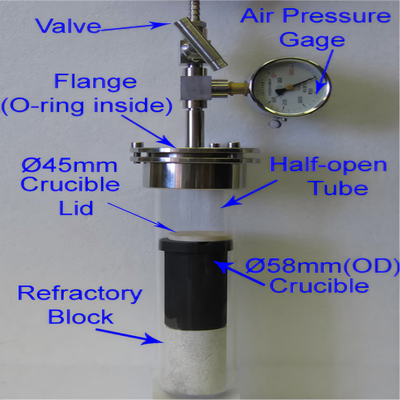

  • You may melt metal samples in a vacuum using a 60mm dia half-open quartz tube with a vacuum flange/valve.
Warning
  • To prevent internal circuitry damage:
    • Never allow the inductive current to exceed 800 A when the unit is in use.
    • The maximum time duration for running the unit at the 600~800 A working current range should not exceed 60 seconds.
Standard Package
Item Description Qty
1 Induction Heater Control Unit 1
2 Induction Heating Unit 1
3 Power Supply Cable (Plug is not included) 1
4 Control Cable  1
5 Coil: 82mm(OD) x 65mm(ID) x 65mm(H) 1
6 Coil: 82mm(OD) x 65mm(ID) x 80mm(H) 1
7 Foot Pedal with Cable 1
8 Water Cooling Fitting and clamp (Pipe is not included) 1 set
9 Fuses 4
10 Operation Manual 1
