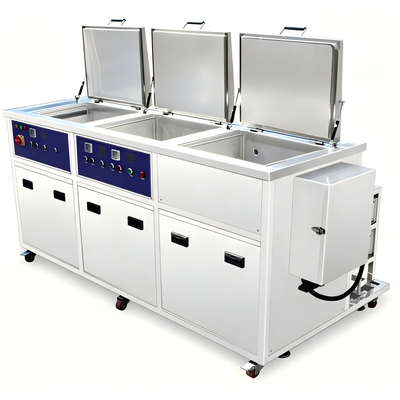

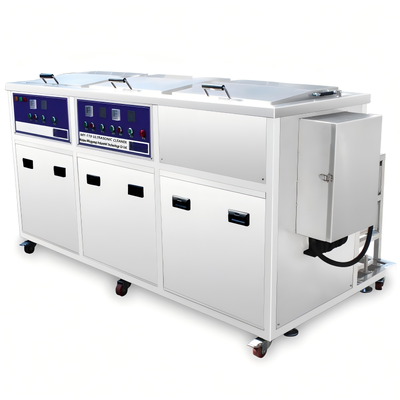

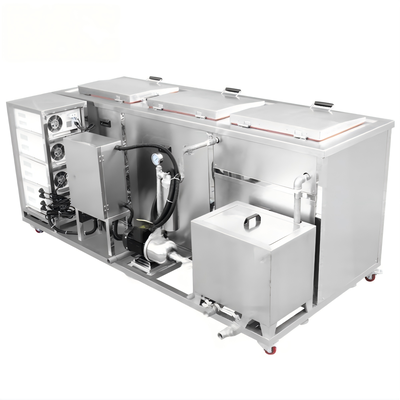

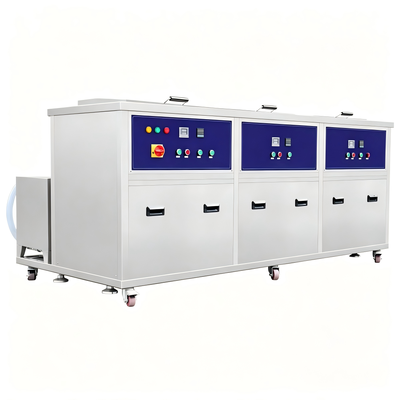

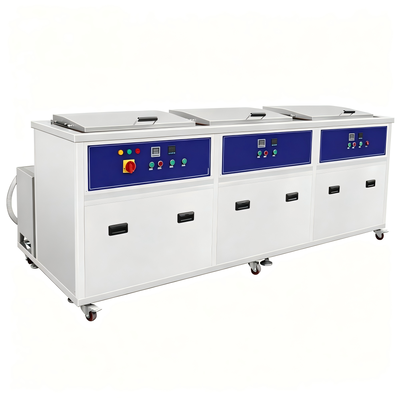

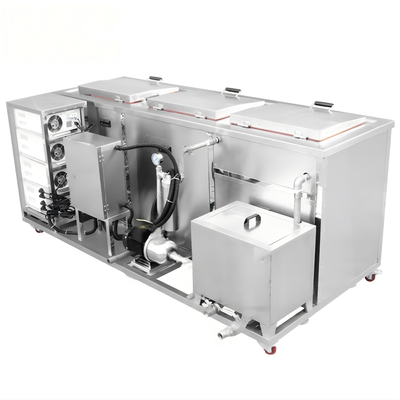

MY-119 Industrial Ultrasonic Parts Cleaning Machine Multi-Tank / Conveyor Type Customized Solution
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-119 |
| Minimum Order Quantity | 1 |
| Price | 15000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,Western Union,T/T,D/P |
| Supply Ability | 5000/Month |
Product Details
| Types | Automatic | Brand | MINGYANG |
|---|---|---|---|
| Origin | Hubei,China | Certification | CE,ROHS |
| Material | SUS304 Stainless Steel | Ultrasonic Frequency | 28kHz/40kHz |
| Temperature Range | 20-95℃ | Power Supply | 220V/380V/480V Industrial Voltage |
| Control System | PLC Automatic Control | Tank Volume Optional | 0.6L/0.75L/2L/3.2L/4.5L/6.5L/10L/15L/22L/30L |
| Customized | Support Tank Size & Function Customization | Application | Jewelry,Auto,Precision Hardware,PCB,Medical,Optical Parts Cleaning |
| Type | Electric Driven Ultrasonic Cleaning Machine | Timer Range | 1-99 Hours Adjustable |
| Monthly Output | 5000 Units |
Product Description
MY-119 Industrial Ultrasonic Parts Cleaning Machine Multi-Tank / Conveyor Type Customized Solution
Product Description
Specification details as follows:

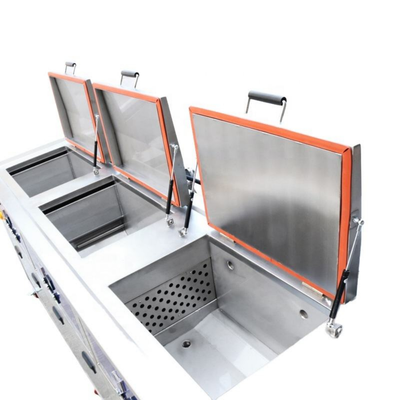

1. ) Ultrasonic Cleaning Tank:
Tank cleaning size 46" x 38" x 28" tall from top of included stainless steel work rest platform to top of tank. Tank actual size is approximately 48x40x32.
The ultrasonic cleaning tank includes a 7200 watts PEAK rod ultrasonic transducers.
Transducers are powered by 3 x ultrasonic generators featuring Sweep Frequency Circuit to minimize the production of standing waves, and capable of Automatic Load Compensation which increases power to the transducers with increasing tank loads.
Operating Frequency: 40 / 28kHz
Drain with ball valve and plugged fill ports included.
Heater System: Designed to maintain cleaning fluid temperature. Includes a 27KW immersion heater with digital temperature controller, and ceramic insulation. Adjustable temperature setting from 20~95 degree celsius.
Tank is equipped with a weir and filtration system and an oil skimmer.
2. ) Spray Wash Tank: Spray washes the parts as the parts are being lowered into the tank and spray washes the parts from the top to insure that no metal shavings are still attached unto the parts. Tank working size 44" x 38" x 26"
1 to 1.5 HP centrifuge Pump
3. ) Drying Tank: Heats parts to 100 Degrees Celsius to help drying the parts faster. Tank size 48" x 40" x 30".
heater PLC temperature controlled.
1. ) Ultrasonic Cleaning Tank:
Tank cleaning size 46" x 38" x 28" tall from top of included stainless steel work rest platform to top of tank. Tank actual size is approximately 48x40x32.
The ultrasonic cleaning tank includes a 7200 watts PEAK rod ultrasonic transducers.
Transducers are powered by 3 x ultrasonic generators featuring Sweep Frequency Circuit to minimize the production of standing waves, and capable of Automatic Load Compensation which increases power to the transducers with increasing tank loads.
Operating Frequency: 40 / 28kHz
Drain with ball valve and plugged fill ports included.
Heater System: Designed to maintain cleaning fluid temperature. Includes a 27KW immersion heater with digital temperature controller, and ceramic insulation. Adjustable temperature setting from 20~95 degree celsius.
Tank is equipped with a weir and filtration system and an oil skimmer.
2. ) Spray Wash Tank: Spray washes the parts as the parts are being lowered into the tank and spray washes the parts from the top to insure that no metal shavings are still attached unto the parts. Tank working size 44" x 38" x 26"
1 to 1.5 HP centrifuge Pump
3. ) Drying Tank: Heats parts to 100 Degrees Celsius to help drying the parts faster. Tank size 48" x 40" x 30".
heater PLC temperature controlled.
Basic Info.
Model NO.
MY-119
Automation
Semi-automatic
Cleaning Precision
Ultra-Precision Industrial Cleaning
Control
PLC
Principle
Physical Cleaning
Certification
CE
Condition
New
Customized
Customized
Feature
Clean Thoroughly
Material
Stainless Steel SUS304
Power Supply
Industrial Voltage Supply220V/380V/480V
Ultrasonic Frequency
40kHz/28kHz
Suit for
Utensil.Metal Parts, Car Parts, Automotives
Timer
1~99 Hours
Temperature
20~95 Degree Celsius
Machine Type
Electric Drive Cleaning Machine
Fuel
Electric
Clean Type
Manual
Cleaning Process
Solvent Cleaning
Transport Package
Carton Box
Specification
CE, ROHS
Trademark
MINGYANG
Origin
Hubei, China
HS Code
845620
Production Capacity
5000PCS/Month
Ultrasonic cleaning is a method based on high-frequency sound waves which when traveling into a solution, create oscillating high and low pressure and consequently, cause the rapid formation and imploding bubbles radiate tremendous amounts of ultrasonic energy and shock waves that penetrate into minute crevices to take off dirts or contaminants in a highly effective way.
Skymen double tanks ultrasound cleaner machine, skymen make multi stage unit for improving ultrasonic cleaning to reach perfect cleaningresult, design for commercial industry use. The rinsing tanks following ultrasonic tank and dryer tanks to dryer after rinsing, such asfor tank capacity of 50L, 100L, 150L, 200L or even bigger tank. Multi tanks with differentfunctions by each unit work together to approach maximum cleaning efficiency. For double tanks ultrasound cleaner: 1st ultrasonic cleaning tank2ND rinsing tank/drier tank after rinsing(or add a second rinsing tank for thorough rinsing)optional forextra rinse tank and dryer tank
Skymen double tanks ultrasound cleaner machine, skymen make multi stage unit for improving ultrasonic cleaning to reach perfect cleaningresult, design for commercial industry use. The rinsing tanks following ultrasonic tank and dryer tanks to dryer after rinsing, such asfor tank capacity of 50L, 100L, 150L, 200L or even bigger tank. Multi tanks with differentfunctions by each unit work together to approach maximum cleaning efficiency. For double tanks ultrasound cleaner: 1st ultrasonic cleaning tank2ND rinsing tank/drier tank after rinsing(or add a second rinsing tank for thorough rinsing)optional forextra rinse tank and dryer tank
Ultrasonic cleaning:
MINGYANG can also make 3 tanks, 4 tanks, 5 tanks big ultrasonic cleaner machine, and fully automatic ultrasonic cleaning machine.
MINGYANG related products:
0.6L, 0.75L, 2L, 3.2L, 4.5L, 6.5L, 10L, 15L, 22L, 30L
MINGYANG make rinsing tanks and dryer tanks to dryer after rinsing, such as for tank capacity of 50L,100L,150L,200L or even bigger tank. Multi tanks with different functions by each unit work together to approach maximum cleaning efficiency.
Industrial ultrasonic cleaning
FOR VARIOUS APPLICATIONS
Ultrasonic cleaning is widely usable in the industry. As well in a production surrounding as for many maintenance applications. This overview is only a selection out of the many industrial cleaning applications there are. Do you have focus on a certain application? Please let us know and we will be pleased to advice you further.
Cutting ware industry
Knifes, scissors, tweezers, etc
Electronic industry
CRTs, oscillating crystal, components made out of ceramic, glass or ferrite, relay mechanisms, semiconductors, photocopier drums, battery cells, data display devices, separation of faulty color CRTs, energy safety switches, cables, multi-layer condenser, electrolyte condensers, TV-masks, contact tools, measuring tools
Electroplating industry
Polished parts of all kind immediately prior to the electroplating process
Fine mechanical industry
Screws, bearings, parts of counting and measuring devices (also for power supply), electrical razor heads, pencil sharpener blades, ball pens, needles, sinter bearings, petrol pumps, pneumatic valves, measuring instruments, etc
Fitting industry
Armatures of all kind prior to the galvanizing process. Automobile industry: cylinder heads, injector tubes for diesel engines, injector pump cases, injectors, cylinder running surface, exhaust pipe, press filters, tools for precise measuring
Food industry
Plastic transportation kits for bottles, cookies, meat, mushrooms, vegetables, fish, etc
Glass industries
Glasses, bowls, bottles, lamps, curettes, mirrors, glass pipes
Glasses manufacturers
Glasses, frames and joints
Hospitals
Surgical instruments
MINGYANG can also make 3 tanks, 4 tanks, 5 tanks big ultrasonic cleaner machine, and fully automatic ultrasonic cleaning machine.
MINGYANG related products:
0.6L, 0.75L, 2L, 3.2L, 4.5L, 6.5L, 10L, 15L, 22L, 30L
| Industry | Cleaning objects |
| jewelry | Jewelry, diamond, gold, silver products, |
| machinery | Moulds, precision parts, pressing parts, camera parts, bearing, hardware tools |
| electronics | PCB board, electronic parts, TV parts, computer parts |
| Auto industry | engine parts, gear box, shock absorber, auto nozzle, cylinder, valve |
| Dental& Medical | dental tools, medical tools, injector, surgery tools, dropper, glass container |
| Plating& painting | polishing parts, SUS cutter, tableware, plating |
| Food industry | Oven tray, boiler, bottles, bottle cap, filters |
| Optical& watch maker | optical lens, eyeglass, sunglass, metal, gold, jewelry, diamond, watch band, watch cover, watch hand |
| textile | spinneret plate, rubber parts, plastic molds, toy |
| others | seal, flapper, coins, pottery, bank card, IGBT |
MINGYANG make rinsing tanks and dryer tanks to dryer after rinsing, such as for tank capacity of 50L,100L,150L,200L or even bigger tank. Multi tanks with different functions by each unit work together to approach maximum cleaning efficiency.
Industrial ultrasonic cleaning
FOR VARIOUS APPLICATIONS
Ultrasonic cleaning is widely usable in the industry. As well in a production surrounding as for many maintenance applications. This overview is only a selection out of the many industrial cleaning applications there are. Do you have focus on a certain application? Please let us know and we will be pleased to advice you further.
Cutting ware industry
Knifes, scissors, tweezers, etc
Electronic industry
CRTs, oscillating crystal, components made out of ceramic, glass or ferrite, relay mechanisms, semiconductors, photocopier drums, battery cells, data display devices, separation of faulty color CRTs, energy safety switches, cables, multi-layer condenser, electrolyte condensers, TV-masks, contact tools, measuring tools
Electroplating industry
Polished parts of all kind immediately prior to the electroplating process
Fine mechanical industry
Screws, bearings, parts of counting and measuring devices (also for power supply), electrical razor heads, pencil sharpener blades, ball pens, needles, sinter bearings, petrol pumps, pneumatic valves, measuring instruments, etc
Fitting industry
Armatures of all kind prior to the galvanizing process. Automobile industry: cylinder heads, injector tubes for diesel engines, injector pump cases, injectors, cylinder running surface, exhaust pipe, press filters, tools for precise measuring
Food industry
Plastic transportation kits for bottles, cookies, meat, mushrooms, vegetables, fish, etc
Glass industries
Glasses, bowls, bottles, lamps, curettes, mirrors, glass pipes
Glasses manufacturers
Glasses, frames and joints
Hospitals
Surgical instruments
