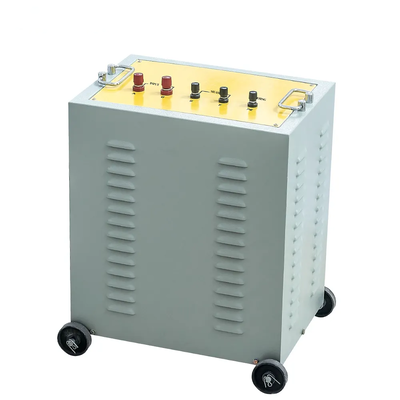

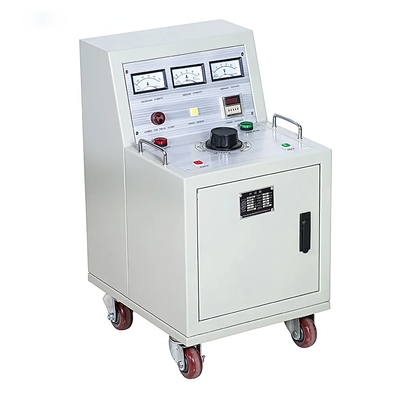

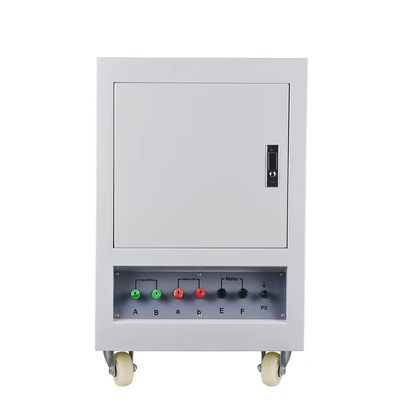

High Precision Primary Injection Test Set, 220V Supply for Circuit Breaker & Protective Relay Testing

1.High Current Output: Provides stable AC/DC current up to 10000A
2.Intelligent Control: Digital interface allows precise parameter adjustment and automatic system protection
3.Portable Application: Compact design suitable for field and laboratory testing
4.Comprehensive Testing: Verifies the performance of circuit breakers, relays, instrument transformers, and other devices
5.Safety and Compliance: Complies with international electrical testing standards (such as IEC)

Question 1: Device fails to power on / No display after startup
Customer: After connecting to the 220V supply and pressing the power button, the device has no response and the display stays off. What causes this?
Manufacturer: Check the input power connection first. Confirm the 220V supply is normal and the power cord is firmly plugged. Verify the internal fuse is intact. If the problem persists, do not open the cabinet for self-repair and contact technical support.
Question 2: Output current cannot reach preset value
Customer: During the test, the actual output current cannot rise to the set value and is much lower than the rated current. What causes this?
Manufacturer: Check the test loop for excessive impedance first. Use test cables with sufficient cross-section and tighten all connecting terminals. Confirm the tested load is within the device's rated output range. Shorten test cables appropriately to reduce line loss.
Question 3: Output shuts off suddenly during testing
Customer: The device suddenly cuts off current output and enters protection mode in the middle of the test. What causes this?
Manufacturer: This is usually triggered by overcurrent or over-temperature protection. Check if the test loop is short-circuited or the load is overloaded. Shut down the device for 10-15 minutes to cool down, restart after troubleshooting. Avoid long-time overload operation.
Question 4: Circuit breaker does not trip during test
Customer: When testing circuit breakers, the output current reaches the set value but the breaker does not trip. What causes this?
Manufacturer: Check the current loop connection first. Confirm the loop has no open circuit and the current setting matches the breaker's tripping characteristics. Check for poor terminal contact that causes excessive voltage drop. Retest after replacing test wiring if necessary.
Question 5: Output current fluctuates unstably
Customer: The output current fluctuates obviously during the test and cannot remain stable at the preset value. How to solve this?
Manufacturer: Check all wiring terminals are firmly connected without looseness first. Keep the device away from strong electromagnetic interference on site. Ensure the device finishes warm-up before formal testing. If fluctuation still exists, contact us for calibration guidance.

Question 6: Shipping Method
Customer: If we place an order, how do you typically ship the goods? Will there be any issues with transporting bulky items such as reactors?
Manufacturer: We default to using dedicated logistics lines or brand-specific express shipping services; small-sized main units and accessories may also be shipped via standard courier services. Large items, such as reactors and excitation transformers, are packed using wooden crates or wooden frames for reinforcement to prevent bumps and moisture exposure during transit; a packing list is included with each package to facilitate item-by-item counting for you. Logistics costs are typically determined by both parties in accordance with the contract terms; after shipment, we will send you both the tracking number and the carrier's contact phone number for easy tracking.If your project site is remote or if delivery to the site is required with a specified logistics company, please inform us in advance when placing your order; we can then coordinate and arrange accordingly.
Question 7: Delivery Lead Time
Customer: Our project is under tight deadlines; how long will it take for the order to be shipped after we place it? Can we request expedited shipping?
Manufacturer: Standard specifications – stock available; typically delivered upon receipt of the order. Orders can be shipped within [X] working days; for non-standard products requiring customized voltage levels, capacities, or reactor combination configurations, the production cycle typically ranges from [X] to [Y] days.The delivery time will be approximately 7-15 working days; the specific timeline shall be subject to the sales confirmation provided upon order placement. If your project has a tight schedule, please inform us of the latest expected delivery date before placing your order; we will first verify the production schedule and inventory status, and where possible, will coordinate expedited production and prioritize shipment. However, it is recommended to allocate sufficient transit time for logistics to avoid delaying on-site testing.
Question 8: After-sales Service and Warranty
Customer: What is the warranty period for this equipment? If any issues arise during on-site use, how will your after-sales service respond?
Manufacturer: We provide a two-year free warranty on the entire unit and lifelong technical support services. During the warranty period, if issues arise due to defects in the equipment itself, we will provide free repair or replacement of components; when problems occur on-site, we commit to responding within 24 hours; most wiring and parameter configuration issues can be resolved through remote guidance via video or telephone; for cases where an on-site visit is necessary, we will arrange for our technicians to arrive at the location to resolve the issue. After the warranty period expires, we still offer repair services, with spare parts supplied at cost price for the long term, and software updates provided free of charge for life. Upon delivery of the equipment, we also offer free operational training (video operation guides)to ensure that your testing personnel can operate the equipment independently and proficiently; should you have any further questions, please feel free to contact our dedicated after-sales hotline directly.
Question 9: Shipping methods for each region (Sea freight)
Customer: Our projects are distributed across several states, and our procurement volumes are substantial; are the shipping methods consistent across all states? How is the delivery time calculated?
Manufacturer: The specifications are identical; however, it should be specifically noted that this equipment set is large in size and heavy in weight—components such as the reactor and excitation transformer are all classified as heavy components. Therefore, regardless of which state or region the shipment is destined for, we will uniformly utilize sea freight transportation. The packaging employs export-grade wooden crates with reinforced structures, along with moisture-proof and rust-proof treatments; the design of these wooden crates is optimized for long-distance sea transport and multiple lifting and transshipment operations. Upon arrival at the destination, simply unpack the goods and conduct an inspection before putting them into use. Regarding delivery time, the sea freight transit period depends on the port of destination: near-sea routes are generally faster, whereas ocean routes may take longer; the exact number of days will be confirmed based on the shipping schedule specified in the bill of lading. We have a dedicated freight forwarding agency to handle booking of shipping space, customs declaration, insurance, and other related procedures; once the vessel departs, we will send you documents such as the bill of lading and the packing list, enabling you to arrange for the receipt of goods at the port of destination and their inland transshipment in advance
