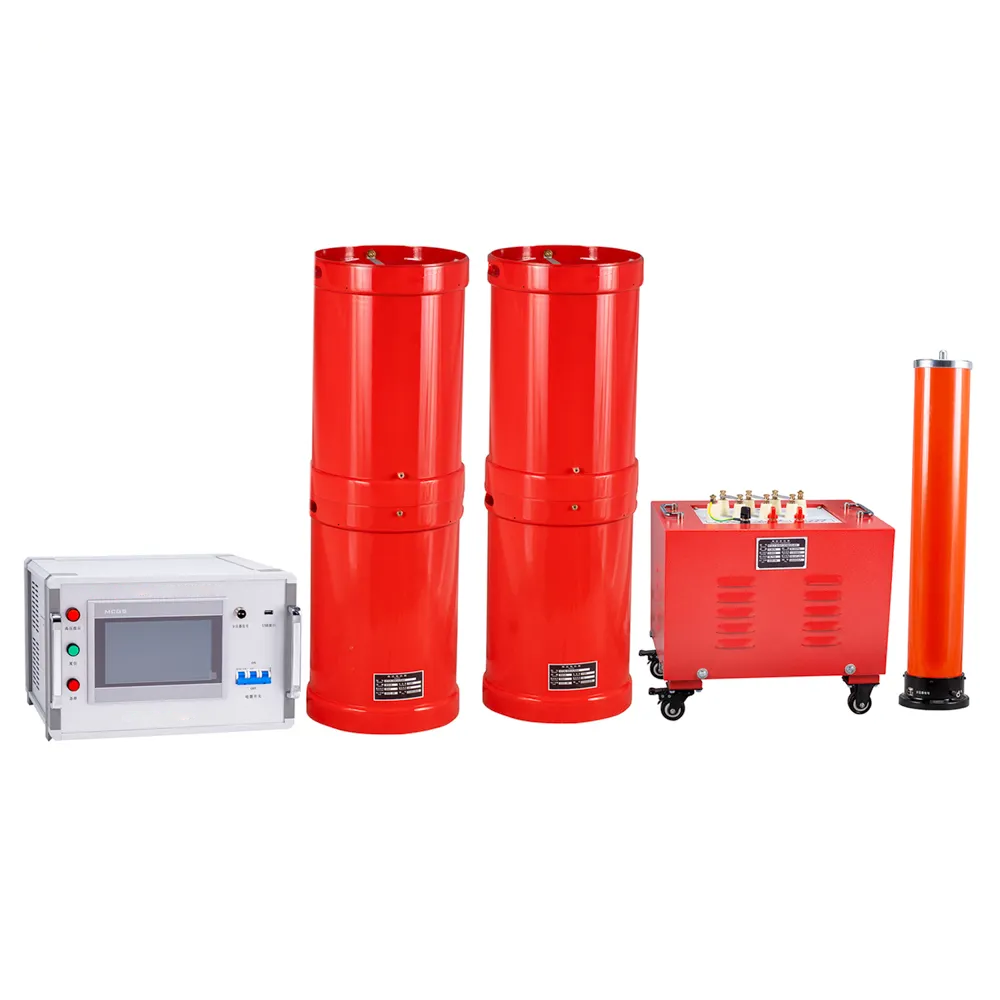

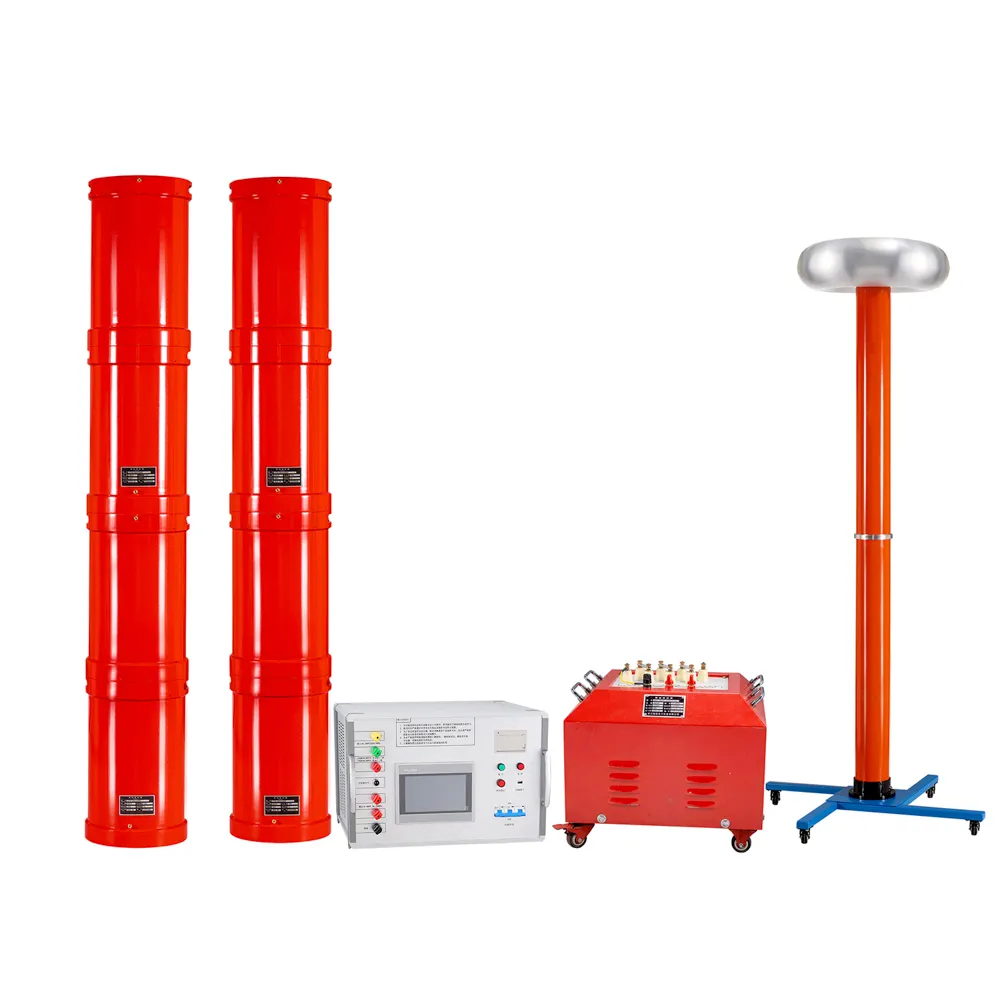

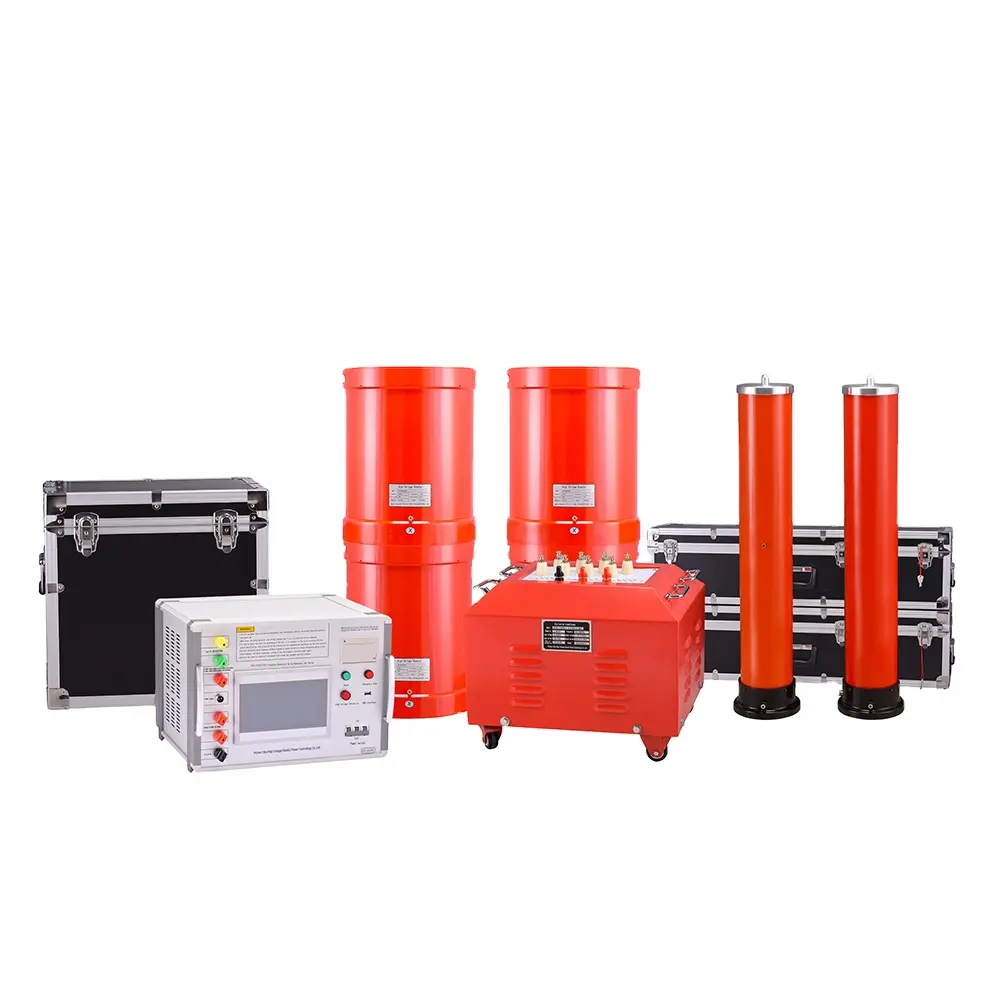

300kV Series Resonant AC Hipot Tester Automatic Tuning For Power Equipment
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYMT |
| Minimum Order Quantity | 1 |
| Price | 6000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Accuracy Class | High Accuracy |
|---|---|---|---|
| Protection Class | IP65 | Customized Support | OEM, ODM, OBM, Software Reengineering |
| Application | Auto Testing, Electrical Testing | Voltage | 380 V, 220 V |
| Warranty | 2 Years | Power | 300W |
| Place Of Origin | Hubei, China | Output Current AC | 0~20A |
| Utmost Output Capacity | 3*300VA | Display | Three And Half Digital Display, Accuracy: 1.5% |
| Three Phase Coarse Tuning | 0°~360°, 300 Phase Shifting Each Step. | Temperature Rise | < 60℃ |
| Insulation Resistance | No Less Than 22MΩ | Accuracy | ±1% |
| Phase Of Output | Single-phase | Max. Output Current | 1A Single Piece (could Be Customized) |
| Regulating Range Of Frequency | 30Hz-300Hz | Max. Output Voltage | 300kV (could Be Customized) |
| Insulation Level | Under 1.1 Times And Keeping 1 Min, Normal | Noise Level | No More Than 65dB |
| Highlight | 300kV hipot tester,Power Equipment hipot tester,IP65 hipot test equipment |
||
Product Description
Series Resonant AC Hipot Test Equipment for Condition Assessment of Aging Power Transformers in Utility
Product Features
- High stability and reliability with stable voltage and frequency output, reasonable electromagnetic compatibility design, comprehensive protection systems, and strong overload capacity
- Powerful automatic tuning function with auto-scanning from 30Hz to 300Hz, displaying scanning curves and accurately locking resonant frequencies with 0.01Hz resolution
- Multiple test modes including automatic tuning + manual voltage regulation, automatic tuning + automatic voltage regulation, and manual tuning + manual voltage regulation
- User-friendly interface with parameter setting, test control, and results display on a single screen, featuring auto-timing, operation indicators, and data storage capabilities
- Comprehensive protection functions including zero position protection, over-voltage protection, over-current protection, and flashover protection
Product Parameters
| Rated Input Voltage | 380V ± 10% (three-phase), 50Hz or 60Hz |
|---|---|
| Rated Output Capacity | 300kVA |
| Maximum Output Voltage | 300kV |
| Maximum Output Current | 1A single piece |
| Frequency Regulation Range | 30Hz - 300Hz |
| Insulation Level | Under 1.1 times and keeping 1 min, normal |
| Allowable Running Time (Duty Cycle) | Continuous running for 60 mins on, 120 mins off |
| Quality Factor for System Itself | Q ≥ 50 (at F=30Hz) |
| System Measuring Accuracy | Grade 1.0 effective value |
