Full Automatic Oil Tan Delta Analyzer Capacitance Test Kit Dielectric Loss Tangent Measurement
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYJS-H |
| Minimum Order Quantity | 1 |
| Price | 3400usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Measuring Range | 1-1999μΩ | Accuracy Class | 0.5% |
|---|---|---|---|
| Operating Temperature | -10℃~40℃ | Time Resolution | 1s |
| Current Resolutio | 1μΩ | Place Of Origin | Hubei, China |
| Resolution | 1μΩ | Measurement Accuracy | 0.5% |
| Measurement Range | 1-1999μΩ | Working Power Supply | AC220V ± 10%, 50Hz ± 1Hz |
| Weight | 22kg | Display Mode | Three-and-a-half-digit LCD |
| Volume | 380*350*260 Mm | Warranty | 2 Year |
| Voltage | Other | Customized Support | OEM |
| Place Of Origin | Hebei, China | Temperature Range | Room Temperature~125 |
| Dielectric Loss Test Range | 0.00001~1 | Relative Dielectric Constant | ± (indicating Value*0.5%+0.1) |
| Resistive Test Range | 2.5MΩ M~20TΩ M | Boundary Dimension | 470*425*385 |
| Power Supply | 500W | Resistivity Resolution | 0.001MΩ M |
| Voltage Range | 0~2000 V AC; 0~500 V DC | ||
| Highlight | Full Automatic delta analyzer,500W delta analyzer,500W delta analyzers |
||
Product Description

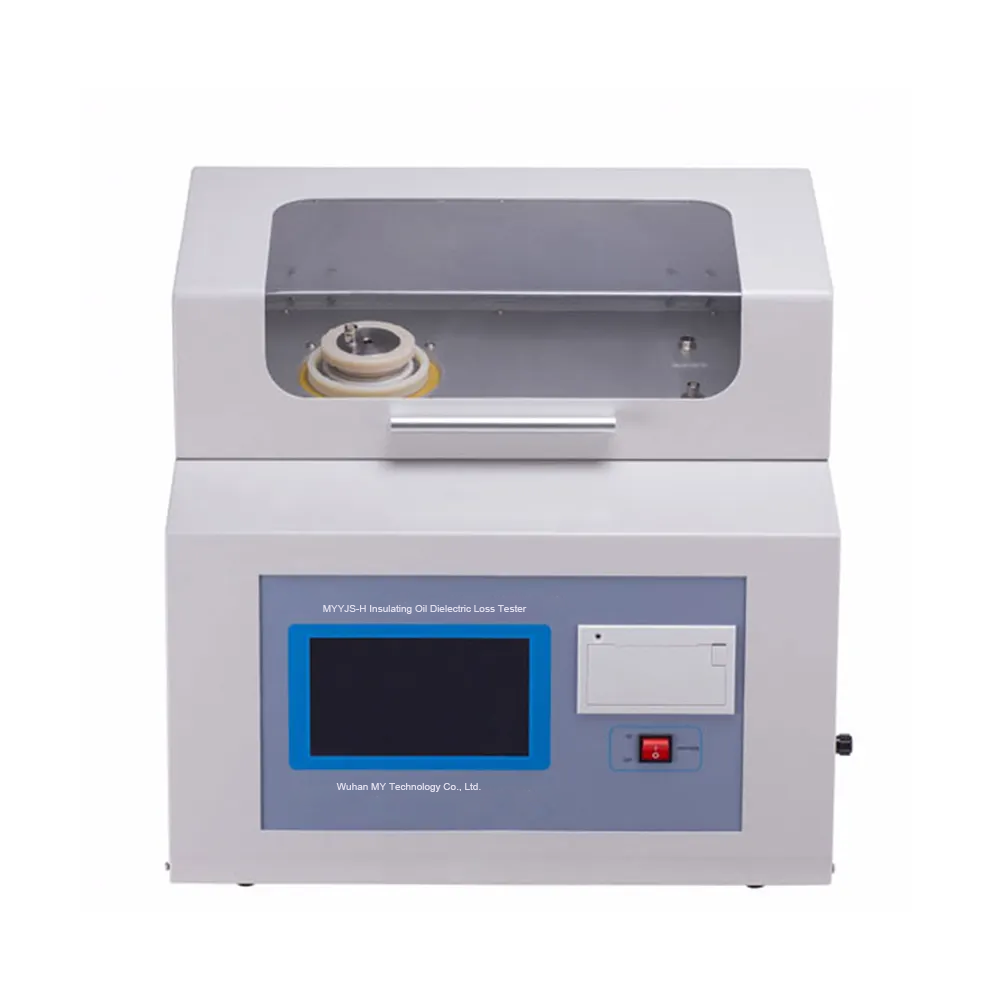

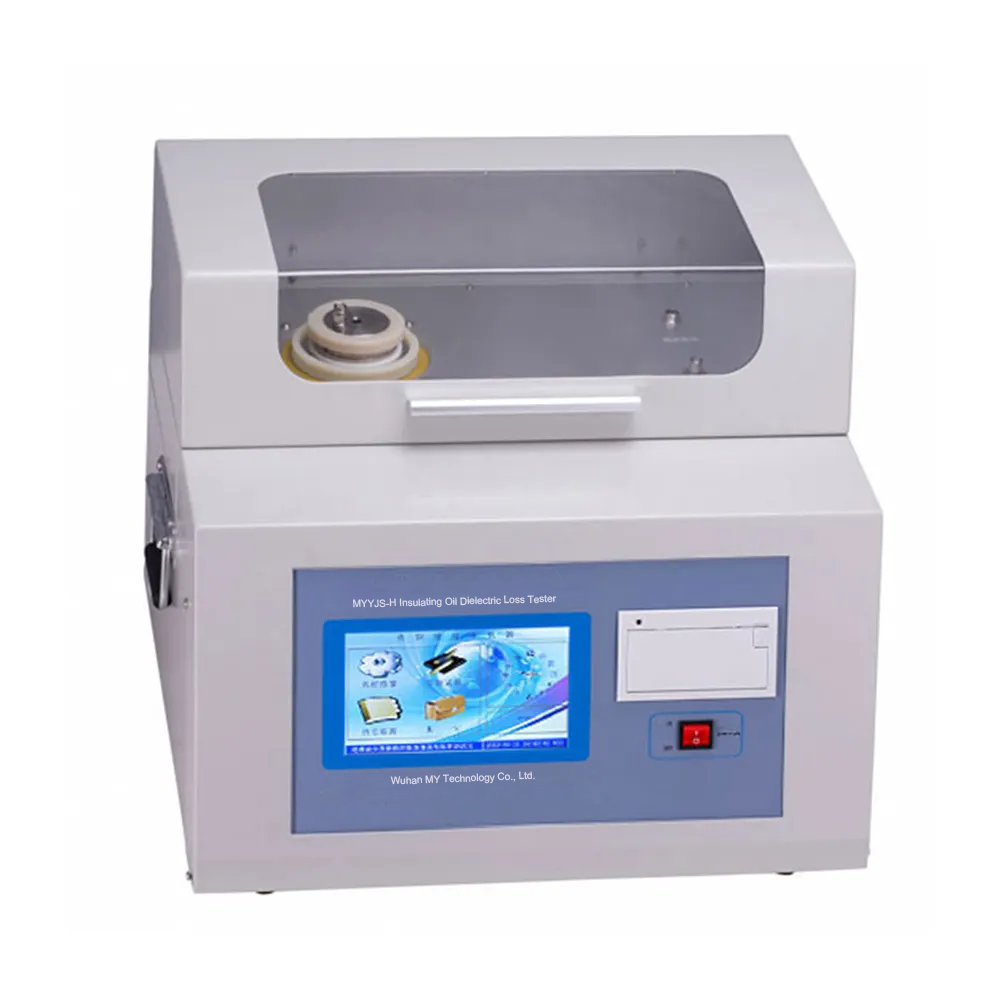

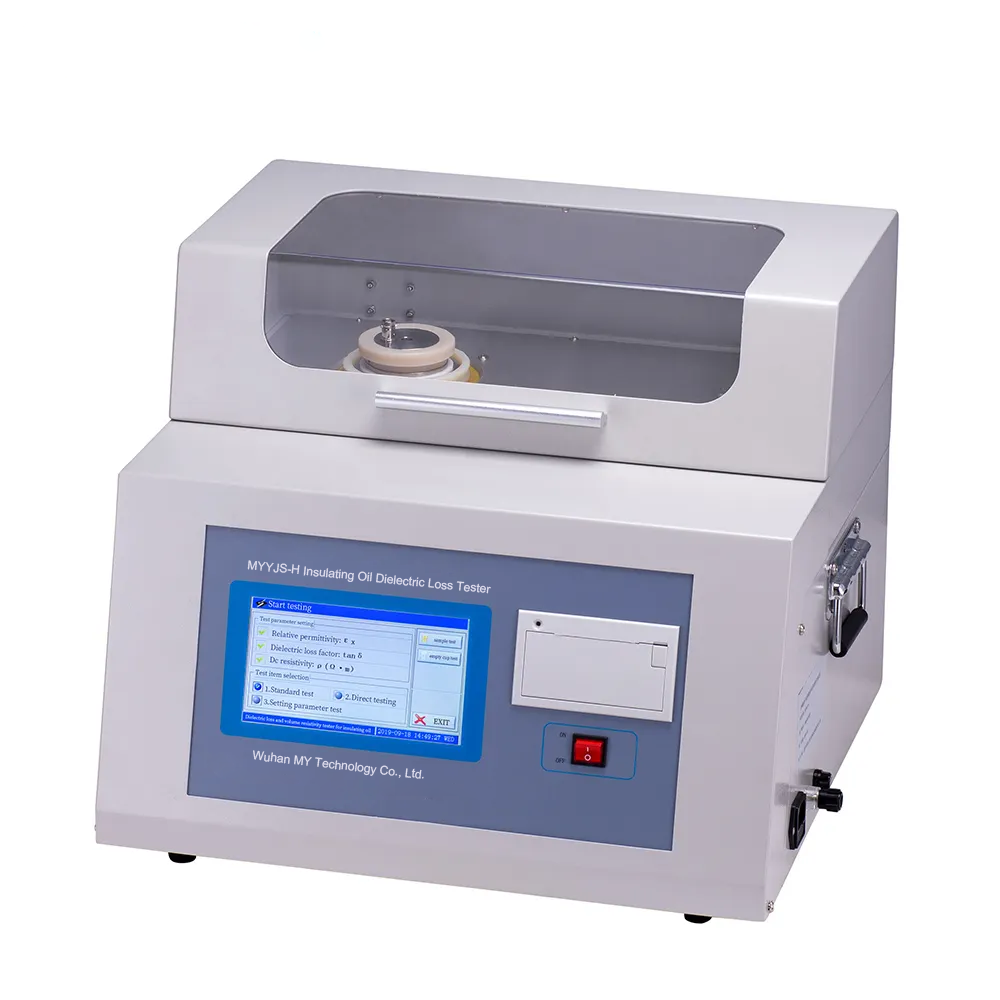

Full Automatic Oil Tan Delta Analyzer Capacitance Test Kit
Professional dielectric loss tangent measurement system for comprehensive oil analysis and capacitance testing.
Technical Specifications
| Test voltage range | 0~2000VAC | 0~500VDC |
|---|---|
| Test temperature range | Room temp~125℃ |
| Dielectric loss test range | 0.00001~1 |
| Measurement accuracy | ±(indicating value×0.5%+0.0001) |
| Relative dielectric constant | ±(indicating value×0.5%+0.1) |
| Resistivity resolution | 0.001MΩ*m |
| Resistive test range | 2.5MΩ*m~20TΩ*m |
| Power | 500W |
| Supply voltage | AC220V±22V |
| Working Condition | Environmental temperature: 0℃~+40℃ Relative humidity: ≤75%RH |
| Weight and Dimension | Instrument dimension: 470×425×385 Weight: 22kg |
Key Features
- Integrated design with oil cell, heating, temperature control and voltage regulating functions
- Fixed electrode cup with automated oil filling, discharging and washing via solenoid valve control
- Empty cup self-calibration capability
- Comprehensive protection with over-voltage, over-current and temperature limitation
- Medium frequency induction heating for uniform and rapid heating
- Direct temperature measurement with internal probe placement
- Built-in sine-wave generator and high power digital voltage regulator
- Advanced anti-jamming technology for reliable test results
- High-grade materials for superior stability and repeatability
- Standardized testing with customizable modes for user convenience
- Large colorful touch screen with automated testing and user-friendly operation
- Data storage function for convenient access to historical data
- Integrated electronics with short circuit and over current protection
- Built-in self-checking functionality
