0.1 Class Accuracy High Current Primary Injection Tester for Relay and Circuit Breaker Calibration
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-DDG |
| Minimum Order Quantity | 1 |
| Price | 1600usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Warranty | 2 Years |
|---|---|---|---|
| Voltage | 220V Electrical Equipment | Application | Auto Testing |
| Protection Class | IP55 | Customized Support | OEM, ODM, OBM, Software Reengineering |
| Accuracy | 0.1 | Impedance Voltage% | >8 |
| Working Environment | 0-50℃, ≤85%RH | Weight | 45kg |
| Rating Input Of Converter | 220V 13.6A | ||
| Highlight | 0.1 class accuracy primary injection tester,high current circuit breaker analyzer,relay calibration injection tester |
||
Product Description
0.1 Class Accuracy High Current Primary Injection Tester for Relay and Circuit Breaker Calibration
This primary current injection test system is designed for high current applications in power systems, laboratories, and various departments. As a short-term or intermittent work device, it features compact size, lightweight construction, excellent performance, and easy operation and maintenance. This essential electrical debugging equipment generates high current and is widely used in power plants, power distribution stations, electrical factories, research facilities, and laboratories.
System Overview
This versatile test system serves power plants, power distribution stations, electrical factories, research institutions, and laboratory environments. Designed for short-term or intermittent operation, it combines compact dimensions with lightweight construction while delivering reliable performance and straightforward operation and maintenance procedures.
Basic Info.
Model NO.
MY-DDG
Capacity
3-60kVA
Secondary V2
6
Secondary A2
500-10000
Weight
45-200kg
Structure Style
Integrated(<4000) Split(>4000)
Type
MY-Ddg
Power Source
AC220V
Power Supply
AC: 220V± 10%· 25A, 50Hz/60Hz
Resolution
0.1A
Accuracy
± 0.5%
Certificate
Ce/ISO
Colour
White
Transport Package
Wooden Case or Carton
Specification
see details
Trademark
MINGYANG
Origin
Hubei,China
HS Code
9031200090
Production Capacity
200 Sets Per Month
Key Features
- Dual ammeters for monitoring different measurement ranges
- Freely adjustable auto transformer for precise current control
- Integrated indicator lighting and buttons for simplified operation

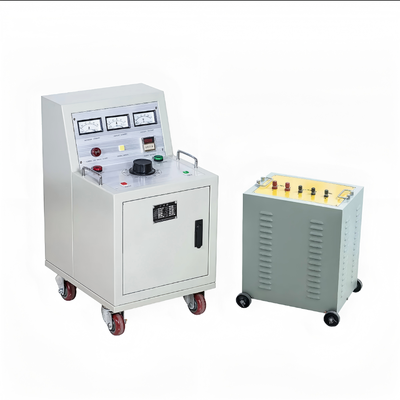

- Modular incorporated and dividable structure for easy transportation
Product Parameters
The equipment capacity is designed based on 5-minute short-term work system. For intermittent work, working time should be less than 2.5 minutes, before continuing to work it should be shut down for 10 minutes so that all parts of the machine can cool down. Specifications and technical parameters as follows:
| Model | Capacity (KVA) | Primary | Secondary | dimensions (mm) | Weight ( kg) |
Structure Style | ||
| V1 | A1 | V2 | A2 | |||||
| MY-500 | 3 | 220 | 15 | 6 | 500 | 430×338×550 | 45 | Integrated |
| MY-1000 | 6 | 220 | 27 | 6 | 1000 | 500×380×600 | 65 | Integrated |
| MY- 2000 | 12 | 380 | 31.6 | 6 | 2000 | 580×400×750 | 105 | Integrated |
| MY- 2500 | 15 | 380 | 39.5 | 6 | 2500 | 600×430×790 | 145 | Integrated |
| MY- 4000 | 24 | 380 | 63 | 6 | 4000 | 640×450×820 | 180 | Integrated/ split |
| MY- 5000 | 30 | 380 | 79 | 6 | 5000 | 600×430×900 300×500×500 |
145 135 |
Split |
| MY- 6000 | 36 | 380 | 95 | 6 | 6000 | 600×430×900 300×500×500 |
150 140 |
Split |
| MY- 8000 | 48 | 380 | 126 | 6 | 8000 | 600×450×950 350×550×550 |
180 | Split |
| MY- 10000 | 60 | 380 | 158 | 6 | 10000 | 800×600×1100 380×550×600 |
200 | Split |
Product Images

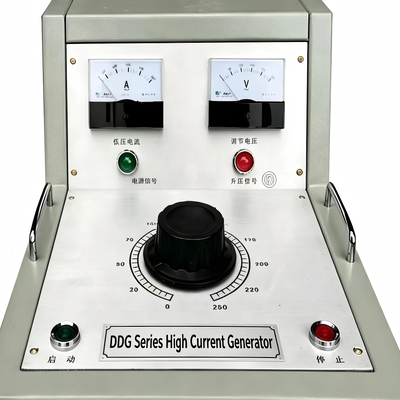

Dxplaination of the structure of the high-current generator: 1. Activation. 2. Power signal indicator. 3. Current meter. 4. Voltage meter. 5. Boost signal. 6. Stop button. 7. Voltage input terminal. 8. Grounding terminal.
