MY-108 Automatic Frequency Conversion Anti-interference 10kV Transformer Dielectric Loss Tester Tan Delta Test Equipment for CVT Capacitor
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-108 |
| Minimum Order Quantity | 1 |
| Price | 3500usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Supply Ability | 100/Month |
Product Details
| Types | Automatic | Brand | MINGYANG |
|---|---|---|---|
| Weight (Main Unit) | 25.75kg | Weight (Accessory Box) | 33.44kg |
| Dimensions (Main Unit) | 40cm29cm33cm | Dimensions (Accessories) | 45cm33cm15cm |
| Transport Package | Wooden Box | Type | Electric Testing Machine |
| Load Way | Electronic Load | Control | Manual Control |
| Power Source | AC220V ±10% | Self-Excited Power Supply | AC 0V-50V/40A |
| Capacity | 2000VA | Maximum Current | 200mA |
Product Description
MY-108 Automatic Frequency Conversion Anti-interference 10kV Transformer Dielectric Loss Tester Tan Delta Test Equipment for CVT Capacitor
Product Description

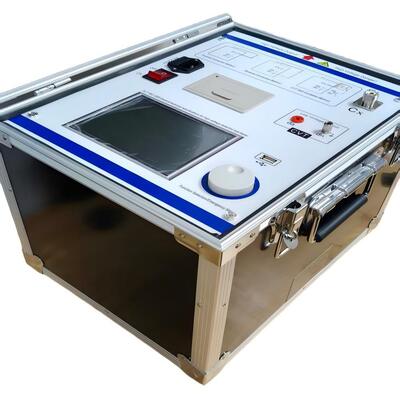

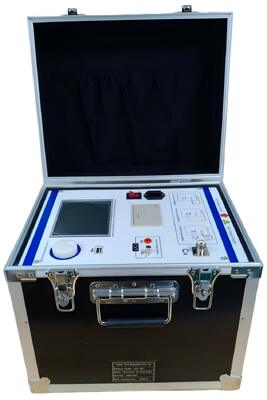

MY-108 automatic dielectric loss tester is a high-precision measuring device, especially suitable for on-site environments such as power plants and substations. It can measure the dielectric loss tangent (tg δ) and capacitance value (Cx) of various insulation materials, insulation sleeves, power cables, capacitors, transformers, and other high-voltage equipment on site under high frequency voltage.
Basic Info.
Model NO.
MY-108
Type
Electric Testing Machine
Accuracy Grade
2%
Load Way
Electronic Load
Display
Digital
Control
Manual Control
Weight
59kg
Power Source
AC220V
Product Name
Transformer Dielectric Loss Tester
Operating Conditions
-15°c - 40°c, Rh < 80%
Anti-Interference Principle
Frequency Conversion Method
High Voltage Output
0.5kv - 10kv, 0.1kv Increments
Maximum Current
200mA
Capacity
2000va
Self-Excited Power Supply
AC 0V - 50V/40A
Resolution
Tg: 0.001% Cx: 0.001PF
Accuracy
Tg: ±(Reading*1.0%+0.040%) Cx: ±(Rea
Transport Package
Wooden Box
Specification
40cm*29cm*33cm
Trademark
MINGYANG
Origin
Hubei, China
Feature of MY-108 automatic dielectric loss tester
1. The instrument supports self-excitation testing of CVTs, allowing for simultaneous measurement of capacitance and tgδ of C1 and C2 with a single wiring connection.
2. It features low-voltage and high-voltage reverse-wiring shielding. When the CVT busbar is grounded, 10kV reverse-wiring dielectric loss measurement of C11 can be performed without disconnecting the wires.
3. It also features measurement of applied voltage and applied CN.
4. It also features CVT ratio measurement, meeting requirements for CVTs rated from 35-500 kV.
5. It also features multi-channel simultaneous measurement, enabling simultaneous measurement of dielectric loss values for four test units.
6. It also features insulation resistance testing, enabling polarization index, absorption ratio, and insulation resistance testing.
7. It also features automatic LCR measurement, enabling measurement of inductance, capacitance, and resistance.
8. It utilizes frequency conversion technology to eliminate 50Hz power frequency interference, ensuring reliable measurement data even in environments with strong electromagnetic interference.
9. It also features overcurrent protection, ensuring the instrument is protected from damage in the event of a short circuit or breakdown of the test unit.
10. It includes standard capacitors and a high-voltage power supply for convenient on-site testing and reduced wiring.

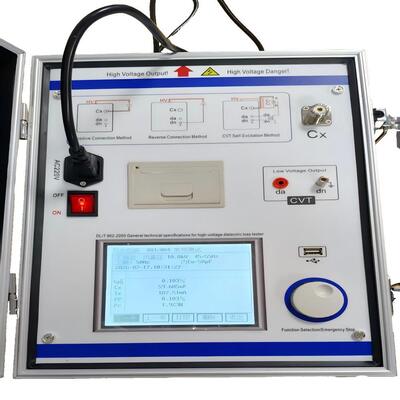

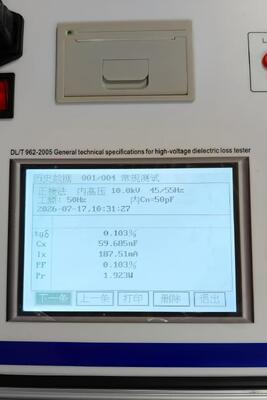

11. The instrument uses a large-screen LCD display and is easy to operate. Comes with English programs.
| MY-108 Transformer Dielectric Loss Tester | ||
| Operating Conditions | -15°C - 40°C | RH < 80% |
| Anti-interference Principle | Frequency conversion method | |
|
Power Supply
|
AC 220V ±10% | Generators permitted |
| High Voltage Output
|
0.5kV - 10kV | 0.1kV increments |
|
Accuracy
|
2% | |
|
Maximum Current
|
200mA | |
| Capacity | 2000VA | |
| Self-excited Power Supply | AC 0V - 50V/40A | Single Frequency: 45.0Hz to 65.0Hz, adjustable
Dual Frequency:
45.0Hz/55.0Hz, 47.5Hz/52.5Hz,
55.0Hz/65.0Hz, 57.5Hz/62.5Hz |
| Resolution | tgδ: 0.001% | Cx: 0.001pF |
| Accuracy | △tgδ: ±(reading*1.0%+0.040%) | |
| △Cx: ±(reading*1.0%+1.00pF) | ||
| Measurement Range | tgδ | Unlimited |
| Cx | 15pF < Cx < 300nF | |
| 10kV: Cx = (Cx1+Cx2+Cx3+Cx4) < 60nF | ||
| 5kV: Cx = (Cx1+Cx2+Cx3+Cx4) < 150nF | ||
| 1kV: Cx = (Cx1+Cx2+Cx3+Cx4) < 300nF | ||
| CVT Test | Cx = (Cx1+Cx2+Cx3+Cx4) < 300nF | |
| LCR Measurement Range | Inductance L > 20H (2kV) | Resistance R > 10kΩ (2kV) |
| LCR Measurement Accuracy | 1% | Angle Resolution: 0.01 |
| CVT Ratio Range | 10-10000 | Phase Measurement Range: 0-359.999° |
| CVT Ratio Accuracy | 1% | CVT Ratio Resolution: 0.01 |
| Dimensions (Main Unit) (mm) | 40cm*29cm*33cm | |

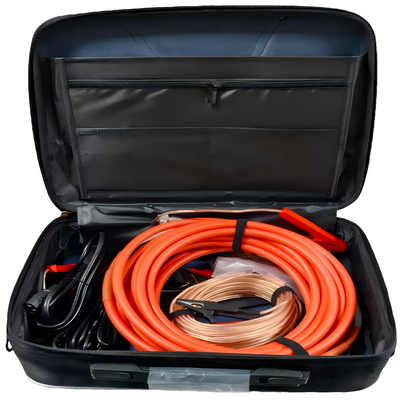

| Dimensions (Accessories) (mm) | 45cm*33cm*15cm | |
| Memory | 200 data sets, supports USB flash drive storage | |
| Weight (Main Unit) | 25.75kg | |
| Weight (Accessory Box) | 33.44kg | |
