Compact SF6 Gas Recovery Vacuum Machine With Bottle Filling For Test Machine Device
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-VT |
| Minimum Order Quantity | 1 |
| Price | 1200usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Voltage | 220V Electrical Equipment, 110 V |
|---|---|---|---|
| Place Of Origin | Hebei, China | Power | Electric |
| Warranty | 2 YEARS | Dew Point Accuracy | ±1℃(-60℃~+20℃) |
| Detecting Gas | Hydrogen Sulfide | Protection Class | IP55 |
| Accuracy | Other | Ambient Temperature | -40℃~+60℃ |
| Ambient Humidity | 0~100% RH | ||
| Highlight | Gas Recovery sf6 analyzer,IP55 sf6 analyzer,electric sf6 analyser |
||
Product Description

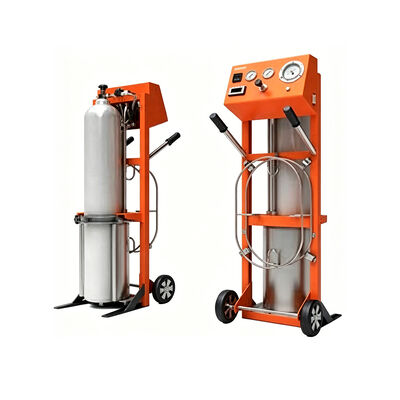

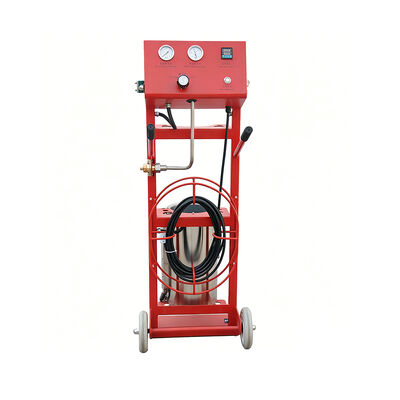

Compact Design SF6 Gas Recovery Vacuum Machine with Bottle Filling
A specialized vacuum machine designed for SF6 gas recovery and cylinder filling operations for test machine devices, featuring compact design and integrated weighing capabilities.
Technical Parameters & Functional Characteristics
- Dimensions: 620 * 580 * 1360 mm
- Weight: 60 kg (excluding steel cylinder)
- Power Supply: AC220V, 50HZ
- Power: 200W
- Type: Hand push operation
- SF6 cylinder inflation capability for gas chambers
- Integrated weighing system with real-time SF6 gas weight display
- Cylinder heating function for improved inflation efficiency
Equipment Composition
- Weighing system
- Heating system
- Pressure gauge
- Pressure regulating valve
- Wire bobbin
Standard Accessories
- Pipes: 0.5m, 3m, and 5m lengths (one each)
- Power cord: 3 meters
- "O" rings: 6 units
- Adapter: 1 unit
- Empty standard SF6 gas bottle (optional)
Key Features & Operation
Inflation Process: Connect the 5m pipe to the inflation port and SF6 equipment. Open cylinder and regulating valves, adjust pressure as required. Complete inflation when airflow balances. Close valves before pipe removal.
Weighing Function: Place SF6-filled cylinder on base and activate weighing power to display current weight. Monitor remaining gas after inflation completion.
Heating Capability: Activate heating power to warm cylinders. Particularly useful below 0°C ambient temperature or when cylinder gas levels are low.
Complete Packing List
| No. | Item | Quantity |
|---|---|---|
| 1 | Vacuum pump | 2 |
| 2 | SF6 special valve | 1 |
| 3 | Pressure gauge | 2 |
| 4 | Electrical box | 1 |
| 5 | Wheels | 1 |
| 6 | 5 meters dedicated hose | 1 |
| 7 | 3 meters dedicated hose | 1 |
| 8 | Sealing ring | 1 |
| 9 | Cylinder connector | 1 |
