High Accuracy Loop Resistance Tester With Printer Portable Circuit Breaker Ohmmeter
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY CT |
| Minimum Order Quantity | 1 |
| Price | 800usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Measuring Range | 1-1999μΩ | Accuracy Class | 0.5% |
|---|---|---|---|
| Operating Temperature | -10℃~40℃ | Time Resolution | 1s |
| Current Resolutio | 1μΩ | Place Of Origin | Hubei, China |
| Resolution | 1μΩ | Measurement Accuracy | 0.5% |
| Measurement Range | 1-1999μΩ | Working Power Supply | AC220V ± 10%, 50Hz ± 1Hz |
| Weight | 12kg | Display Mode | Three-and-a-half-digit LCD |
| Volume | 380*350*260 Mm | ||
| Highlight | high accuracy loop resistance tester,portable loop resistance tester,portable grounding resistance tester |
||
Product Description
High Accuracy Loop Resistance Tester Contact Resistance Tester With Printer Portable Circuit Breaker Ohmmeter
Product Overview
This high-precision loop resistance tester features advanced contact resistance measurement capabilities with built-in printer functionality. Designed for portable circuit breaker testing applications, it delivers reliable ohmmeter performance in industrial environments.
Key Features
- High Current Output: Advanced power supply technology provides continuous high current output, effectively breaking down oxide films on switch contacts for superior test results
- Exceptional Anti-Interference: Maintains stable LCD readings (±1 digit) even under severe interference conditions with excellent repeatability
- Extended Service Life: Precision temperature-compensated circuits eliminate environmental temperature drift, paired with heavy-duty connectors for enhanced shock and vibration resistance.
- Portable Design: Compact and lightweight construction for easy transportation and field use
Technical Specifications
| Parameter | Specification |
|---|---|
| Measuring Range | 1-1999μΩ |
| Resolution | 1μΩ |
| Test Current | Four fixed output ranges: DC 50A, 100A, 150A, and 200A |
| Accuracy | 0.5% |
| Operating Mode | Continuous |
| Display | 3.5-digit LCD |
| Power Supply | AC220V±10% 50Hz |
| Operating Environment | Temperature -10°C to 40°C, Humidity ≤80%RH |
| Dimensions | 380×350×260mm |
| Weight | 12 kg |

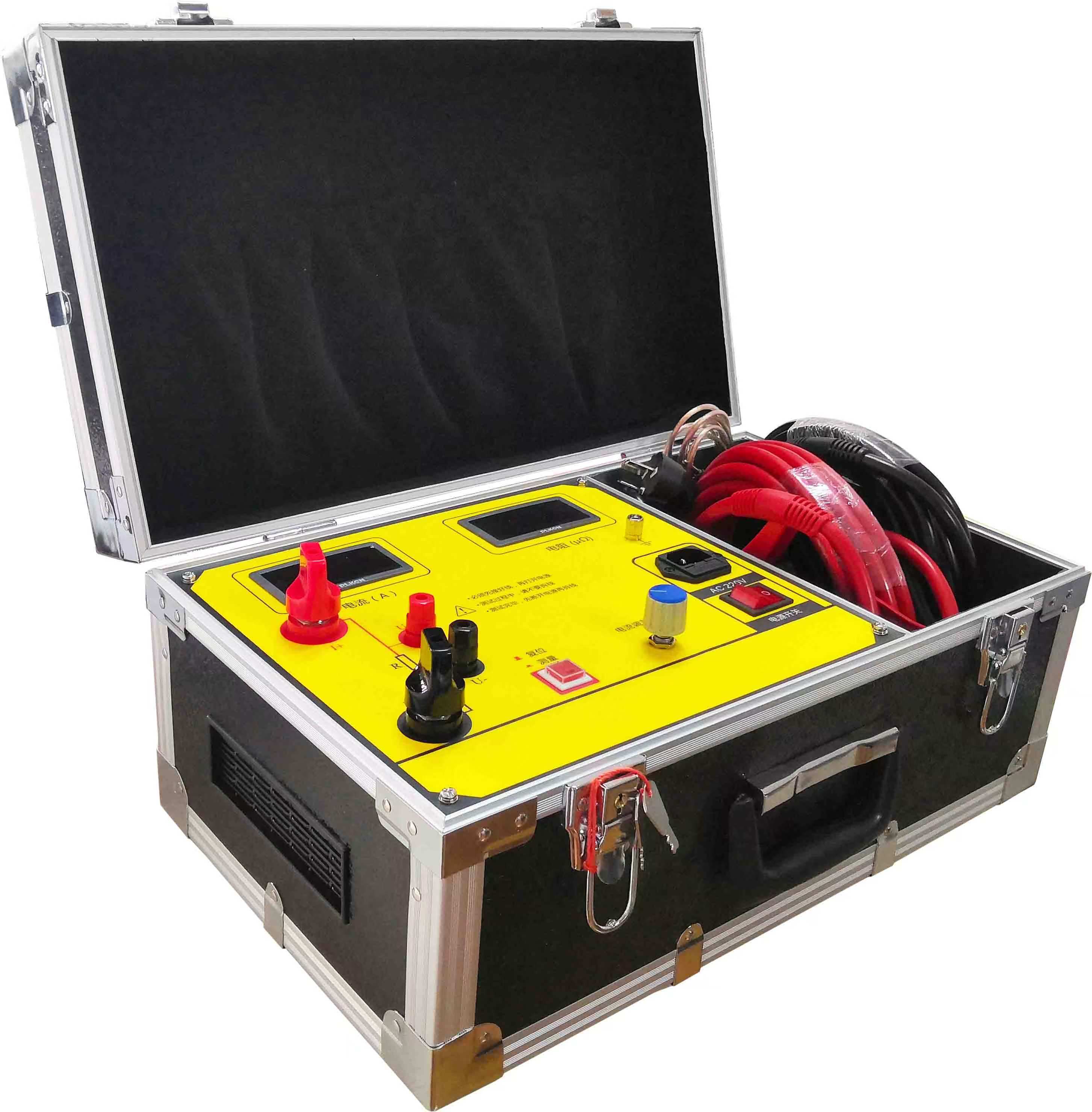

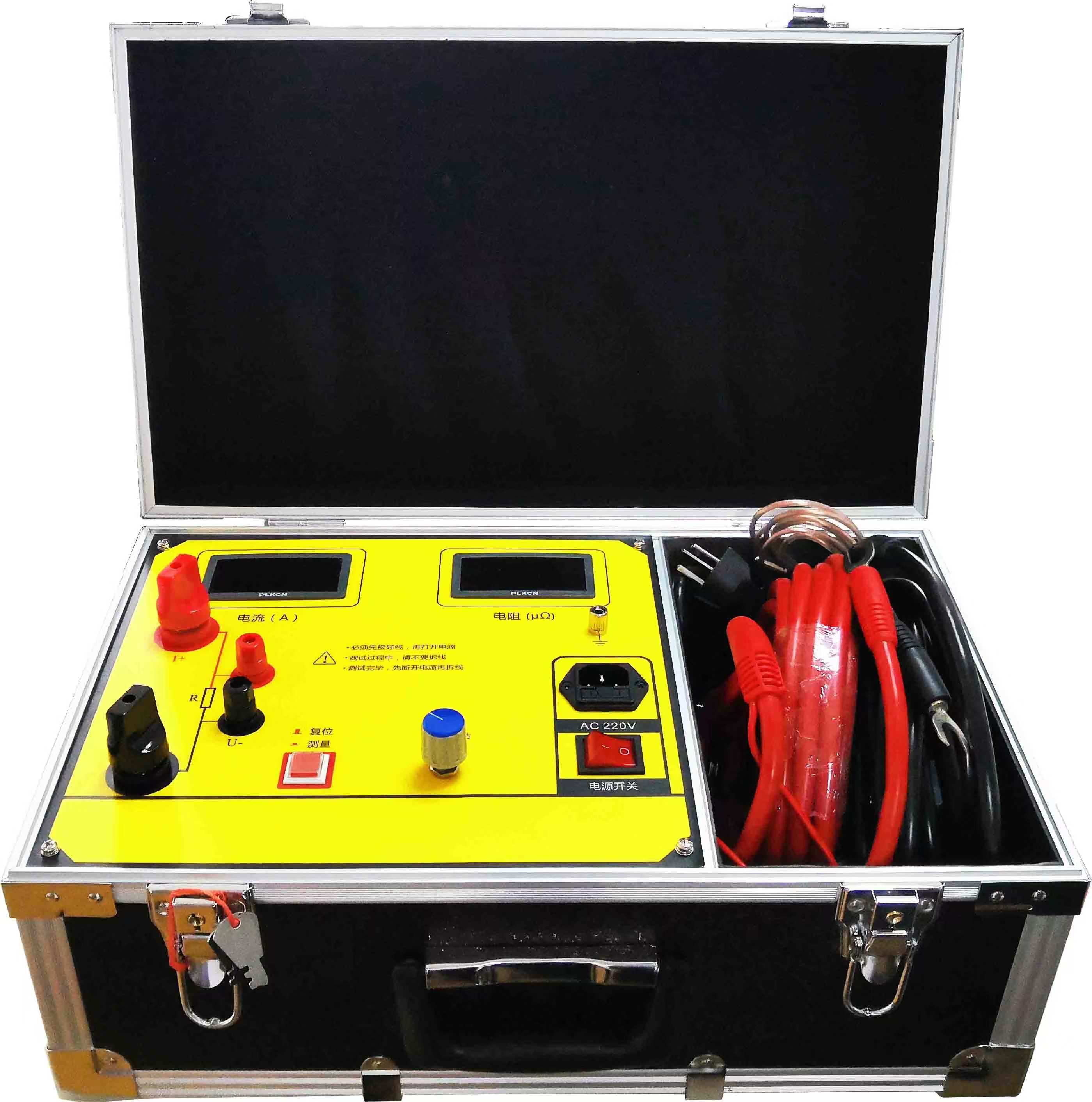

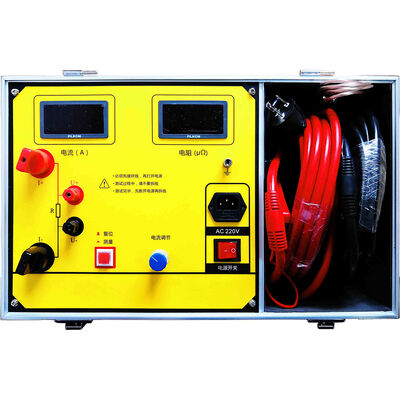

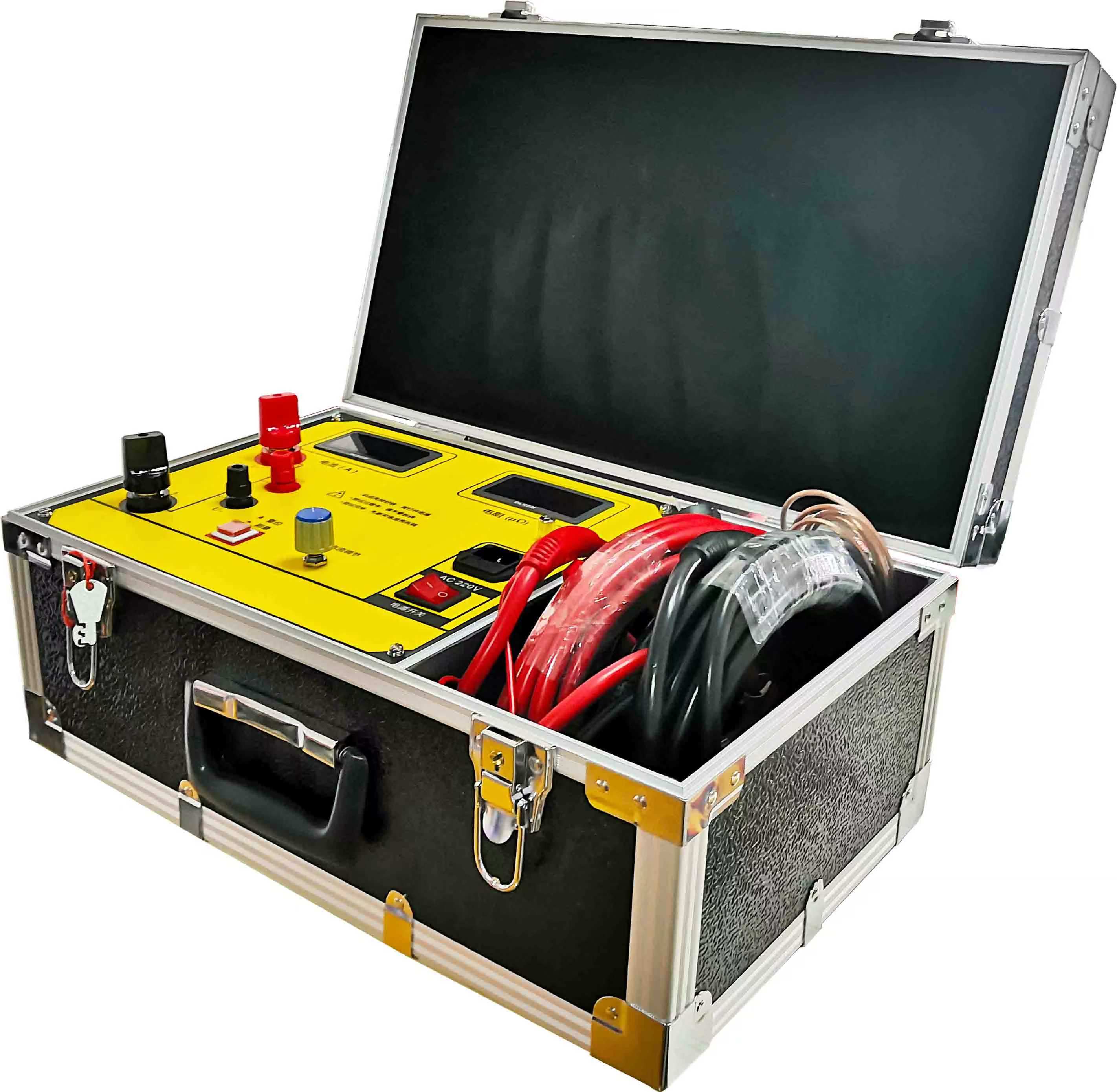

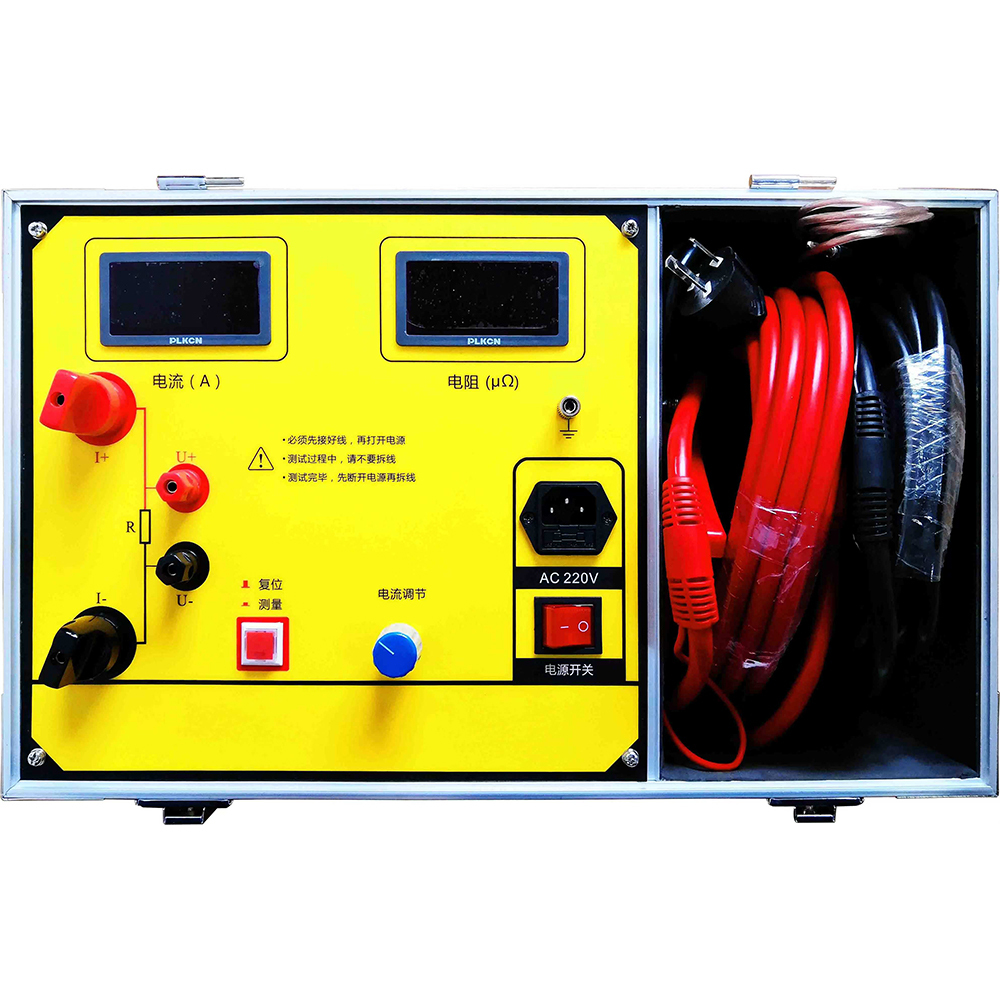

Product Images
