High Voltage Tester Ground Grounding Resistance Meter Earth Loop Impedance Tester
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYHL |
| Minimum Order Quantity | 1 |
| Price | 250usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Measuring Range | 0.010Ω~200Ω | Accuracy Class | High |
|---|---|---|---|
| Operating Temperature | -10℃-55℃ | Time Resolution | 1s |
| Current Resolutio | 1μΩ | Place Of Origin | Hubei, China |
| Resolution | 1μΩ | Measurement Accuracy | 0.5% |
| Measurement Range | 1-1999μΩ | Working Power Supply | AC220V ± 10%, 50Hz ± 1Hz |
| Weight | 12kg | Display Mode | Three-and-a-half-digit LCD |
| Volume | 380*350*260 Mm | Display Type | Digital Only |
| Dimensions | Small | Data Storage | 99 Sets |
| Highlight | high voltage ground tester,high voltage resistance tester |
||
Product Description

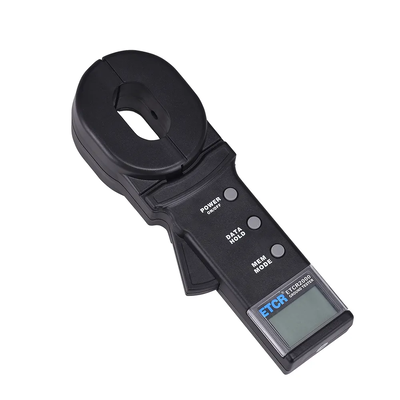

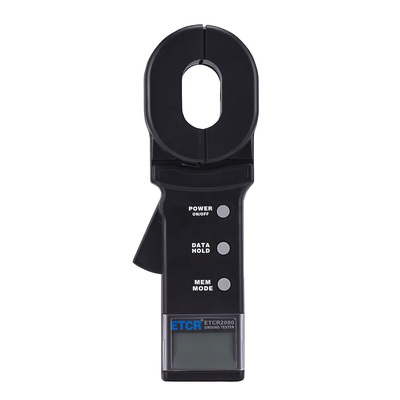

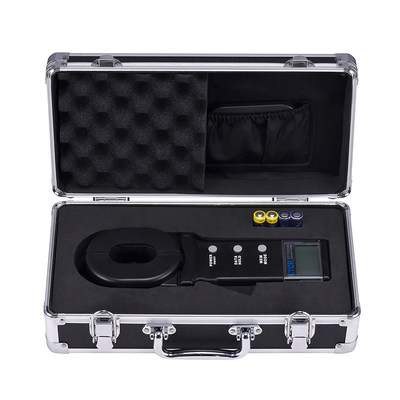

High Voltage Tester Ground Grounding Resistance Meter Earth Loop Impedance Tester
Product Overview
The Clamp Earth Resistance Tester is designed for precise measurement of grounding resistance and loop resistance. This digital instrument eliminates the need to disconnect grounding down leads or use auxiliary electrodes, providing fast, convenient, and safe operation for various industrial applications.
Key Applications
Widely used in electric power, telecommunications, meteorology, oil fields, construction, and industrial electrical equipment grounding resistance measurement. Particularly effective for measuring ground faults in situations where traditional methods cannot be applied.
Product Features
- Measurement of earth resistance and loop resistance
- Wide measurement range: 0.010Ω to 200Ω
- Data storage capacity: 99 sets
- Programmable alarm threshold: 1-199Ω
- Visual alarm symbol display
- Compact CT size: 55mm * 32mm
Technical Specifications
| Parameter | Specification |
|---|---|
| Resistance Range | 0.010Ω ~ 200Ω |
| Resolution | 0.001Ω |
| Data Storage | 99 sets |
| Alarm Threshold Setting | 1 ~ 199Ω |
| Working Temperature | -10℃ to 55℃ |
| Humidity Range | 10% RH to 90% RH |
| LCD Display | 4 digits, 47mm * 28.5mm screen |
| Clamp Size | 55mm * 32mm |
| Clamp Opening Size | 32mm |
| Weight | 1130g |
| Dimensions | 275mm * 85mm * 56mm |
| Protection Level | Double insulation |
| Measurement Time | 1 second |
| Resistance Measurement Frequency | > 1KHz |
| Power Supply | 6VDC (4 * LR6 alkaline batteries) |
Product Images
High Voltage Transformer in use with clamp transformers during dielectric strength testing
High Voltage Transformer measurement setup and configuration
Detailed view of High Voltage Transformer controls and electrical connections
