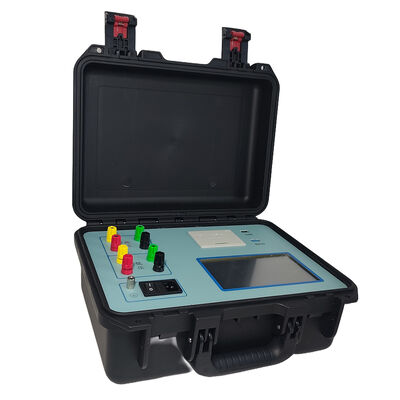

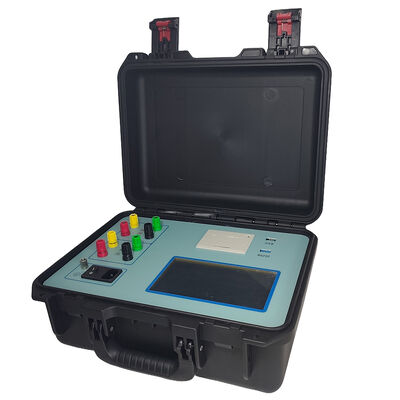

Electric Transformer Ratio Tester Meter Transformer Turns Ratio Tester For Electronics
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY6810A |
| Minimum Order Quantity | 1 |
| Price | 1500usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Measuring Range | 1-1999μΩ | Accuracy Class | 0.5% |
|---|---|---|---|
| Operating Temperature | -10℃~40℃ | Time Resolution | 1s |
| Current Resolutio | 1μΩ | Place Of Origin | Hubei, China |
| Resolution | 1μΩ | Measurement Accuracy | 0.5% |
| Measurement Range | 1-1999μΩ | Working Power Supply | AC220V ± 10%, 50Hz ± 1Hz |
| Weight | 12kg | Display Mode | Three-and-a-half-digit LCD |
| Volume | 380*350*260 Mm | Voltage | 220 V, 110 V |
| Warranty | 3 Years | Power | 100W |
| Place Of Origin | Hebei, China | Power Supply 1 Hz | AC 220V ± 10% 50± |
| Accuracy | ±0.2%rdg+2dgt | Customized Support | OEM, ODM |
| Protection Class | IP55 | Application | Electrical Testing |
| Type | Electric Power Test Equipment | ||
| Highlight | Electric transformer turns ratio tester,Electronics transformer turns ratio tester,100W turns ratio tester |
||
Product Description
Electric Transformer Ratio Tester Meter
Professional transformer turns ratio tester designed for comprehensive electronic testing applications, featuring advanced measurement capabilities and robust construction.
Key Features
- Compatible with various transformer types including Z-type, rectifier, grounding, electric furnace, phase-shifting, and balance transformers
- Specialized support for Scott transformers and inverse Scott transformers
- Integrated three-phase precision inverter power supply eliminates harmonic interference for enhanced measurement accuracy
- Three-phase output voltage enables rapid testing with automatic phase-to-phase angle measurement
- Automatic identification of transformer wiring groups 0-11
- Comprehensive protection systems including high/low voltage reverse connection, turn-to-turn short circuit, and output full short circuit protection
- Automatic measurement of transformation ratio, error values, and tap positions (up to 99 positions)
- High-definition color LCD with Chinese operation prompts for intuitive use
- Multiple output options: print, USB, and optional RS232 interface
- Durable engineering plastic housing with cold resistance, temperature tolerance, waterproof sealing, and shockproof design
Technical Specifications
| Parameter | Specification |
|---|---|
| Transformation Ratio Range | 0.9~10000 |
| Accuracy | ±0.1%rdg+2dgt (≤500) ±0.2%rdg+2dgt (>500 and ≤2000) ±0.5%rdg+2dgt (>2000) |
| Resolution | 0.0001 (0.9~9.9999) 0.001 (10~99.999) 0.01 (100~999.99) 0.1 (1000~9999.9) 1 (≥10000) |
| Working Power | AC 220V±20% (AC110V available upon request) |
| Power Frequency | 50/60Hz |
| Operating Environment | -10℃~50℃, Humidity <90% (no condensation) |
| Instrument Weight | 6kg |
| Instrument Dimensions | 360mm * 290mm * 170mm |

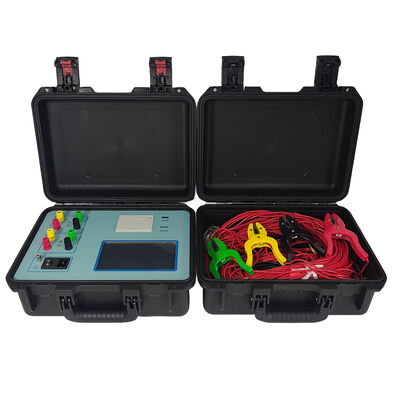

Product Images
