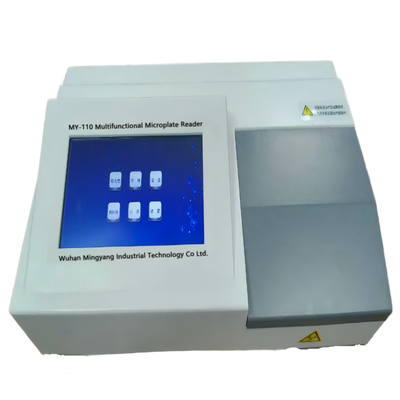

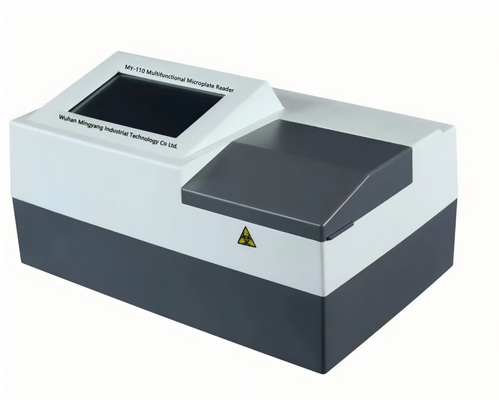

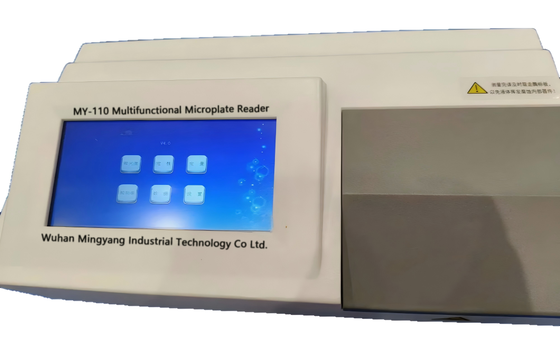

MY-110 Auto Microplate Reader, 400-900nm ELISA Analyzer with Touch Screen & Powerful Data Processing
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-110 |
| Minimum Order Quantity | 1 |
| Price | 900usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | D/A,L/C,D/P,T/T,Western Union |
| Supply Ability | 100/Month |
Product Details
| Types | Automatic | Trademark | MINGYANG |
|---|---|---|---|
| Group | All Groups | Production Capacity | 100 Units/Month |
| Certification | CE, ISO13485, ISO9001/14001/45001 | Transport Package | Standard Export Package |
| Light Source | DC12V 22W Tungsten Halogen Lamp | Optical Path | 8 Channel Vertical Light Path System |
| Wavelength Range | 400-900nm | Reading Range | 0-4.000Abs |
| Resolution | 0.001Abs | Accuracy | ≤±0.01Abs |
| Stability | ≤±0.003Abs | Repeatability | ≤0.3% |
| Highlight | Auto Microplate Reader ELISA Analyzer,Microplate Reader with Touch Screen,ELISA Analyzer powerful data processing |
||
Product Description
MY-110 Auto Microplate Reader, 400-900nm ELISA Analyzer with Touch Screen & Powerful Data Processing
Product Description
Exquisite design, simple operation, easy to carry 7-inch color LCD display, touch screen operation Visualization of board layout and display of measurement data on the entire board Central positioning, accurate data, good stability, and good repeatability Endpoint method, kinetic method, inhibition rate, single/dual wavelength measurement Adopting a wide voltage design, suitable for global grid power supply, and a three-year warranty for the entire machine.
Basic Info.
Model NO.
MY-110
Certification
CE, ISO13485, ISO 9001/14001/45001
Group
All groups
Light Source
DC12V 22W tungsten halogen lamp
Optical Path
8 channel vertical light path system
Wavelength Range
400-900nm
Reading Range
0-4.000Abs
Resolution
0.001Abs
Power Supply
AC100-240V 50-60Hz
Sizes(WxDxH)(mm)
400x260x200
Transport Package
Standard Export Package
Specification
MY-110
Trademark
MINGYANG
Origin
China
HS Code
9027509090
Production Capacity
100 Units/Months
Product Parameters
| Model | MY-110 |
|---|---|
| Lamp | DC12V 22W tungsten halogen lamp |
| Optical Path | 8 channel vertical light path system |
| Wavelength Range | 400-900nm |
| Filter | Default configuration 405, 450, 492, 630nm, can be installed up to 10 filters. |
| Reading Range | 0-4.000Abs |
| Resolution | 0.001Abs |
| Accuracy | ≤±0.01Abs |
| Stability | ≤±0.003Abs |
| Repeatability | ≤0.3% |
| Vibration Plate | Three kinds of linear vibration plate function, adjustable 0-255 seconds |
| Display | 7 inch color LCD screen, display the entire board information, touch screen operation |
| Software | Professional software, can store 500 groups program, 100000 sample results, more than 10 kinds of curve fitting equation |
| Power Supply | Use the power adapter design AC100-240V 50-60Hz |
| Sizes(W×D×H)(mm) | 400x260x200 |
| Shipping Size(W×D×H)(mm) | 570x440x480 |
| N.W./G.W. (kg) | 8/15 |
Elisa Microplate Reader Features:
The MY-110 is a popular elisa plate reader capable of sensitively measuring absorbance signals on microtiter plates, accurately detecting and analyzing the concentration and activity of biomolecules.
1.7-inch high-resolution touch screen, simple operation and easy to view the results.
2.Endpoint method, kinetic method, inhibition rate, and single/dual wavelength measurement to achieve fast readout and accurate detection.
3.Wide voltage design, global network power supply applicable
4.The elisa plate reader's wavelength range of 400-900 nm can meet a variety of applications;
5.Compact design, simple operation, easy to carry
6.Light source energy-saving design maximizes the extension of the service life of the light source.
7.The software includes program generation and storage, as well as a test data storage function with a large storage capacity.
8.Powerful curve fitting, kinetic analysis and reporting functions;
