Automatic Capacitance Bridge Test Set Power Capacitor Inductance Tester IP55
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYZZ-20A |
| Minimum Order Quantity | 1 |
| Price | 1800usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Accuracy Class | High Accuracy |
|---|---|---|---|
| Protection Class | IP55 | Application | Auto Testing |
| Warranty | 2 Years | Power | 50w |
| Voltage | 220V | Keyword | Auto Testing Resistance Meter |
| Function | Measurement Of DC Resistance | Accuracy | ±0.2% |
| Highlight | Automatic inductance tester,IP55 inductance tester,High Accuracy inductor tester |
||
Product Description
Automatic Capacitance Bridge Test Set with Power Capacitor Inductance Tester
This high-quality transformer testing equipment comes with a comprehensive 2-year warranty, designed for precision measurement and reliable performance in industrial applications.
Product Overview
During the manufacturing of inductive coils for transformers, mutual inductors, reactors, and electromagnetic operating mechanisms, DC resistance measurement is essential for factory tests, installation and handover tests, and preventive maintenance in the power sector. This tester effectively identifies manufacturing defects such as loose connections, strand missing, broken wires, material selection issues, and welding problems in inductive coils, while also detecting operational hazards.
Key Features
- 7 levels of output current (maximum: 50A; minimum: <5mA) suitable for DC resistance measurement of various transformers and mutual inductors
- Wide measurement range from 40μΩ to 100KΩ
- High response speed with automatic data refresh when enabling on-load tap switches
- Audible discharge alarm and clear discharge indication to prevent misoperation
- Complete protection functions against back EMF for reliable performance

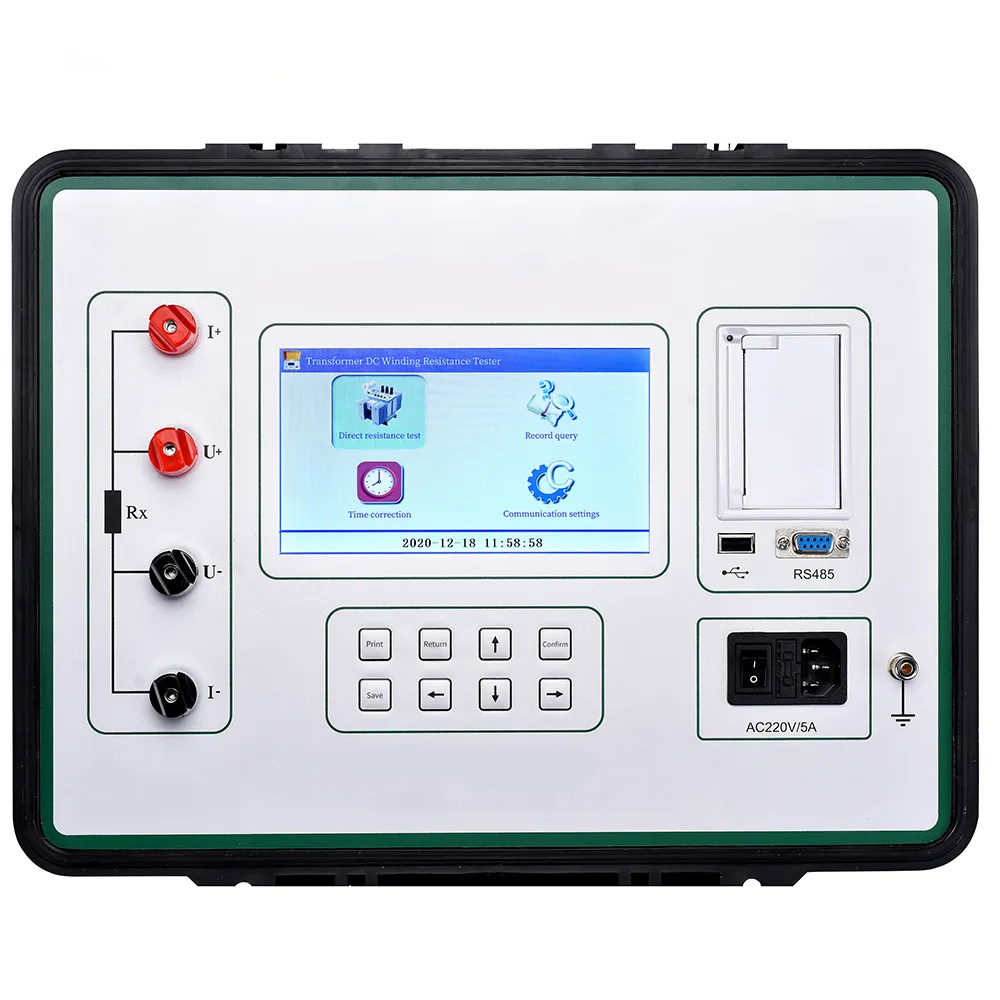

- 7-inch color LCD screen for clear data display with real-time printing capability
- Configurable Chinese and English operation interface
- RS485 communication interface for data transmission to background systems
- Large storage capacity for up to 500 test records
- USB interface for data transfer to USB flash drives
- Comprehensive parameter settings including test winding, tap position, test phase, and temperature conversion
- Durable industrial plastic case for easy portability and extended service life
Technical Specifications
| Parameter | Specification |
|---|---|
| Output Current | 50A, 20A, 10A, 5A, 2A, 100mA, <5mA (7 levels) |
| Measurement Range | 40μΩ-400mΩ (50A), 100μΩ-1Ω (20A), 500μΩ-2Ω (10A), 1mΩ-4Ω (5A), 2mΩ-10Ω (2A), 100mΩ-200Ω (100mA), 200Ω-100kΩ (<5mA) |
| Accuracy | ±(0.2%+2word) |
| Resolution | 0.1μΩ |
| Working Temperature | -10℃ to 40℃ |
| Ambient Humidity | ≤90% RH, no condensation |
| Altitude | ≤1000 meters |
| Power Supply | AC220V ± 10%, 50HZ ± 1HZ |
| Dimensions | 428mm × 350mm × 230mm |
| Weight | 10.9kg |

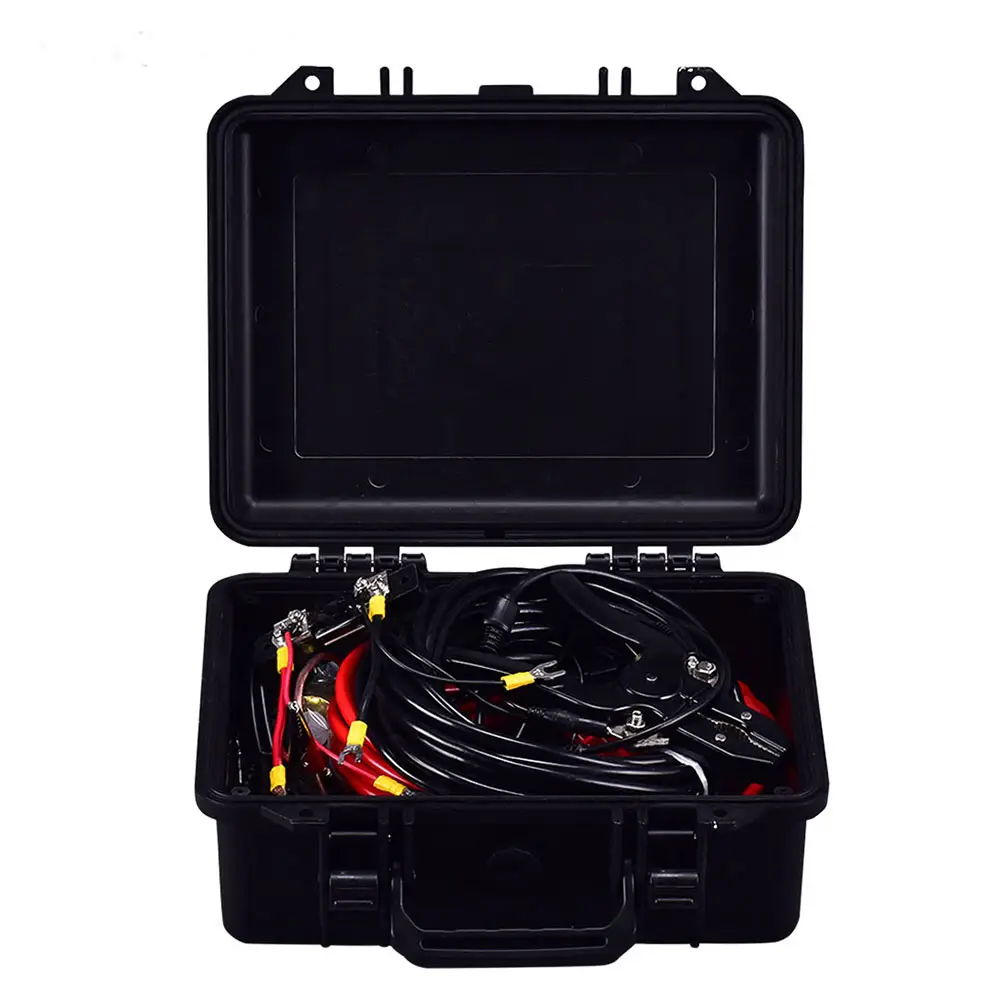

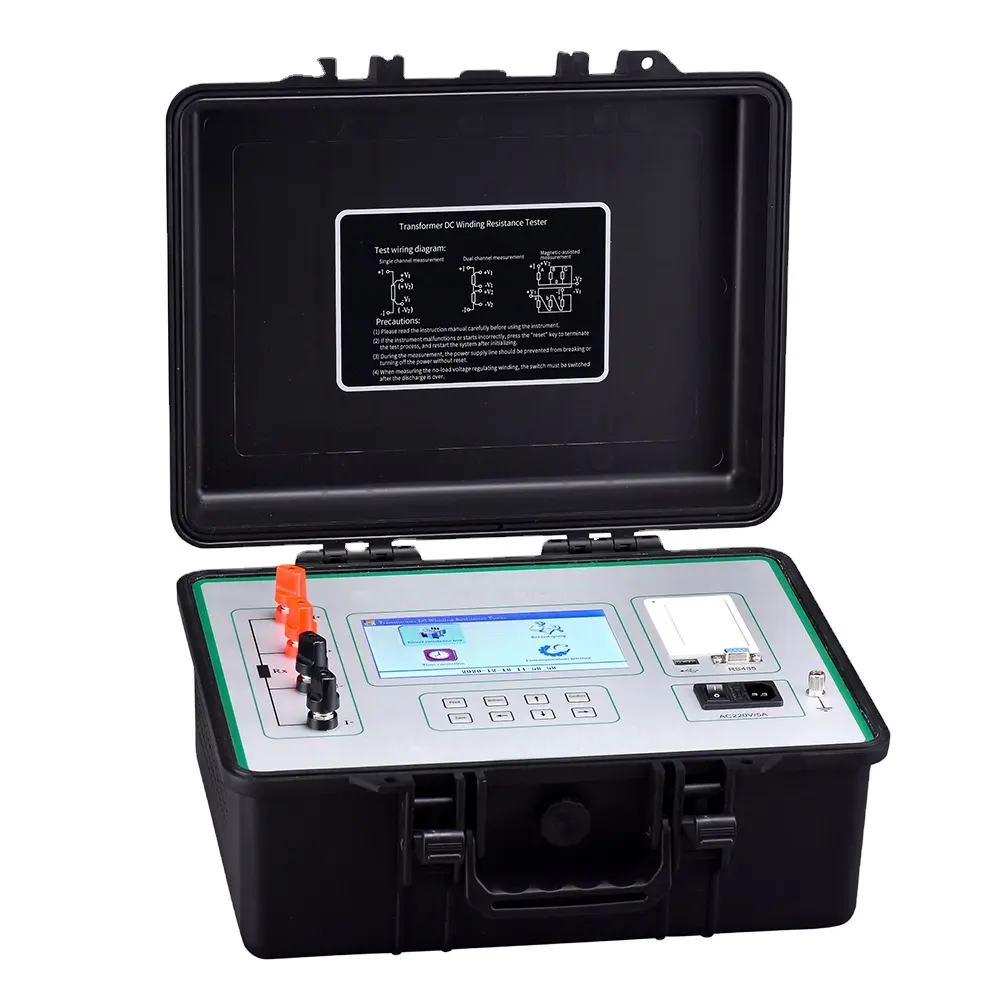

Product Images
