High Precision Micro Ohm Meter Grounding Resistance Tester For Proper Ground Network Connectioner
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY DC |
| Minimum Order Quantity | 1 |
| Price | 550usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | HANTEK Oscilloscope | Warranty | 2 Years |
|---|---|---|---|
| Customized Support | OEM | Bandwidth | 70MHz |
| Record Length | 2M | Rise Time At BNC(typical) 5ns | 5ns |
| Vertical Resolutior | 8-bit Resolution, All Channel Sampled Simultaneously | Inputs Impendance3pF | 1MΩ+2% 20pF± |
| Probe Attenuation | 1X, 10X | Sampled Simultaneously Inputs Coupling | AC, DC, GND |
| Supported Probe Attenuation Factor | 1X, 10X, 100X, 1000X | Measuring Range | 0-20kΩ |
| Accuracy Class | ±(0.2%RD+0.05%FS) | Operating Temperature | -10~50°c |
| Dimensions | 320mm*240mm*130mm | Minimum Resolution | Min. 0.1 μ Ω |
| Frequency | 50Hz/60Hz | Usage | Testing Machine |
| Measurement Time | Fast, 10~60 Seconds, Continuous Testing Optional | Working Power Supply | Built-in 12.6V/7.8AH Lithium Battery |
| Weight | 6KG | ||
| Highlight | High Precision micro ohm meter,70MHz micro ohm meter,1000X grounding resistance tester |
||
Product Description
High Precision Micro Ohm Meter Grounding Resistance Tester
Product Overview
The Transformer DC Winding Resistance Tester is designed for inspection, installation, debugging, and preventive testing of semi-finished and finished products in transformer manufacturing. This instrument effectively detects hidden hazards and operational defects including material selection issues, welding problems, loose connections, short circuits, and fractures in transformer coils.
Developed to meet the demands for rapid transformer DC resistance measurement, the CT series DC resistance tester features microcontroller control with automated self-inspection, data processing, display, storage, and printing capabilities. Combined with precise electronic measurement technology, this instrument offers high accuracy, wide measurement range, and user-friendly operation for efficient measurement of transformer sensitivity, voltage, and resistance.
Key Features
- Six-gear output current selection with automatic gear capability and maximum output current of 10A
- Compatible with inductive test objects including transformers, mutual inductors, reactors, generators, and motors
- Suitable for measuring switches, copper bars, contactors, relay contacts, metal wires, and cable accessories
- Integrated perpetual calendar with 99-group data storage and automatic temperature conversion
- Data retention after shutdown with printer output capability for test data

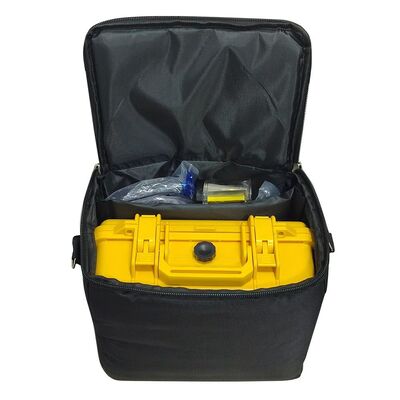

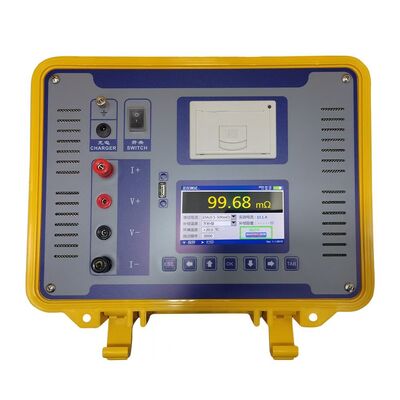

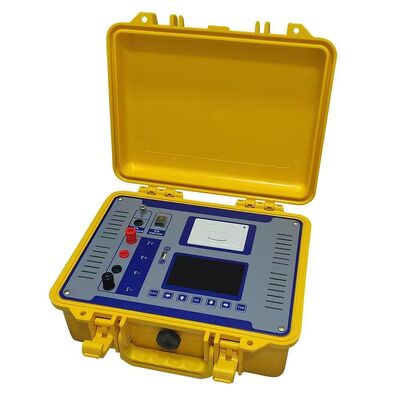

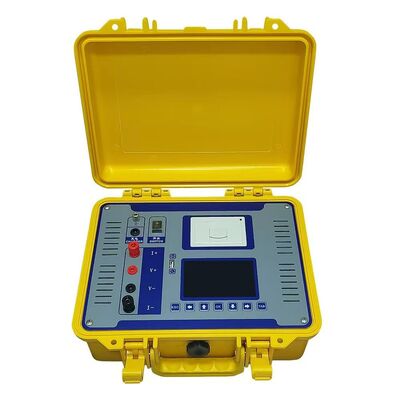

Product Images
