Electricians Portable Insulation Resistance Meter Hight Voltage For Transformer
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-HA |
| Minimum Order Quantity | 1 |
| Price | 1400usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Measuring Range | 1-1999μΩ | Accuracy Class | (5%~10%)±10V |
|---|---|---|---|
| Operating Temperature | -10℃~40℃ | Time Resolution | 1s |
| Current Resolutio | 1μΩ | Place Of Origin | Hubei, China |
| Resolution | 1μΩ | Measurement Accuracy | 0.5% |
| Measurement Range | 1-1999μΩ | Working Power Supply | AC220V ± 10%, 50Hz ± 1Hz |
| Weight | 5.5kg | Display Mode | Three-and-a-half-digit LCD |
| Volume | 380*350*260 Mm | Type | Testing Machine |
| Voltage | 220 V, 240 V | Warranty | 2 Years |
| Measurement Voltage Accuracy | ±(5%+10V) | Power Supply | DC: 10 X 1.2V Battery,AC: 220V (50/60Hz). |
| Dimensions | 315 X 240 X 180mm | Protection Class | IP55 |
| Customized Support | OEM | Measurement Voltage Range | 0.5kV, 1kV, 2.5kV, 5kV, 10 KV, 20kV |
| Short Circuit Current | 10mA | Temperature | 20℃~40℃ |
| Highlight | Electricians insulation resistance meter,Portable insulation resistance meter,Hight Voltage insulation test meter |
||
Product Description
Electricians Portable Insulation Resistance Meter
High Voltage Insulation Resistance Tester for Transformer applications, designed for professional electricians and industrial use.
Technical Specifications
| Measurement Range | Resistance Measurement Range | Accuracy |
|---|---|---|
| 20MΩ | 0.01～19.99MΩ | ±(5%＋3d) |
| 200MΩ | 5.0～199.9MΩ | ±(5%＋3d) |
| 2GΩ | 0.05～1.999GΩ | ±(5%＋3d) |
| 20GΩ | 0.5～19.99GΩ | ±(5%＋3d) |
| 200GΩ | 5.0～199.9GΩ | ±(10%＋3d) |
| 2000GΩ | 50～1999GΩ | ±(20%＋10d) |
Key Features
- Strong anti-electric field interference ability up to 2mA (50Hz), suitable for 500kV substations without dismantling wires to test insulation resistance of 500kV large-scale transformers
- Short-circuit current of 10mA, suitable for testing high capacity and high inductance applications
- Wide resistance range: 0.01MΩ ~ 1999GΩ with high resolution for accurate readings
- Wide output voltage range: 0.5kV, 1kV, 2.5kV, 5kV, 10kV, 20kV adjustable with smooth voltage adjustment from 0V to desired value
- Timekeeping function to remind users to record and analyze absorptance and polarization index of measured targets
- High quality construction with imported components for accuracy and reliability
- Easy to use: one-piece chassis, small size, light weight, and portable design
- Durable construction: rugged and strong grinding material with excellent overall texture and extended lifespan
Product Images
Field testing setup with clamp transformers

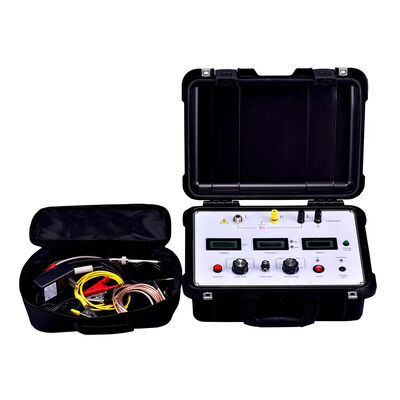

Measurement setup and configuration

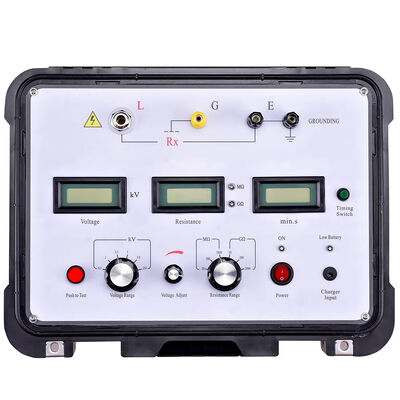

Detailed control panel and connections
