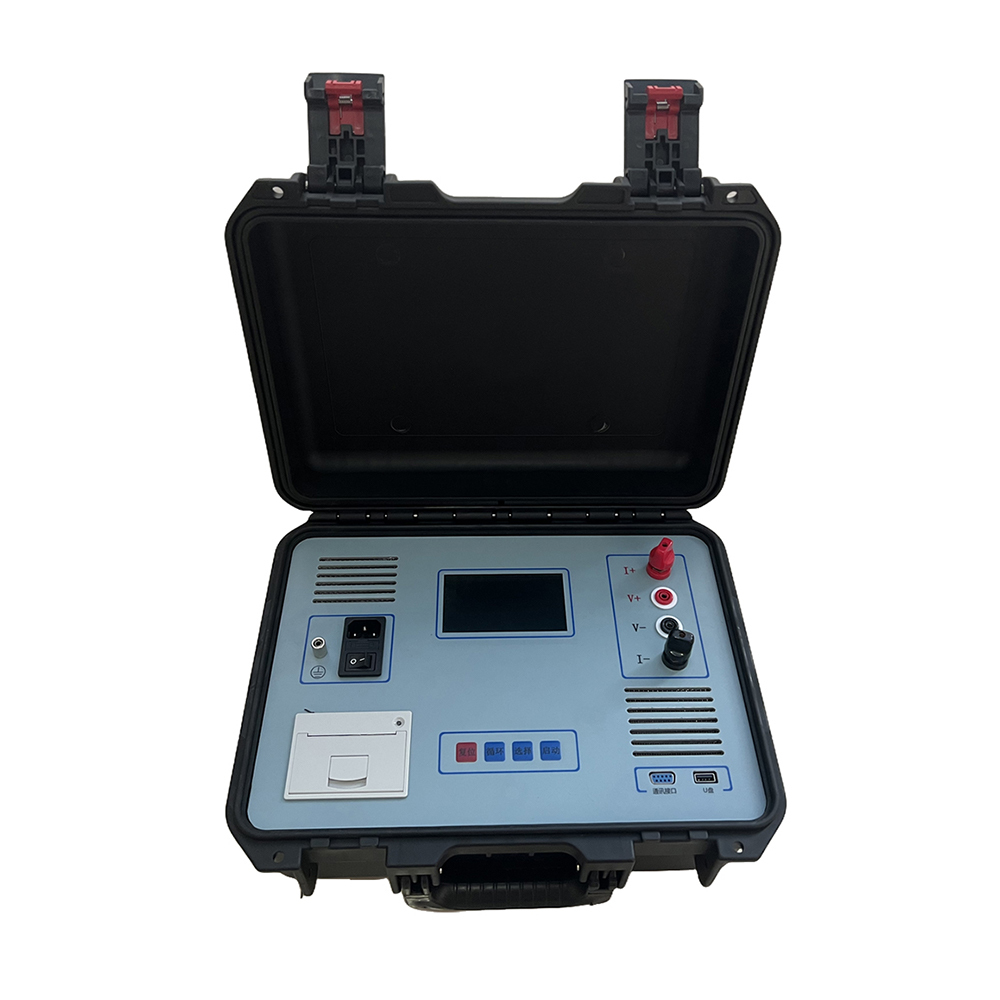

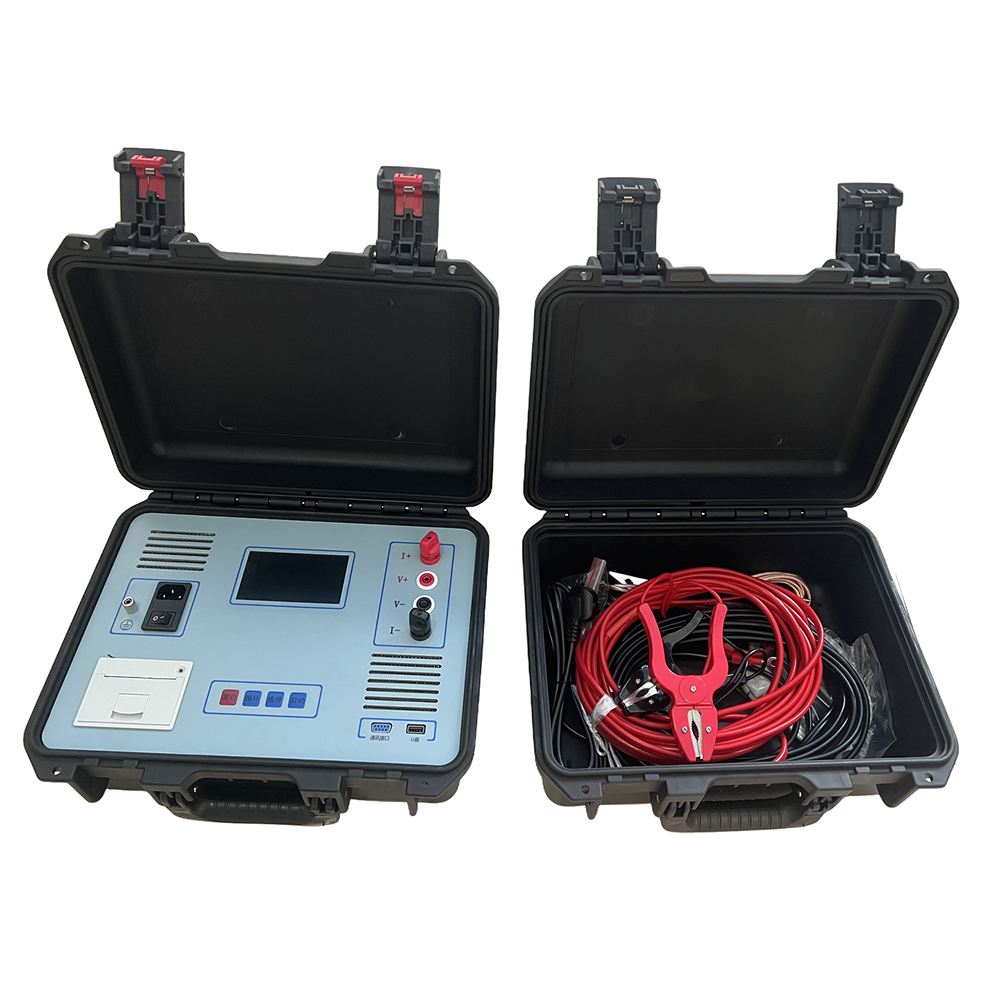

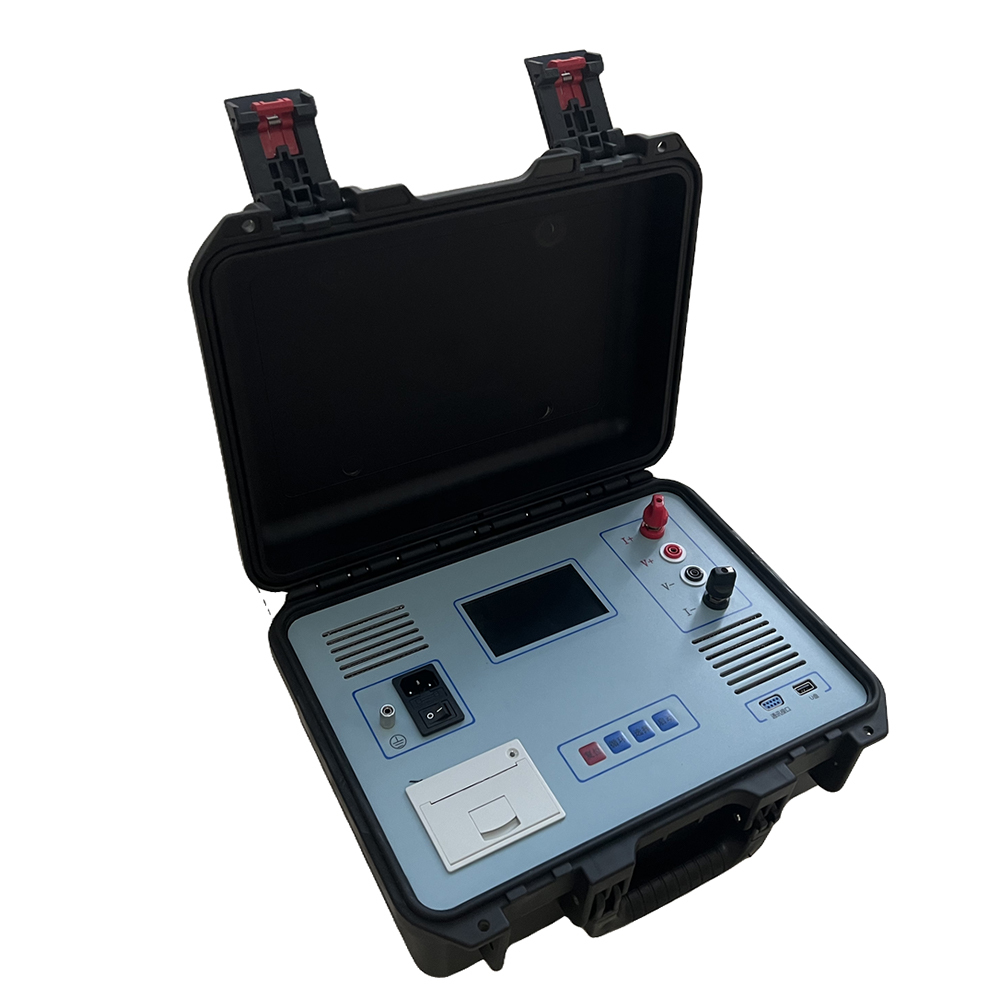

Single Phase Portable Transformer DC Winding Resistance Tester For Cable
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYR5A |
| Minimum Order Quantity | 1 |
| Price | 1400usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Instruments | Voltage | 50v |
|---|---|---|---|
| Application | Electrical Testing | Protection Class | IP55 |
| Customized Support | OEM | Accuracy | 5A,1A,200mA,40mA±(0.2%+2) <20mA±(0.5%+2) |
| Power | 200W | Warranty | 2 Years |
| Resolution | 0.1μΩ | Conversion Temperature | 20℃~150℃ |
| Temperature | 0℃~40℃ | Data Storage | Group Of 1000 |
| Power Supply | AC 220V±10V,50Hz±1 Hz | Weights | Host 5.6KG Accessories 4.45KG |
| Test Connection Cable Length | 8 M | Size | Host360*290*170(mm) Accessories 360*290*170(mm) |
| Highlight | Single Phase winding resistance tester,IP55 winding resistance tester,200W transformer winding resistance tester |
||
Product Description
Single Phase Portable Transformer with 2-Year Warranty DC Winding Resistance Tester for Cable
This single phase portable transformer features a comprehensive DC winding resistance tester specifically designed for cable applications. Backed by a 2-year warranty, it provides reliable performance for industrial electrical testing needs.
Technical Specifications
| Test Current | Auto, <20mA, 40mA, 200mA, 1A, 5A |
|---|---|
| Resistance Range | 1mΩ-2Ω (5A) 10mΩ-10Ω (1A) 100mΩ-50Ω (200mA) 1Ω-250Ω (40mA) 100Ω-20KΩ (<20mA) |
| Data Storage | Group of 1000 |
| Output Current Accuracy | 5A, 1A, 200mA, 40mA ±(0.2%+2) <20mA ±(0.5%+2) |
