High Precision IP55 DC Winding Resistance Tester For Transformer Testing
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYR |
| Minimum Order Quantity | 1 |
| Price | 700usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | DC Resistance Tester | Voltage | 220 V |
|---|---|---|---|
| Application | Electrical Testing | Protection Class | IP55 |
| Customized Support | OEM | Accuracy | Class High Accuracy |
| Power | 200W | Warranty | 2 YEAR |
| Resolution | 0.1μΩ | Conversion Temperature | 20℃~150℃ |
| Temperature | 0℃~40℃ | Data Storage | Group Of 1000 |
| Power Supply | AC 220V±10V,50Hz±1 Hz | Weights | Host 5.6KG Accessories 4.45KG |
| Test Connection Cable Length | 8 M | Size | Host360*290*170(mm) Accessories 360*290*170(mm) |
| Place Of Origin | Hubei, China | Function | Resistance Test For Transformer, Motor |
| Keyword | Resistance Test | ||
| Highlight | High Precision Resistance Tester,IP55 Resistance Tester,Transformer Testing digital resistance tester |
||
Product Description
Transformer DC Resistance Tester - High Precision Winding Resistance Tester
Key Features
- Mobile app control with fixed-format data storage for convenient access
- 24V maximum output voltage for higher test currents and faster testing
- Advanced power supply technology with multiple current ranges and automatic current selection
- Comprehensive protection against back-EMF impact, interruptions, power failures, and overheating
- Temperature conversion for copper and aluminum materials with touch input capability
- Intelligent power management for energy efficiency and reduced heat generation
- 7-inch high-brightness touch color LCD with clear visibility in strong light
- Built-in perpetual calendar clock with power-down storage for 1000 test datasets
- Multiple connectivity options: Bluetooth, RS232, USB, and U disk data storage
- Integrated panel micro printer for measurement result printing
Technical Specifications
| Parameter | Specification | Remarks |
|---|---|---|
| Test Current | AUTO, <20mA, 40mA, 200mA, 1A, 5A, 10A | |
| Measuring Range & Accuracy | 0.5mΩ~0.8Ω (10A) 1mΩ-4Ω (5A) 5mΩ-20Ω (1A) 100mΩ-100Ω (200mA) 1Ω-500Ω (40mA) |
±(0.2%+2 readings) |
| Measuring Range & Accuracy | 100Ω-100KΩ (<20mA) | ±(0.5%+2 readings) |
| Minimum Resolution | 0.1μΩ | |
| Display | 7-inch touch color LCD | 4-digit resistance display |
| Data Storage | 1000 groups | |
| Working Environment | 0ºC~40ºC, <90% RH (no condensation) | |
| Power Supply | AC 220V±10V, 50Hz±1Hz | Fuse 2A |
| Maximum Power Consumption | 200W | |
| Dimensions | 360*290*170mm | |
| Weight | Host: 6kg, Wire box: 5kg |

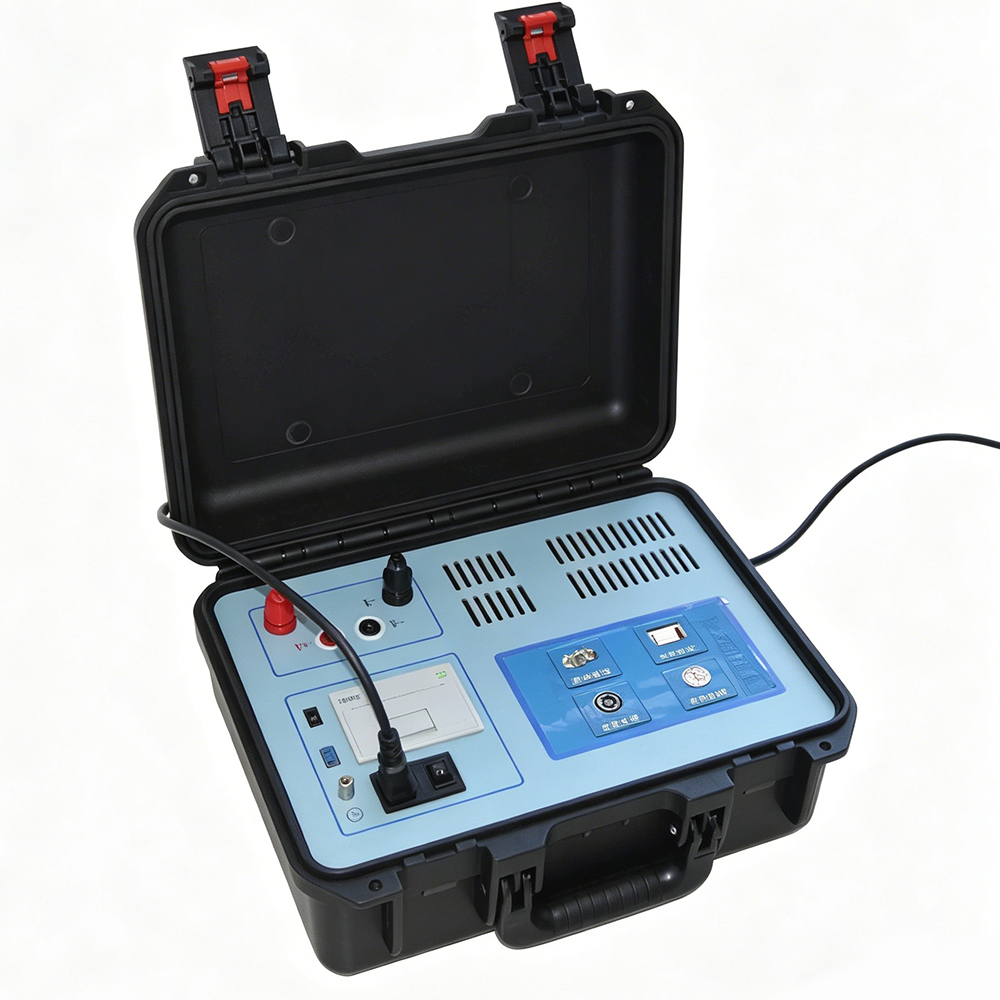

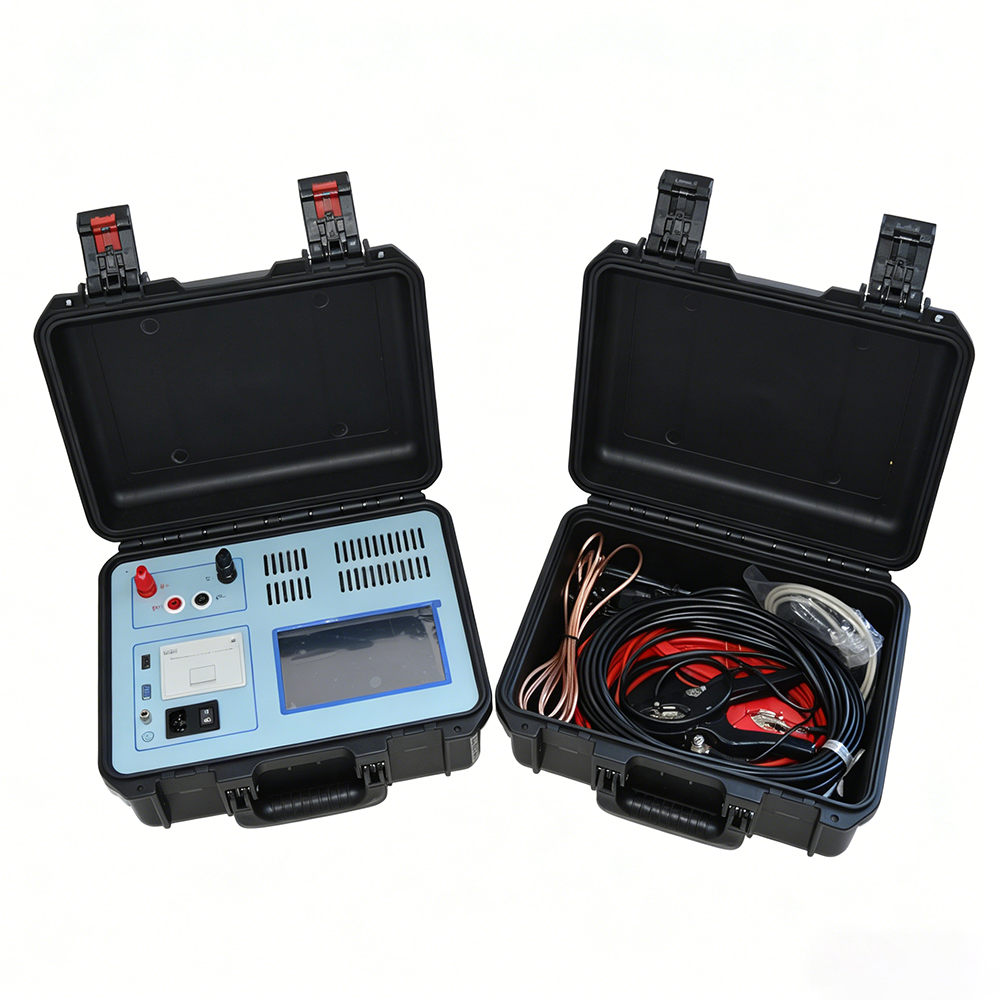

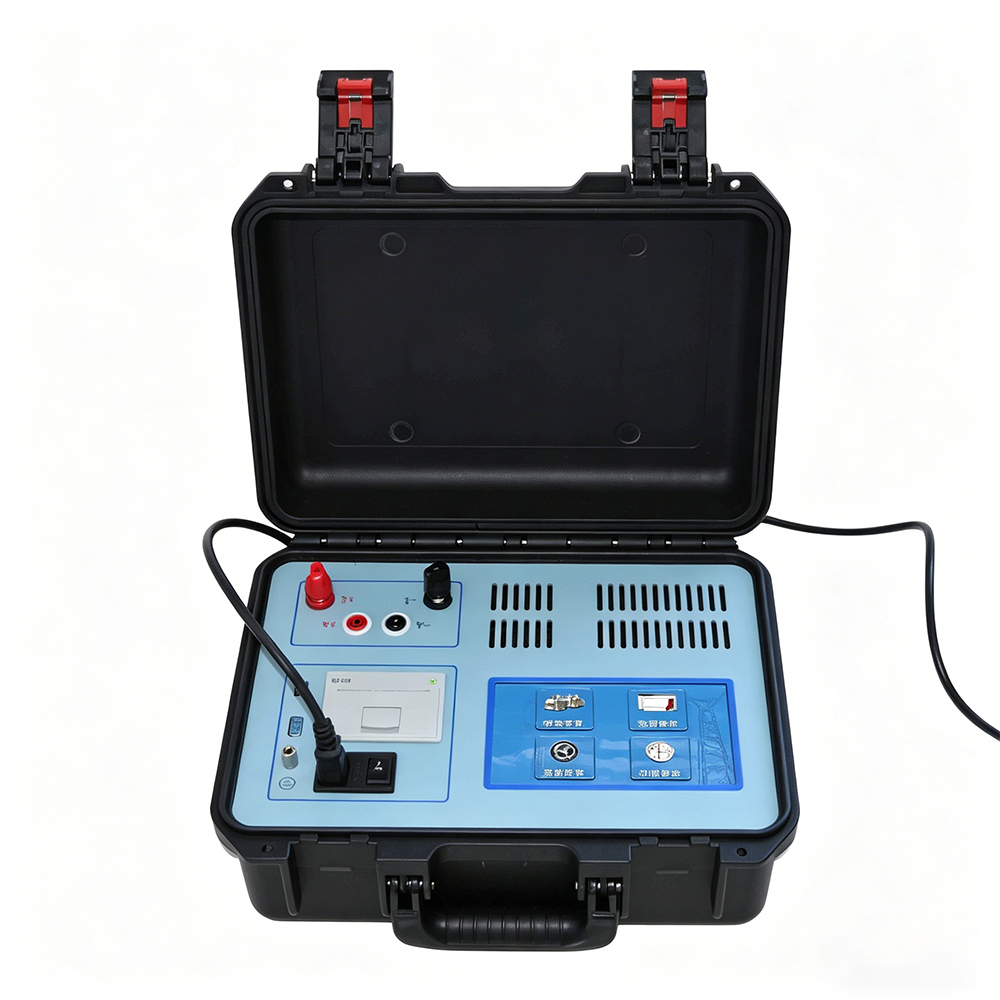

Product Images
Note: Product operating system and display interface available in English version.
