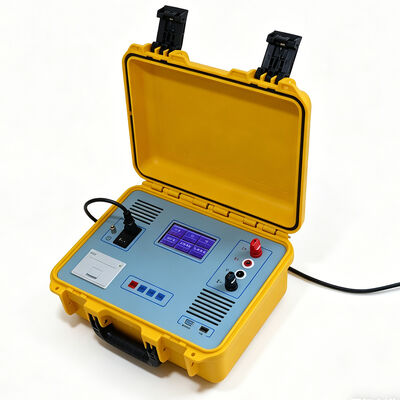

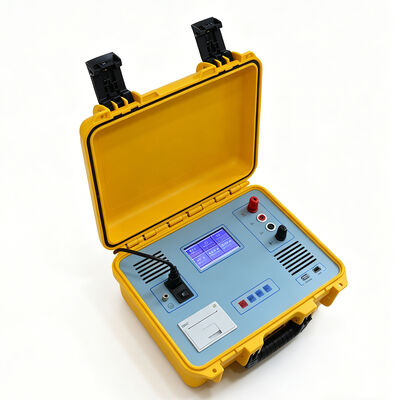

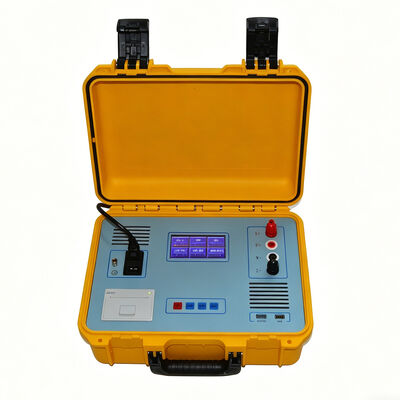

Portable 10A DC Winding Resistance Tester Current Resistance Tester With 0.5% Accuracy
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYRB |
| Minimum Order Quantity | 1 |
| Price | 900usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Measuring Range | 1-1999μΩ | Accuracy Class | 0.5% |
|---|---|---|---|
| Operating Temperature | -10℃~40℃ | Time Resolution | 1s |
| Current Resolutio | 1μΩ | Place Of Origin | Hubei, China |
| Resolution | 1μΩ | Measurement Accuracy | 0.5% |
| Measurement Range | 1-1999μΩ | Working Power Supply | AC220V ± 10%, 50Hz ± 1Hz |
| Weight | 12kg | Display Mode | Three-and-a-half-digit LCD |
| Volume | 380*350*260 Mm | Type | Testing Instruments |
| Application | Electrical Testing | Voltage | 50v |
| Protection Class | IP55 | Warranty | 2 Year |
| Power | 200W | Output Current | Auto,10A |
| Conversion Temperature | 20℃~150℃ | Data Storage | Group Of 1000 |
| Temperature | 0℃~40℃ | ||
| Highlight | 10a dc winding resistance tester,portable dc resistance tester,portable dc winding resistance tester |
||
Product Description
DC Winding Resistance Tester - Portable Testing Equipment Transformer Current Resistance Tester 10A with 2-Year Warranty
Product Features
- High output current instrument with lightweight design
- Six output current options with maximum output of 10A
- Wide measurement range from 0.5mΩ to 100KΩ with resistance temperature conversion capability
- Comprehensive protection circuit for reliable performance
- Lithium-ion battery powered for convenient field operation
- Sound discharge alarm to reduce operational errors
- AC and DC measurement methods to meet different site requirements
- 4.3-inch color LCD TFT display with 480*272 resolution and Chinese operation menu
- Real-time printing and output results
- RS485 interface for test data transmission to background systems
- Local storage capacity for up to 200 test records
- USB interface for data transfer to USB drives
- Comprehensive parameter settings including transformer test winding, tap position, test phase, and temperature values
