10A Transformer DC Resistance Tester Winding Resistance Test Measuring Instrument Portable
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-RDll |
| Minimum Order Quantity | 1 |
| Price | 850usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Measuring Range | 1-1999μΩ | Accuracy Class | 0.5% |
|---|---|---|---|
| Operating Temperature | -10℃~40℃ | Time Resolution | 1s |
| Current Resolutio | 1μΩ | Place Of Origin | Hubei, China |
| Resolution | 1μΩ | Measurement Accuracy | 0.5% |
| Measurement Range | 1-1999μΩ | Working Power Supply | AC220V ± 10%, 50Hz ± 1Hz |
| Weight | 12kg | Display Mode | Three-and-a-half-digit LCD |
| Volume | 380*350*260 Mm | Test Current | <20mA,40mA,200mA,1A,5A,10A |
| Smaller Resolution | 0.1μΩ | Data Storage | 1000 Groups |
| Working Temperature | -10℃-40℃ | Working Humidity | <90%RH |
| Voltage | AC220V±10% | Frequency | 50Hz±1Hz |
| Battery Parameters | 25.2V/5.2AH | ||
| Highlight | 10A dc winding resistance tester,dc winding resistance tester,Portable dielectric resistance test |
||
Product Description

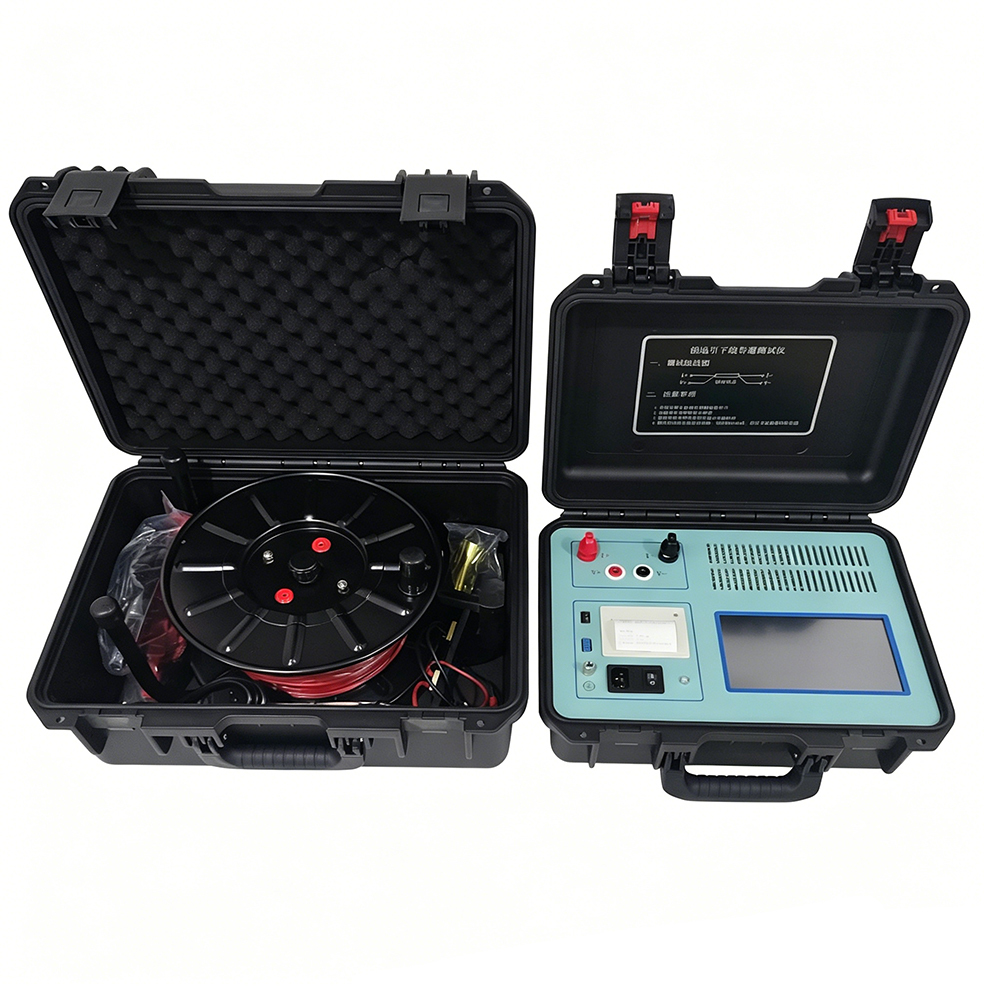

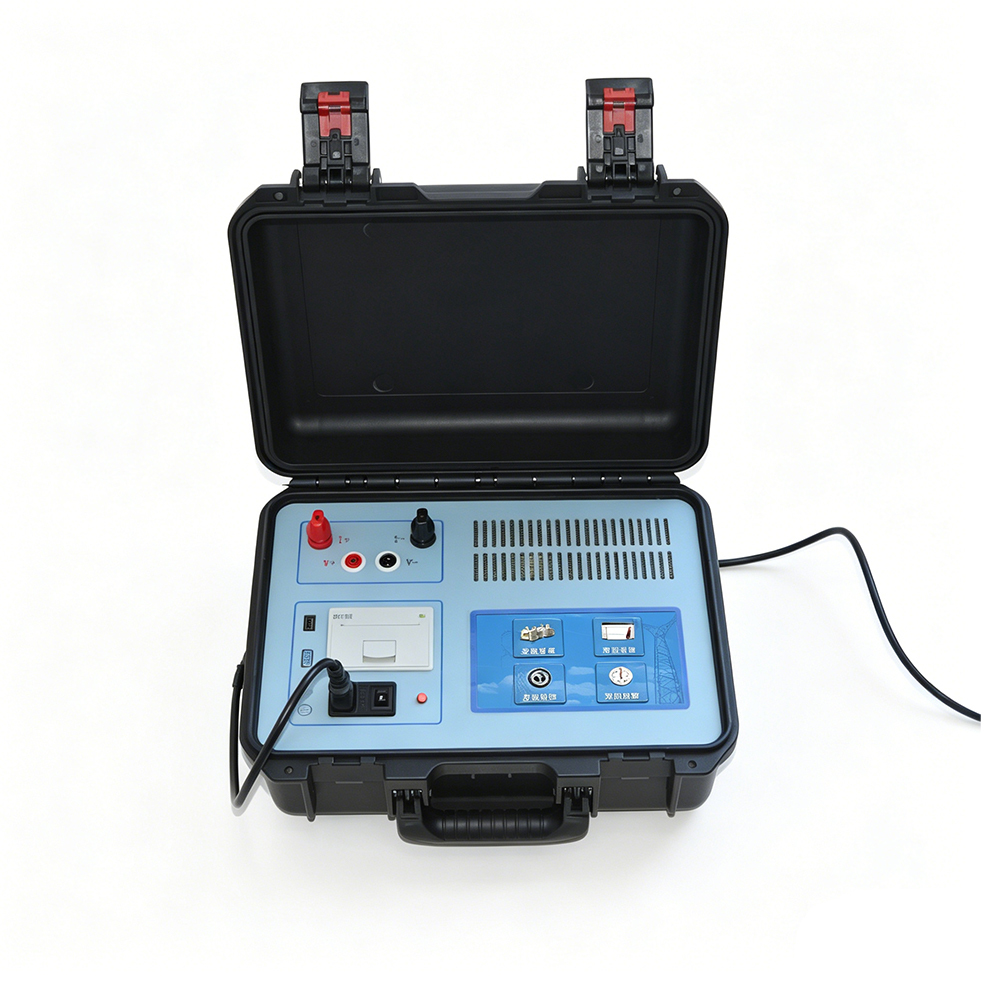

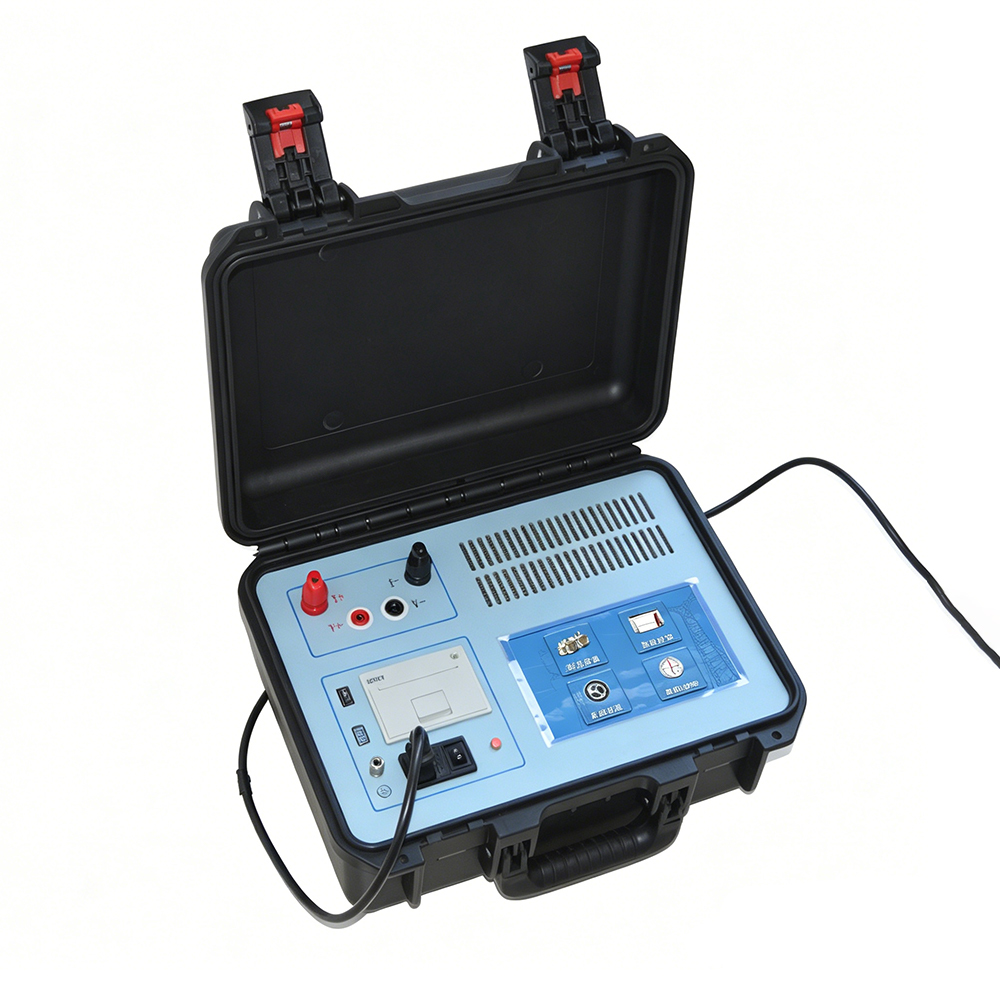

10A Transformer DC Resistance Tester
Product Overview
Professional winding resistance test instrument for 3-phase power transformers, featuring portable digital design and backed by a comprehensive 2-year warranty.
Key Features & Benefits
- Precision Measurement: Advanced four-wire measurement method with 0.05% accuracy and 0.1μΩ resolution for reliable test data across various scenarios
- Multi-Range Current Output: Wide current range from 10mA to 10A with multi-gear adjustable output, suitable for DC resistance tests of transformers, motors, inductors, and other electrical equipment
- Superior Anti-Interference: Frequency conversion anti-interference technology ensures stable operation even in harsh industrial environments with electromagnetic interference
- Intelligent Operation: Automatic range selection, one-key testing, and cloud data storage & analysis functions significantly reduce test time and improve efficiency
- Comprehensive Safety: Over-current, over-voltage, and discharge alarm protection functions ensure operator and equipment safety during testing
