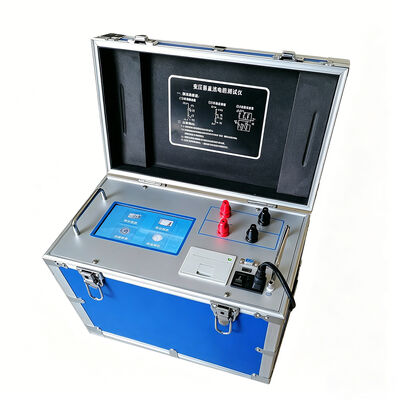

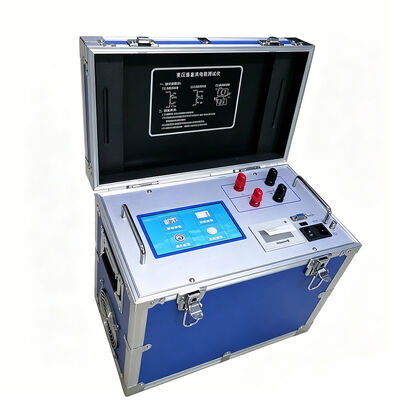

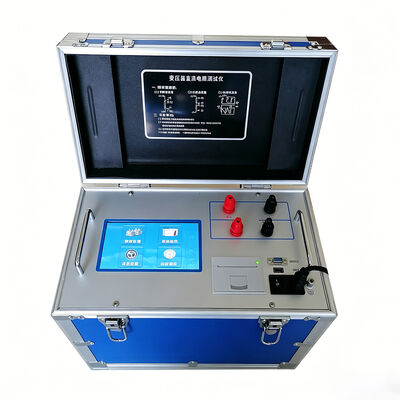

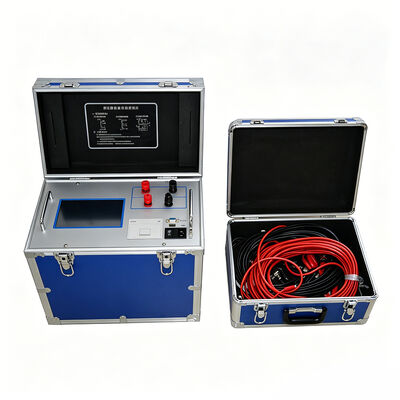

Transformer Winding DC Resistance Tester High Voltage Testing Equipment Megameter
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-RF |
| Minimum Order Quantity | 1 |
| Price | 2000 usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Measuring Range | 1-1999μΩ | Accuracy Class | 0.5% |
|---|---|---|---|
| Operating Temperature | -10℃~40℃ | Time Resolution | 1s |
| Current Resolutio | 1μΩ | Place Of Origin | Hubei, China |
| Resolution | Ratio-minimum 0.0001, Angle-0.01. | Measurement Accuracy | 0.5% |
| Measurement Range | 1-1999μΩ | Working Power Supply | AC220V ± 10%, 50Hz ± 1Hz |
| Weight | 12kg | Display Mode | Three-and-a-half-digit LCD |
| Volume | 380*350*260 Mm | Warranty | 1 Year |
| Customized Support | OEM | Material | Plastic Case |
| Power | Three-phase Precision Inverter Power Supply, | Test Range | Variable Ratio-0.9 ~ 10000 Angle-0-360. |
| Ratio Accuracy | ±0.1%+2words ( 0.9-500 ) ±0.2%+2words ( 501-2000 ) | Angular Accuracy | ±0.2° |
| Output Voltage | Automatically Adjusted According To Load. | Working Power | Supply AC 220v 10% 50 1Hz. |
| Highlight | Transformer dc resistance tester,Winding dc resistance tester,High Voltage dc insulation tester |
||
Product Description
Transformer Winding DC Resistance Tester Meter
Key Features
- High-speed microcontroller control with full automation and user-friendly operation
- Advanced power supply technology with multiple current ranges and wide measurement scope
- Temperature conversion capability for both copper and aluminum materials
- Comprehensive protection against back electromotive force for enhanced reliability
- Audible discharge alarm with clear visual indicators to prevent operational errors
- Rapid response enables on-load tap changer switching during measurement with automatic data refresh
- 7-inch color touchscreen display with Chinese/English language switching
- Built-in perpetual calendar clock with power-off data storage for 1,000 test records
- RS232 and USB interfaces for computer communication and USB data storage
- Mobile app compatibility for remote control and data upload
Product Images
Operating language can be customized according to customer requirements.
