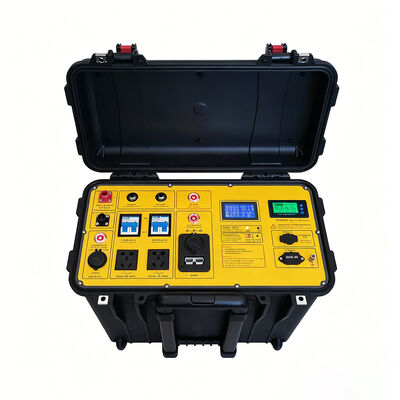

180W Portable Power Frequency Test Power Supply 3000W Pure Sine Wave Inverter
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-3300 |
| Minimum Order Quantity | 1 |
| Price | 2000-2500usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Portable Power Frequency Test Power Supply | Voltage | 220V Electrical Equipment |
|---|---|---|---|
| Warranty | 2 Years | Power | 180W |
| Place Of Origin | Hubei, China | Accuracy Class | High Accuracy |
| Protection Class | IP55 | Customized Support | OEM, ODM, OBM, Software Reengineering |
| Accuracy | ±0.5% | Operating Value Of Phase Current | 10A |
| Time Range | 1ms~9999s | Power Factor | 300VA/phase |
| Display Type | Digital Only | Resolution | 0.1μΩ |
| Place Of Origin | Hubei,China | Operating Temperature | -10~40℃ |
| Out Put Current | 0-10A | Screen | LCD |
| Rated Voltage | 220Vac | Output Power Supply | AC220V±10% 50Hz |
| Packing | Wooden/ Carton | ||
| Highlight | 3000W power quality analyzer,180W power quality analyzer,High Accuracy power quality analyzer |
||
Product Description
Portable Power Frequency Test Power Supply 3000W Pure Sine Wave Inverter
Product Overview
The Portable Power Frequency Test Power Supply is a high-performance 3000W pure sine wave inverter designed for reliable power testing and supply applications. Featuring advanced inverter technology and comprehensive protection systems, this unit provides stable, high-quality power for various industrial, commercial, and residential applications.
Performance Features
- High Performance & Strong Load Capacity: Advanced inverter technology delivers high-quality power supply compatible with various loads including household appliances, communication equipment, and industrial equipment.
- High Reliability: Built with advanced technology and redundant design, equipped with power frequency transformer and CPU control for stable performance.
- Comprehensive Protection Functions: Features input over/under voltage protection, output overload, over-current and short-circuit protection, and over-temperature protection for the entire unit.
- User-friendly Interface: LCD/LED display clearly shows operating status, output voltage, battery voltage, frequency, load rate, and faults with audible and visual alarm functions.
- Easy Operation: Intelligent on/off function with high automation level for convenient operation.
- Compact Structure: Modular design of internal functional components with simple structure and easy maintenance.
- Portable Design: Trolley case design for easy on-site use and transportation.
- High Efficiency & Energy Saving: Low no-load current saves energy when no load is connected.
- Intelligent Battery Management: Smart battery monitoring and management system extends battery life and improves utilization efficiency.
Technical Specifications
| Item | Specification |
|---|---|
| AC Output Voltage | AC 220V (±10% rms) |
| AC Output Frequency | 50/60Hz ± 0.3Hz |
| Efficiency | > 87% |
| DC Output Voltage / Current | DC 5V/3.1A, DC 12V/20A, DC 24V/10A, DC 48V(±8V)/50A |
| Rated Output Power | 3000W |
| Peak Output Power | 4500W |
| Overload Protection (SMPS load) | (110% < Load < 125%) ±10%: Output voltage cuts off after 15 minutes (125% < Load < 150%) ±10%: Output voltage cuts off after 10 seconds Load > 150% ±10%: Output voltage cuts off after 0.2 seconds |
| Low Voltage Warning | 42.0Vdc ± 1.2Vdc (for 48V power supply) |
| Low Voltage Auto Shutdown | 40.0Vdc ± 1.2Vdc (for 48V power supply) |
| Input Over-voltage Warning & Shutdown | 64Vdc ± 1.2Vdc (for 48V power supply) |
| Input Over-voltage Recovery | 62.0Vdc ± 1.2Vdc (for 48V power supply) |
| Cooling | Variable-speed fan, use in well-ventilated conditions |
| Operating Environment & Noise | Temperature & Humidity: 0-40℃, 0-95% RH (non-condensing) Noise: < 60dB |
| Built-in Battery Capacity | 50Ah / 48V |

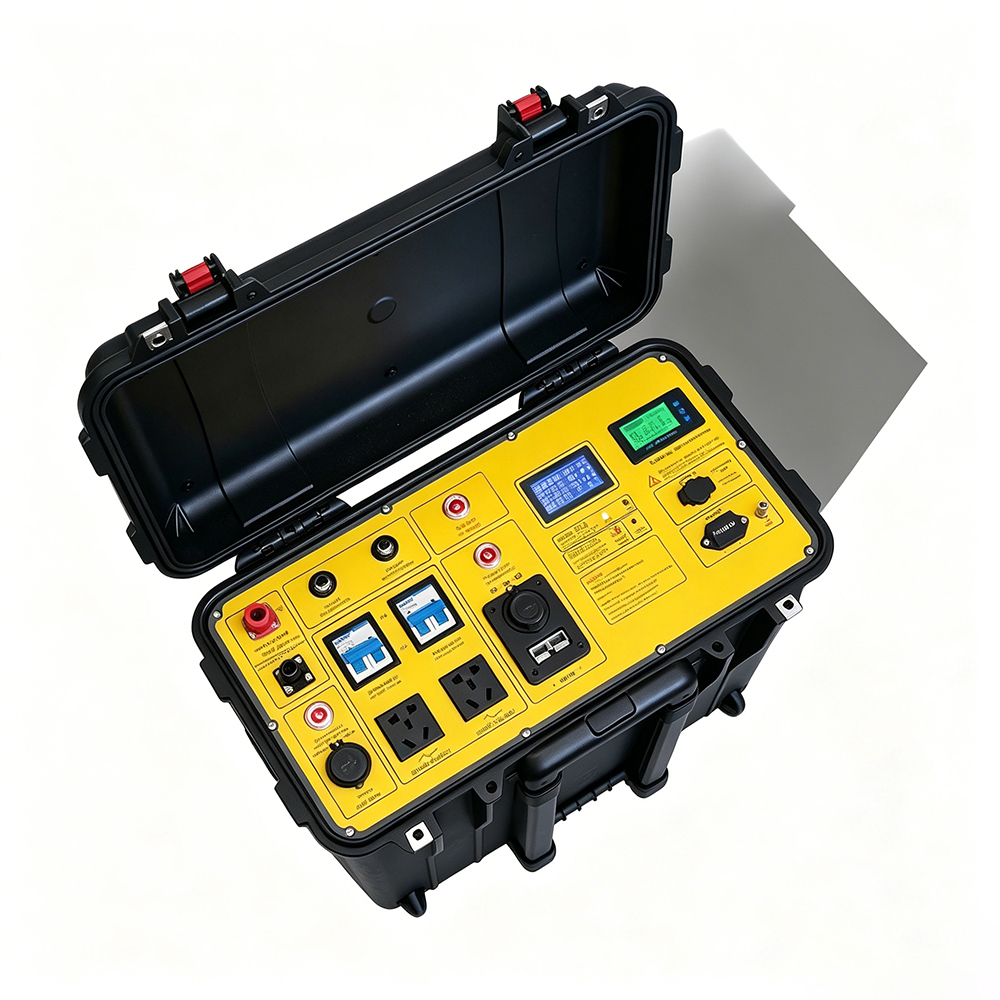

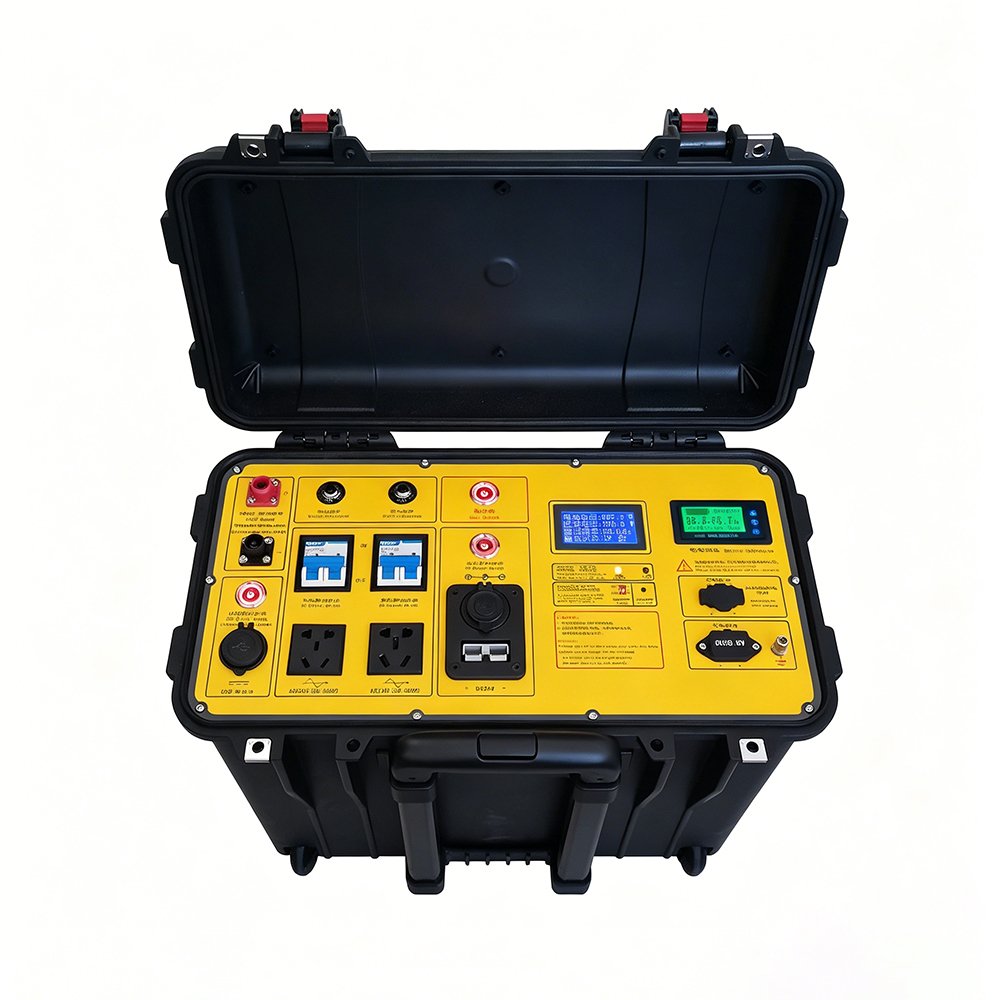

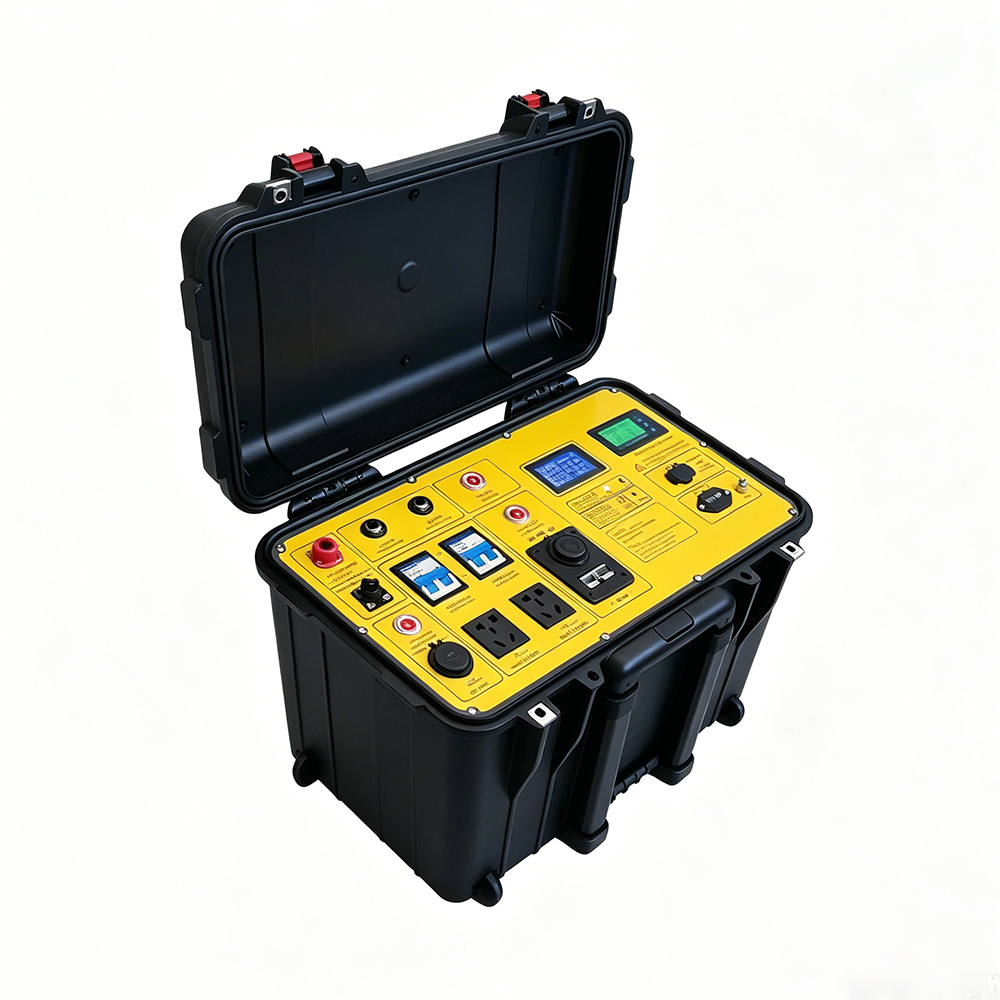

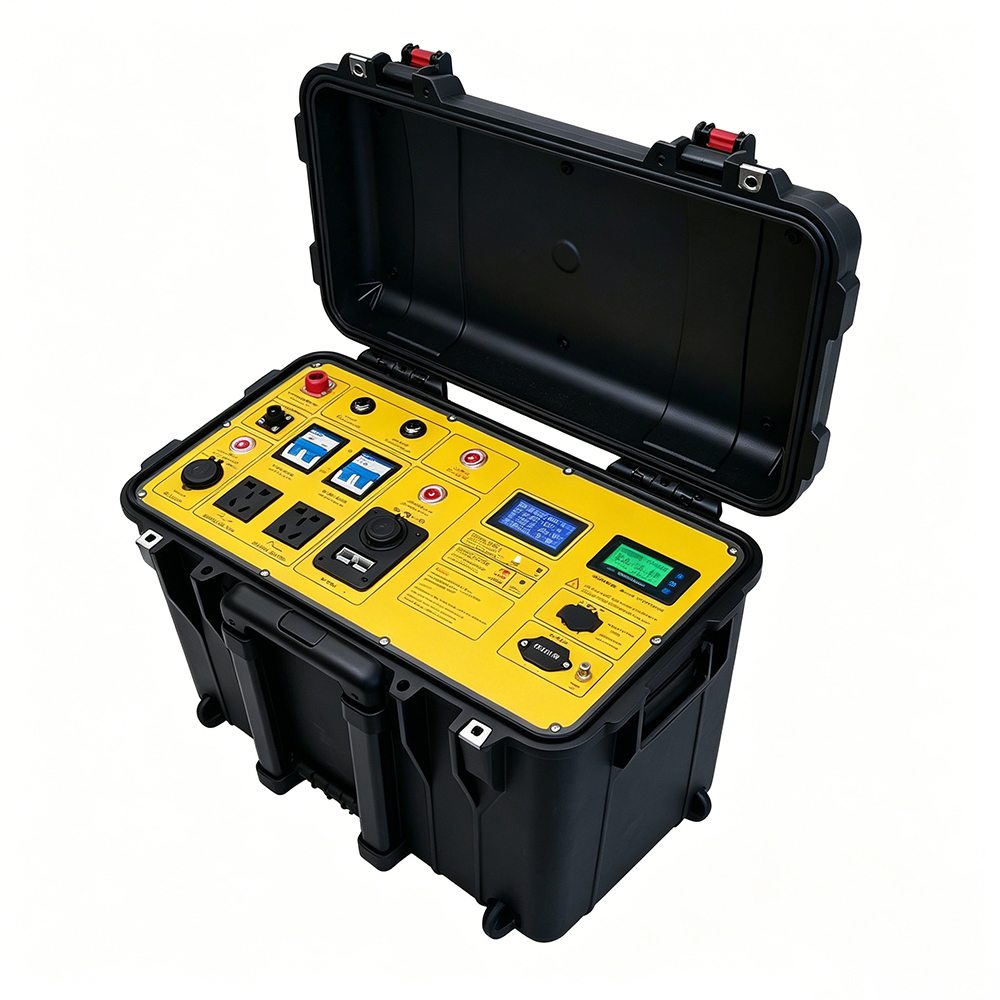

Product Images
