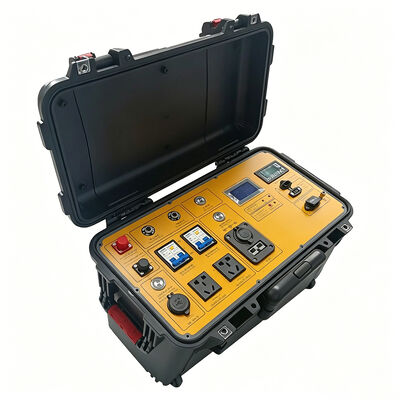

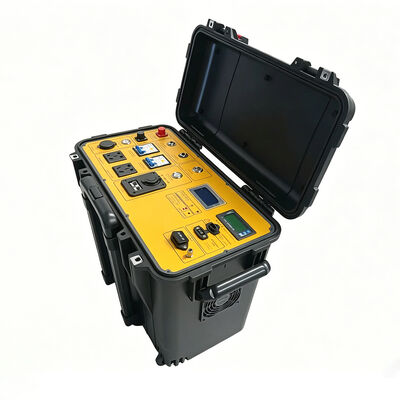

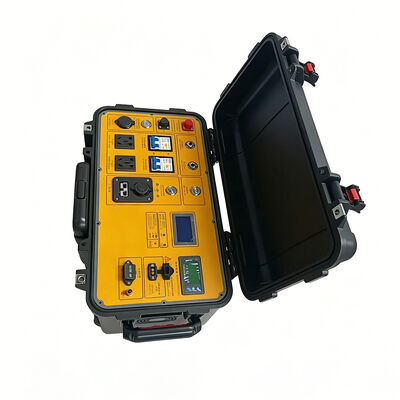

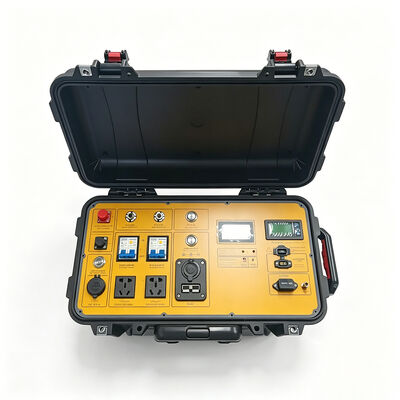

2000W Emergency Power Supply Multi Voltage DC Outputs Overload Low Voltage Protection
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-3200 |
| Minimum Order Quantity | 1 |
| Price | 2000-2500usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Protection Class | IP65 |
|---|---|---|---|
| Customized Support | OBM, ODM, OEM | Warranty | 2 Year |
| Power Consumption Of The Whole Machine | 30W (static) And 150W (working) | PT Error Accuracy | 0.05 Level |
| Environmental Temperature | 0-40℃ | Place Of Origin | Hubei, China |
| Environmental Humidity | <85% At 25℃ | Voltage | 220V |
| Power | 1200KV | Application | Electrical Testing |
| Accuracy | 0.2% | Rated Output Power | 2000W |
| Peak Output Power | 3000W | AC Output | 220V (±10% Rms), 50/60Hz Switchable |
| DC Output Ports | 5V/3.1A, 12V/20A, 24V/10A, 48V/50A | Efficiency | > 87% |
| Built-in Battery Capacity | 50Ah / 48V | Protection Features | Overload, Low Voltage Warning, Overvoltage Protection With Auto Shutdown |
| Cooling | Variable-speed Fan (requires Ventilation) | Operating Environment | 0-40℃, 0-95% RH (non-condensing) |
| Noise Level | < 60dB | ||
| Highlight | 2000W emergency power supply,220V emergency power supply,IP65 emergency power supply for house |
||
Product Description
2000W Emergency Power Supply with LCD Display, Multi-Voltage DC Outputs, Overload & Low Voltage Protection
Product Overview
This 2000W emergency power supply features an LCD display, multiple voltage DC outputs, and comprehensive protection systems including overload and low voltage protection for reliable power backup solutions.
Performance Features
- High Performance & Strong Load Capacity: Advanced inverter technology delivers high-quality power supply compatible with various loads including household appliances, communication equipment, and industrial equipment.
- High Reliability: Built with advanced technology and redundant design, equipped with power frequency transformer and CPU control for stable performance.
- Comprehensive Protection: Features input over/under voltage protection, output overload, over-current and short-circuit protection, plus over-temperature protection for the entire unit.
- User-Friendly Interface: LCD/LED display clearly shows operating status, output voltage, battery voltage, frequency, load rate, and faults with audible and visual alarm functions.
- Easy Operation: Intelligent on/off function with high automation level for convenient operation.
- Compact Structure: Modular design of internal functional components with simple structure for easy maintenance.
- Portable Design: Trolley case design for easy on-site use and mobility.
- High Efficiency & Energy Saving: Low no-load current saves energy when no load is connected.
- Intelligent Battery Management: Smart battery monitoring and management system extends battery life and improves utilization efficiency.
Technical Specifications
| Parameter | Specification |
|---|---|
| AC Output Voltage | AC 220V (±10% rms) |
| AC Output Frequency | 50/60Hz ± 0.3Hz |
| Efficiency | > 87% |
| DC Output Voltage / Current | DC 5V/3.1A, DC 12V/20A, DC 24V/10A, DC 48V(±8V)/50A |
| Rated Output Power | 2000W |
| Peak Output Power | 3000W |
| Overload Protection (SMPS load) | (110% < Load < 125%) ±10%: Output voltage cuts off after 15 minutes (125% < Load < 150%) ±10%: Output voltage cuts off after 10 seconds Load > 150% ±10%: Output voltage cuts off after 0.2 seconds |
| Low Voltage Warning | 42.0Vdc ± 1.2Vdc (for 48V power supply) |
| Low Voltage Auto Shutdown | 40.0Vdc ± 1.2Vdc (for 48V power supply) |
| Input Over-voltage Warning & Shutdown | 64Vdc ± 1.2Vdc (for 48V power supply) |
| Input Over-voltage Recovery | 62.0Vdc ± 1.2Vdc (for 48V power supply) |
| Cooling | Variable-speed fan, use in well-ventilated conditions |
| Operating Environment & Noise | Temperature & Humidity: 0-40℃, 0-95% RH (non-condensing) Noise: < 60dB |
| Built-in Battery Capacity | 50Ah / 48V |
Product Images
Intelligent Battery Testing Equipment Interface
Wireless Monitoring Module Setup
Battery Discharge Testing Operation
