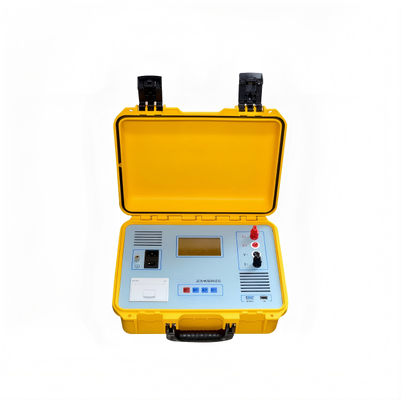

10A High Precision Portable Transformer DC Winding Resistance Tester
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYRB |
| Minimum Order Quantity | 1 |
| Price | 900usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Measuring Range | 1-1999μΩ | Accuracy Class | 0.5% |
|---|---|---|---|
| Operating Temperature | -10℃~40℃ | Time Resolution | 1s |
| Current Resolutio | 1μΩ | Place Of Origin | Hubei, China |
| Resolution | 1μΩ | Measurement Accuracy | 0.5% |
| Measurement Range | 1-1999μΩ | Working Power Supply | AC220V ± 10%, 50Hz ± 1Hz |
| Weight | 12kg | Display Mode | Three-and-a-half-digit LCD |
| Volume | 380*350*260 Mm | Type | Testing Instruments |
| Application | Electrical Testing | Voltage | 50v |
| Protection Class | IP55 | Warranty | 2 Year |
| Power | 200W | Output Current | Auto,10A |
| Conversion Temperature | 20℃~150℃ | Data Storage | Group Of 1000 |
| Temperature | 0℃~40℃ | ||
| Highlight | 10A portable resistance tester,DC winding resistance tester,high precision transformer tester |
||
Product Description
10A High Precision Portable Transformer DC Winding Resistance Tester
Basic Info.
Model NO.
MYRB
Display Type
Digital Only
Certification
CE
Customized
Customized
Model No.
MYRB
Output Current
Auto,<5mA,<20mA,40mA,200mA,1A,5A,10A
Accuracy
2‰±2μω
Resolution
0.1μω
Operating Temperature
-20-40 ºC
Ambient Humidity
≤80%Rh, Non-Condensing
Power Supply
AC 220V±10V,50Hz±1 Hz
Max. Power Consumption
200W, Optional Battery
Measurement Range
1μω-2kΩ
Weight
6.45kg
Dimension
360*290*170mm
Transport Package
Wooden Box
Specification
360*290*170mm
Trademark
MINGYANG
Origin
Wuhan, China
HS Code
9030332000
Production Capacity
1000/Year
Product Description
MYRB transformer DC resistance is the transformer manufacturing semi-finished products, finished products factory test, installation, overhaul, change the tap changer, after the handover test and power department preventive test must be measured items. It can check the welding quality of the winding joints and whether there is any turn-to-turn short-circuit in the winding, whether the contact of each position of the voltage tap-changer is good and whether the actual position of the tap-changer matches with the indicated position, whether there is any fracture of the lead wire, whether there is any breakage of multi-stranded conductors in parallel winding and whether there is any breakage of strands and so on. In order to meet the needs of transformer DC resistance rapid measurement, our company developed the HZP-10B DC resistance tester. The instrument adopts new power supply technology, featuring small volume, light weight, large output current, good repeatability, strong anti-interference ability, and perfect protection function, etc. The whole machine is controlled by high-speed microcontroller. The whole machine is controlled by high-speed microcontroller, with high degree of automation, automatic discharge and discharge alarm function. The instrument has high testing precision, easy operation, and can realize the rapid measurement of transformer direct resistance.
Product Features
- High output current instrument with lightweight design
- Six output current options with maximum output of 10A
- Wide measurement range from 0.5mΩ to 100KΩ with resistance temperature conversion capability
- Comprehensive protection circuit for reliable performance
- Lithium-ion battery powered for convenient field operation
- Sound discharge alarm to reduce operational errors
- AC and DC measurement methods to meet different site requirements
- 4.3-inch color LCD TFT display with 480*272 resolution and Chinese operation menu
- Real-time printing and output results
- RS485 interface for test data transmission to background systems
- Local storage capacity for up to 200 test records
- USB interface for data transfer to USB drives
- Comprehensive parameter settings including transformer test winding, tap position, test phase, and temperature values
Pruduct Parameters
| Output Current Levels | Auto,<5mA, <20mA,40mA,200mA,1A,5A,10A |
| Measurement Range | 10A:0.5mΩ~800mΩ 5A:2mΩ~2Ω 1A:5mΩ~10Ω 200mA:100mΩ~50Ω 40mA:500mΩ~250Ω ±(0.2%+2 digits) |
| Accuracy |
<20mA: 50Ω~50KΩ ±(0.5%+2 digits) |
| Min. Resolution |
0.1μΩ |
| Operating Temperature |
-20~40ºC |
| Ambient Humidity |
≤80%RH, non-condensing |
| Power Supply |
AC 220V±10V,50Hz±1 Hz, Fuse 2A |
| Display | liquid crystal display, Resistance display with 4 digits |
| Data Storage | 1000 groups |
| Max. power consumption | 200W, Optional Battery |

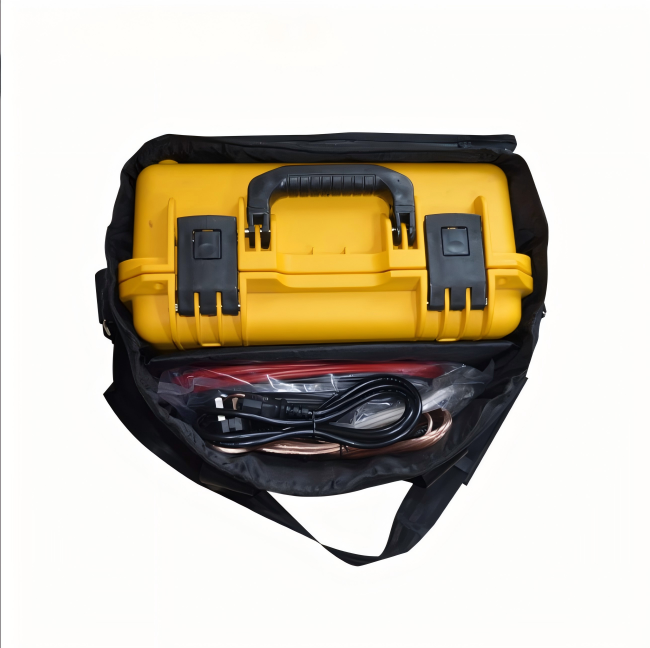

| Overall Dimension | Main unit:360*290*170(mm) string bag:360*230*290(mm) |
| Weight | 6.45KG |
| Length of test line | Standard 10 meters, length can be customized |

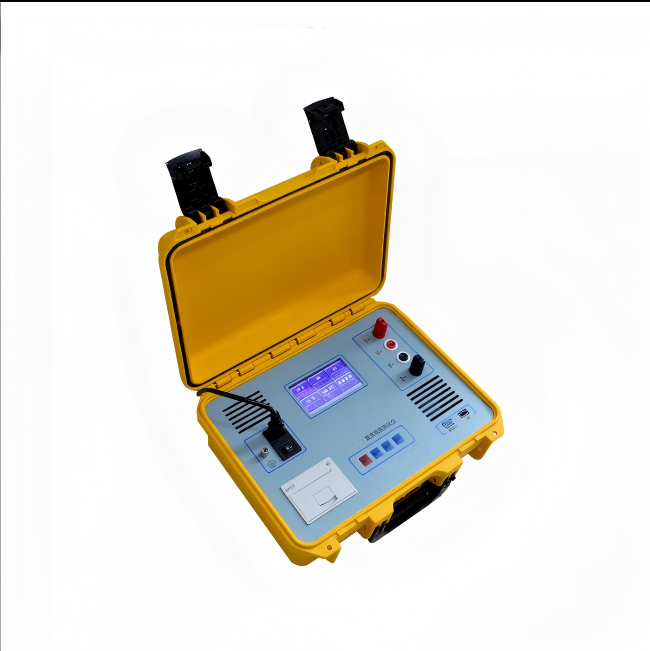

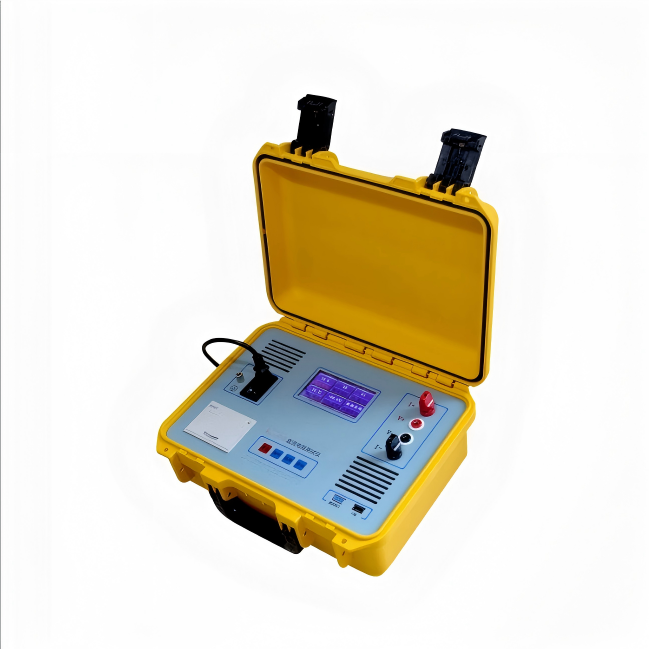

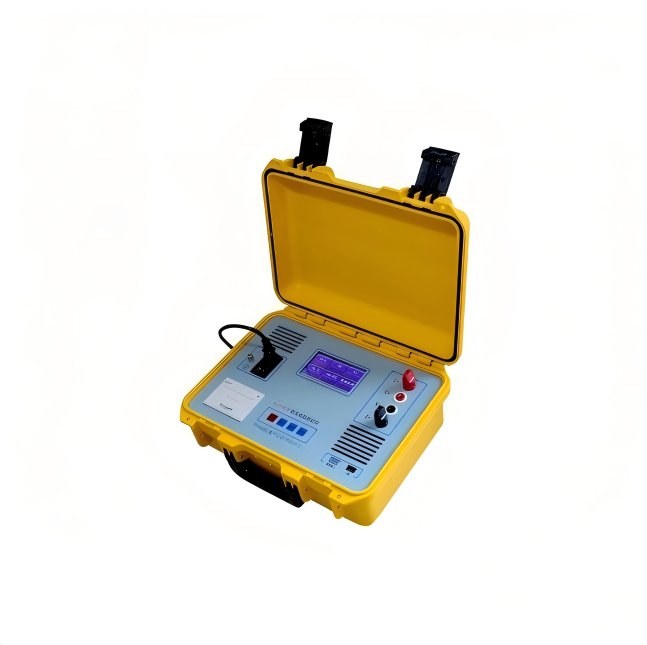

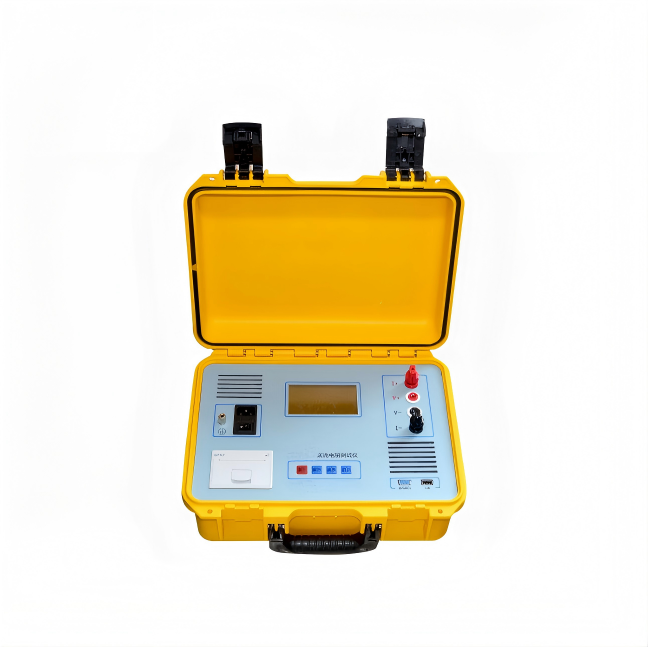

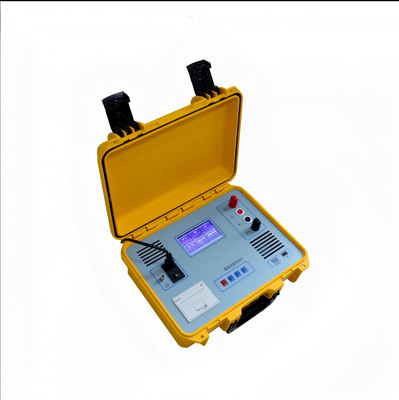

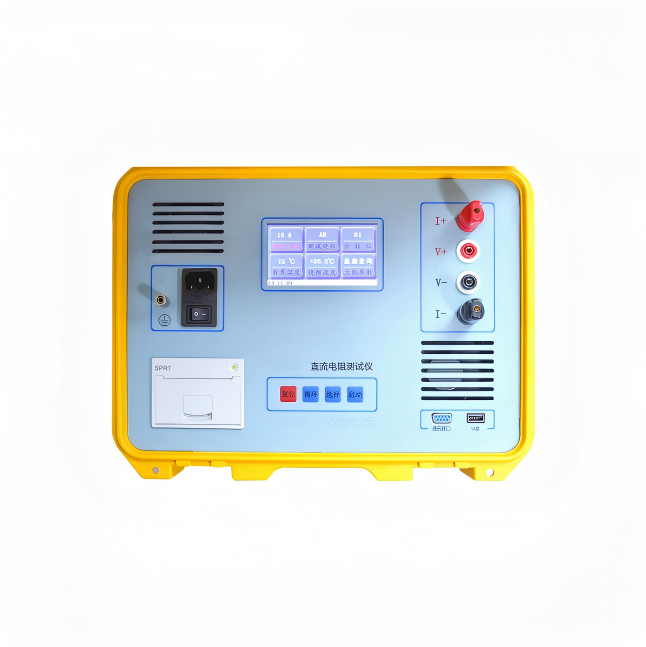

Product Gallery
