Large Screen Battery Handheld Micro Ohmmeter for Transformer Winding Resistance Testing
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYFT |
| Minimum Order Quantity | 1 |
| Price | 2200usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Measuring Range | 1-1999μΩ | Accuracy Class | 0.5% |
|---|---|---|---|
| Operating Temperature | -10℃~40℃ | Time Resolution | 1s |
| Current Resolutio | 1μΩ | Place Of Origin | Hubei, China |
| Resolution | 1μΩ | Measurement Accuracy | 0.5% |
| Measurement Range | 1-1999μΩ | Working Power Supply | AC220V ± 10%, 50Hz ± 1Hz |
| Weight | 8kg | Display Mode | Three-and-a-half-digit LCD |
| Volume | 380*350*260 Mm | Type | Testing Machine |
| Protection Class | IP55 | Customized Support | OEM, ODM, OBM |
| Place Of Origin | Hebei, China | Minimum Resolution | 0.1μΩ |
| Battery Specifications | 14.8V 5200mAh | Ambient Temperature | 0℃-40℃ |
| Voltage | 220 V | Warranty | 2 Years |
| Power | 200w | Operation Method | Touch Screen Operation |
| Test Lead Length | Standard 5 Meters, Length Can Be Customized | Ambient Humidity | ≤85%RH |
| Dimension | 425*335*210mm | ||
| Highlight | large screen handheld micro ohmmeter,transformer winding resistance tester,battery powered resistance tester |
||
Product Description

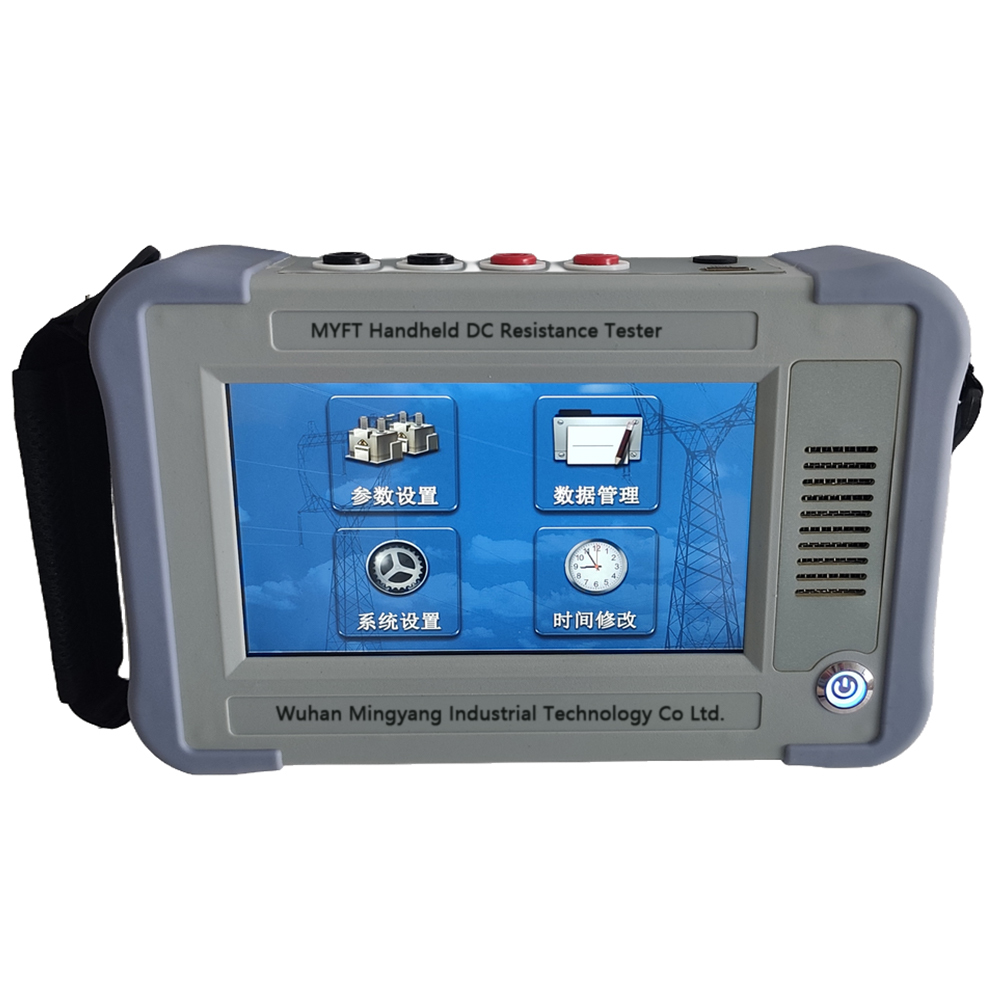

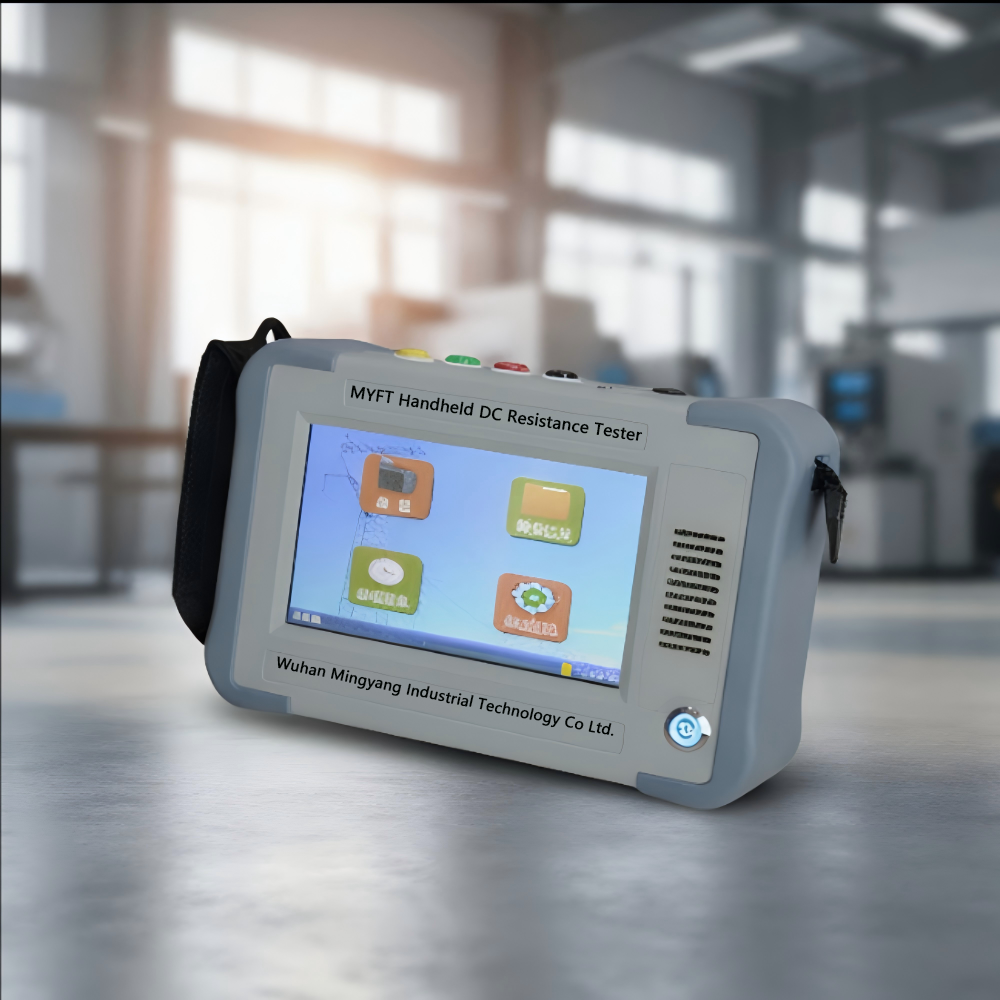

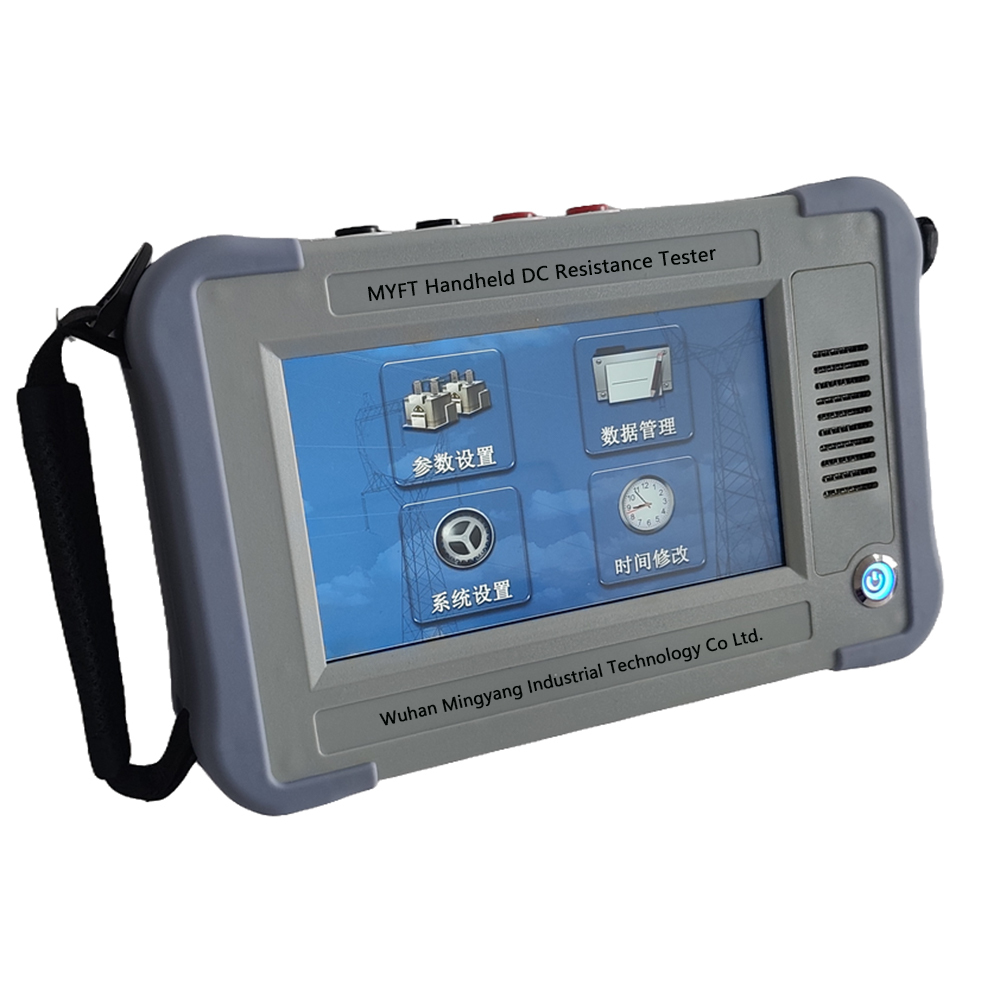

Large Screen Battery Handheld Micro Ohmmeter for Transformer Winding Resistance Testing
This high-accuracy, battery-powered DC micro-ohmmeter is designed for measuring DC resistance in small and medium-sized transformers, generators, motors, and mutual inductors. Featuring multiple current gears to accommodate various measurement requirements, the instrument comes standard with lithium batteries for convenient field operation.
Product description
Transformer DC resistance is a must-test item for semi-finished products and finished products in transformer manufacturing, factory testing, installation, overhaul, after changing the tap changer, handover test and preventive test of the power department. In order to meet the need for rapid measurement of transformer DC resistance, our company has developed the MYFT handheld DC resistance tester. This instrument adopts new power supply technology and has the characteristics of small size, light weight, large output current, good repeatability, strong anti-interference ability, and complete protection functions. The whole machine is controlled by a high-speed microcontroller, has a high degree of automation, and has automatic discharge and discharge alarm functions. The instrument has high testing accuracy and is easy to operate, and can quickly measure the direct resistance of the transformer.
Key Features

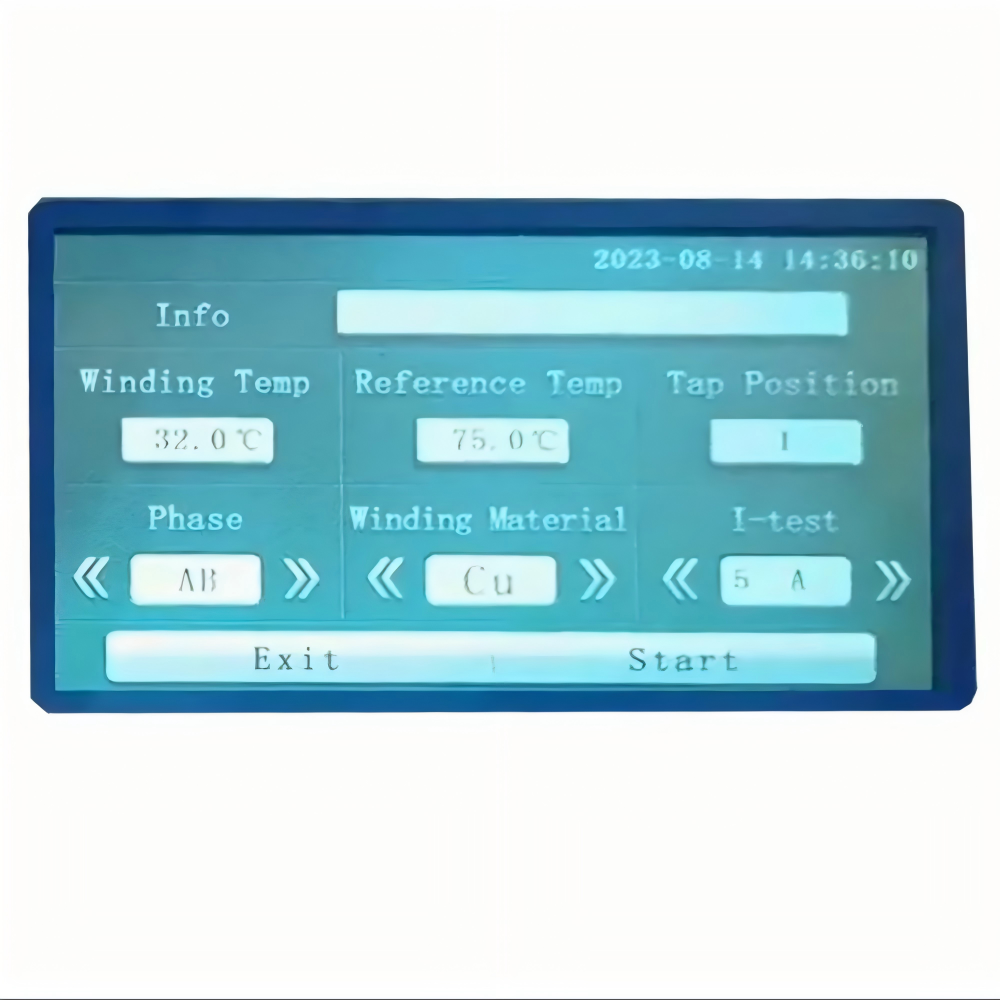

- High-resolution 65K true color seven-inch touch screen with Chinese/English interface switching
- Clear display visibility even under strong lighting conditions
- Powered by internal battery or power adapter for outdoor operation
- Copper and aluminum temperature conversion function for resistance value comparison
- Digital battery management with remaining power display and alarm system
- Non-power-off data storage with perpetual calendar (stores 1000 test data sets)

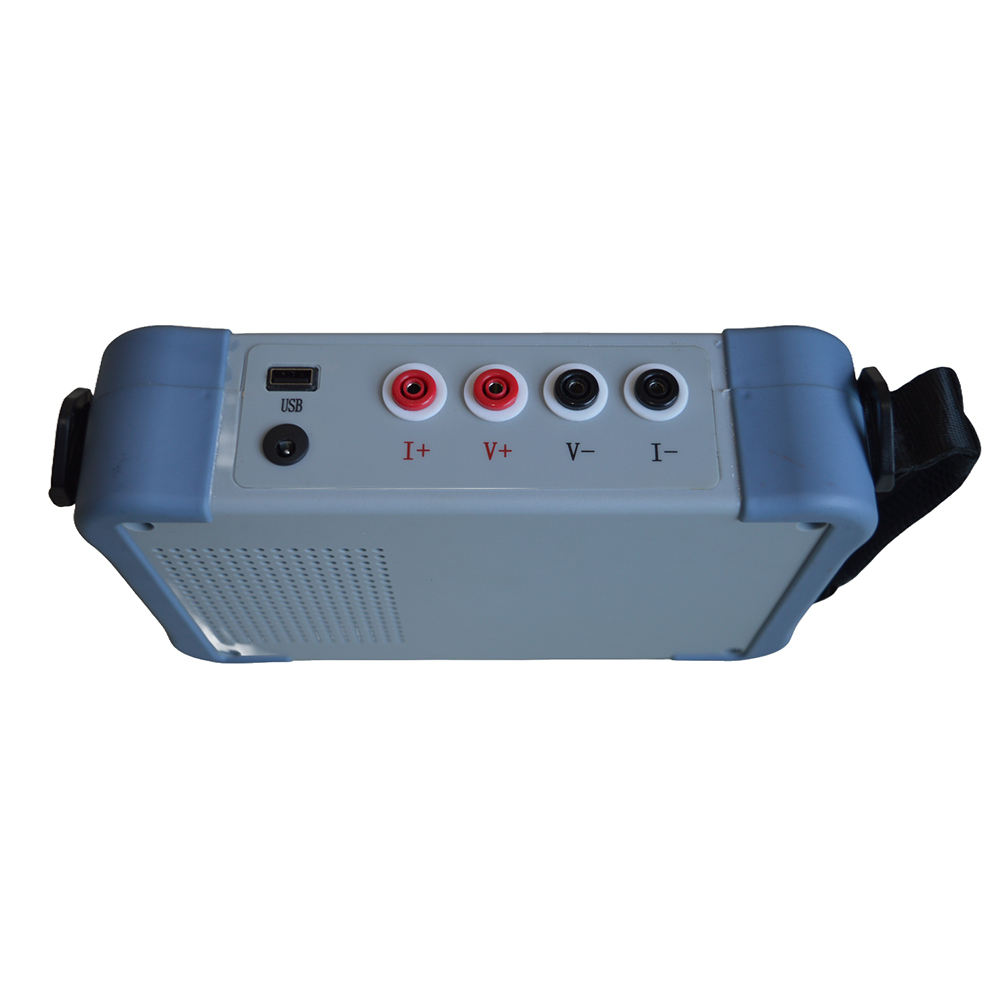

- USB interface and printer expansion interface with optional external micro printer
- Comprehensive protection features including discharge sound alarm and voltage reverse connection protection
- 10A measurement capability for large-capacity distribution transformer testing
- Optional Bluetooth module for Android device connectivity and smart management
- Direct load switching during measurement with automatic data refresh
Technical Specifications
| Test Current | Measuring Range | Accuracy |
|---|---|---|
| <20mA | 100Ω-50KΩ | ±(0.2%+2) |
| 40mA | 1Ω-200Ω | |
| 200mA | 100mΩ-50Ω | |
| 1A | 10mΩ-10Ω | |
| 3A | 5mΩ-3Ω | |
| 10A | 0.5mΩ-0.2Ω |
| Minimum Resolution | 0.1μΩ |
| Operation Method | Touch screen operation |
| Dimensions | Host: 252*160*65(mm) | Outer box: 425*335*210(mm) |
| Weight | Host: 2KG | Outer box: 8KG |
| Battery Specifications | 14.8V 5200mAh |
| Test Lead Length | Standard 5 meters (custom lengths available) |
