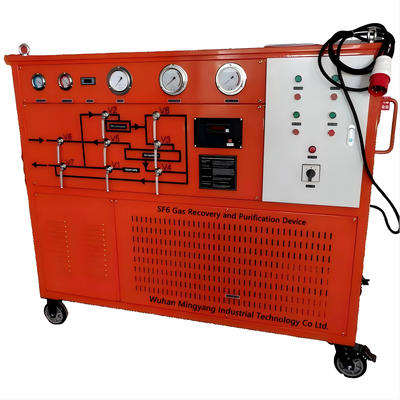

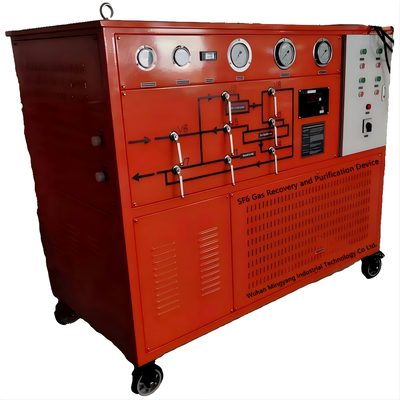

MY-115 SF6 Gas Recovery and Purification Unit, SF6 Gas Recycling Refilled Device for HV Switchgear Maintenance
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-115 |
| Minimum Order Quantity | 1 |
| Price | 8000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 500/Month |
Product Details
| Types | Automatic | Model No | MY-115 |
|---|---|---|---|
| Control Mode | Manual Control | Ultimate Vacuum | 10Pa |
| SF6 Recovery Compressor | 12m³/h | Filter Particle Size | 0.02μm |
| Initial Recovery Pressure | ≤0.8MPa | Final Recovery Pressure | ≤53kPa |
| Nominal Liquid Storage Capacity | 150kg | Maximum Storage Pressure | 3.8MPa |
| Annual Leakage Rate | ≤1% | Noise Level | ≤75dB(A) |
| Operating Temperature | -10℃~40℃ | Rated Power | ≤5KW |
| Power Supply | AC380V Three-phase Five-wire,50Hz | Vacuum Pump Displacement | 60m³/h |
| Transport Package | Wooden Case | Brand | MINGYANG |
| Monthly Output | 500 Sets |
Product Description
MY-115 SF6 Gas Recovery and Purification Unit, SF6 Gas Recycling Refilled Device for HV Switchgear Maintenance
Product Description
Series resonance, power frequency withstand voltage test device, high-voltage generator and other 100 test and detection instruments
This device consists of SF6 gas recovery and purification equipment. The main advantages of the product involved are the ability to directly store the recovered SF6 gas in liquid form in a container, and the ability to recover the residual pressure inside the GIS to 53Kpa (absolute pressure). It has a small volume, is easy to move and place, has a fast vacuum pumping speed, can dry and filter the recovered SF6 gas, and can also recharge SF6 gas to SF6 electrical equipment.
Basic Info.
Model NO.
MY-115
Type
Gas Detector
Accuracy Grade
<1%
Display
Needle
Control
Manual Control
Power Source
AC380V
Product Name
SF6 Gas Recovery and Purification Unit
Vacuum Pump Speed
60m³/h
Ultimate Vacuum
10Pa
Vacuum Pump
Domestically Produced Bipolar Vacuum Pump
SF6 Recovery Compressor
12 m³/h
Pressure
2.5 MPa
Filter Particle Size
0.02μm
Oil Content
High-Efficiency (ppm)
Acid Value
0.1ppm
Hydrolyzable Fluoride
0.2ppm
Transport Package
Wooden Case
Trademark
MINGYANG
Origin
Hubei, China
Production Capacity
500 Set/Sets Per Month
Product Parameters
|
Main Technical Parameters
|
|
|
Recovery
|
|
|
Initial Recovery Pressure
|
≤ 0.8 MPa
|
|
Final Recovery Pressure
|
≤ 53 kPa
|
|
Recovery Time
|
For a volume of 1 m³ of SF6 gas with an initial pressure of 0.8 MPa, the recovery time is less than 2.5 hours to a final pressure of 53 kPa
|
|
Filling
|
For a volume of 1 m³ of SF6 gas with an initial pressure of 133 Pa, the recovery time is less than 0.8 hours to a final pressure of 0.8 MPa
|
|
Evacuation
|
The ultimate vacuum level of the device is ≤ 10 Pa.
|
|
For a volume of 1 m³ of SF6 gas with an initial pressure of 0.1 MPa, the recovery time is less than 1 hour to a final pressure of 133 Pa
|
|
|
Storage
|
|
|
Storage container capacity
|
0.151 m³
|
|
Nominal liquid storage capacity
|
150 kg
|
|
Maximum storage pressure
|
3.8 MPa
|
|
Purification
|
For SF6 gas with a water content of less than 1000 ppm (volume ratio), this device recovers and purifies SF6 gas to less than 60 ppm (weight ratio) and less than 10 ppm (weight ratio) of water content after a single purification step
|
|
|
|
|
Annual leakage rate
|
≤ 1% of nominal storage capacity
|
|
Noise
|
≤ 75 dB(A) sound pressure level
|
|
Operating temperature
|
-10°C to 40°C
|
|
Power
|
≤ 5 kW
|
|
Power supply
|
AC three-phase five-wire, 50 Hz, 380 V ± 10%
|
•Integrated design and small size for easy mobility and use
•Built in filtration and adsorption system can adsorb impurities, moisture, decomposition products, and oil in SF6 gas
•The efficient filtration and maintenance free system greatly ensures the quality of SF6 gas recovery
•The built-in temperature protection system can work normally even at -20℃
•Built in phase sequence protector, which can always eliminate the concern of the host reversing due to phase sequence errors
•High quality casters will greatly protect the floor paint and reduce the manual labor required for pushing
•Built in phase sequence protector, which can always eliminate the concern of the host reversing due to phase sequence errors
•High quality casters will greatly protect the floor paint and reduce the manual labor required for pushing
