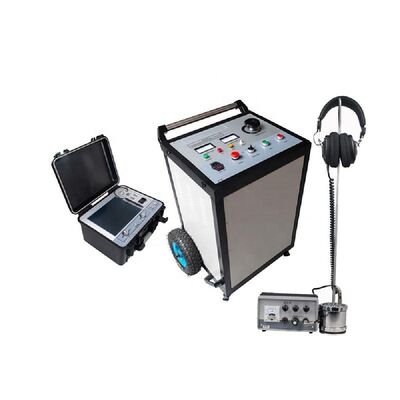

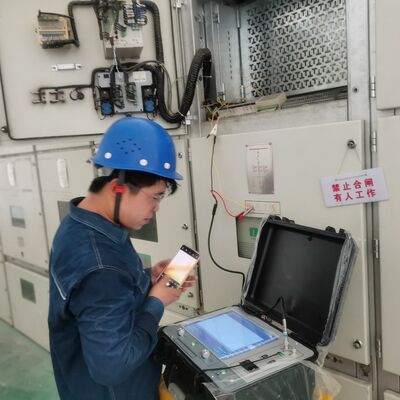

MY-117 Touch Screen Cable Fault Locator High Precision Cable Fault Testing Equipment
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-117 |
| Minimum Order Quantity | 1 |
| Price | 1500usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Supply Ability | 1000/Month |
Product Details
| Types | Automatic | Model No | MY-117 |
|---|---|---|---|
| Display | 12.1-inch Touch Color LCD Screen | Sampling Frequency | 400MHz |
| Low Voltage Pulse Amplitude | 400V | Pulse Width | 0.1μs/2μs /0.25μs/2μs/4μs Optional |
| Minimum Resolution | 0.5m | Test Blind Area | ≤10m |
| Ranging Range | ≤68km | Measurement Error | ≤±(0.5%×L+1m), L=Cable Length |
| Power Supply | Built-in Rechargeable Lithium Battery 10400mAh | Charging Input | AC110V~240V,50/60Hz |
| Working Temperature | -20℃ ~ +65℃ | Relative Humidity | ≤90% |
| Atmospheric Pressure | 750±30mmHg | Interface | Standard USB Printer Interface |
| Certification | CE, ISO | Dimension | 428×350×230mm |
| Weight | 10kg | Transport Package | Wooden Box With Foam Inside |
| Brand | MINGYANG | Origin | Hubei, China |
| Monthly Production Capacity | 1000 Sets |
Product Description

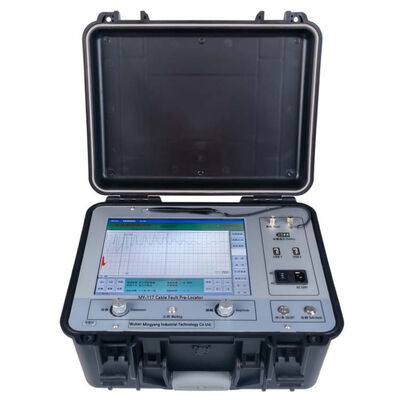

MY-117 Touch Screen Cable Fault Locator High Precision Cable Fault Testing Equipment
Product Description
Product characteristics

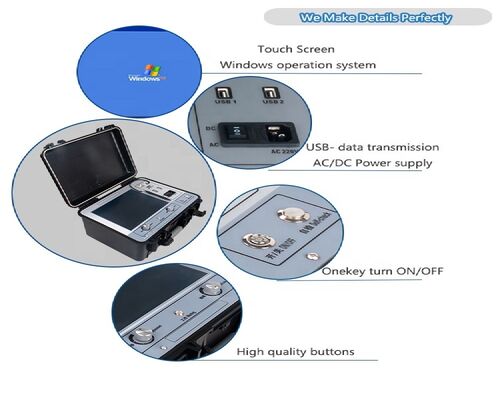

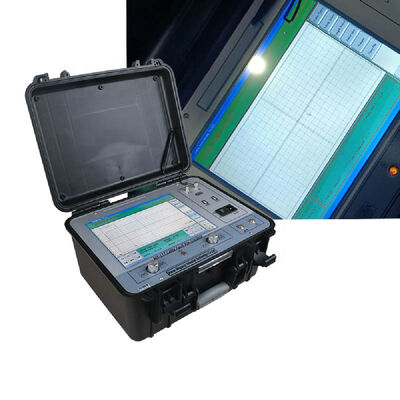

1, 12.1 inch industrial computer control, touch operation mode;
2, XP operating system, convenient operation mode;
3, With the function of measuring wave speed and fault distance;
4, Automatic continuous sampling, waveform capture timely and accurate;
5, The instrument adopts the latest technology of embedded industrial computer with impact high-voltage flashover method and low-voltage pulse method;
6, With standard printer USB interface;
1, 12.1 inch industrial computer control, touch operation mode;
2, XP operating system, convenient operation mode;
3, With the function of measuring wave speed and fault distance;
4, Automatic continuous sampling, waveform capture timely and accurate;
5, The instrument adopts the latest technology of embedded industrial computer with impact high-voltage flashover method and low-voltage pulse method;
6, With standard printer USB interface;
Basic Info.
Model NO.
MY-117
Usage
Digital Cable Tester
Power
Electricity
Certification
CE, ISO
Customized
Customized
Color
Black
Weight
10kg
Minimum Resolution
0.5m
Test Blind Area
10m
Range
68km
Transport Package
Wooden Box with Foam Inside
Specification
428*350*230mm
Trademark
MINGYANG
Origin
China Hubei
Production Capacity
1000
| Item | Specification |
|---|---|
| Product Name | cable fault locator |
| Display | 12.1-inch touch color LCD screen |
| Sampling frequency | 400MHz |
| Low voltage pulse width | 0.1uS/2uS |
| Minimum resolution | 0.5m (100m/us) |
| Test blind zone | ≤20m |
| Ranging range | ≤60km |
| Measurement error | ≤±(0.5%×L+1m), L is the cable length |
| Power supply mode | built-in rechargeable lithium battery |
| Ambient temperature | -25～65℃ |
| Relative humidity | ≤90% |
Technical parameter
| Sampling frequency | 400MHz |
| Low voltage pulse amplitude | 400V |
| Pulse width | 0.25uS/2uS/4uS |
| Minimum resolution | 0.5m |
| Test blind area | ≤10m |
| Range | ≥68km |
| Measurement error | ≤± (0.5% ×L+1m), L is the cable length |
| Test cable length | < 1km (short distance); < 3km (medium distance); > 3 km (long distance) three kinds |
| Power supply | Charging AC110V ~ 240V, 50Hz/60Hz; Built-in 10400mAH lithium battery power supply; |
| Working conditions | temperature -20ºC ~ +65ºC, relative humidity 90%, atmospheric pressure 750±30mmHg; |
| Volume and weight | 430×380×220mm-10kg; |

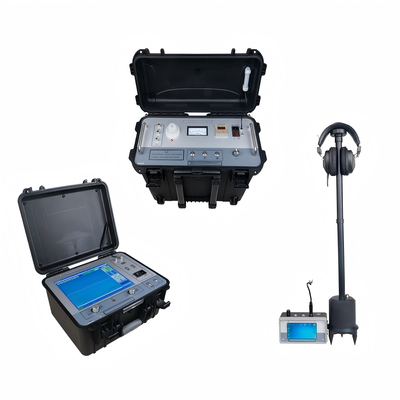

• Cable fault locator: The unit that uses low voltage pulse method and high voltage flashover method to test and analyze the cable;
• Stylus: easy to operate and touch the integrated screen, accurate positioning and selection of the display area;
• Output line (single Q line) : Connect the cable fault tester and the cable under test during the low-voltage pulse test method;
• Input line (double Q line) : Connect cable fault tester and sampler during high-voltage flashover test;
• Sampler: When the high-voltage flashover method, the signal that receives the high-voltage signal is reflected to the sampling ground;
• Power cable: cable fault tester charging cable;
