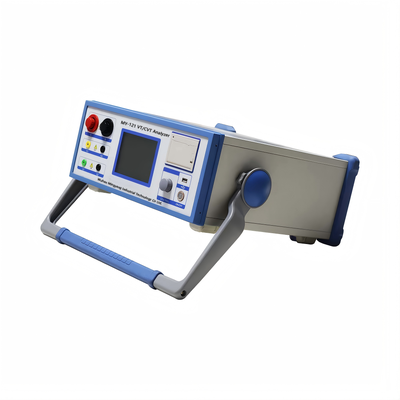

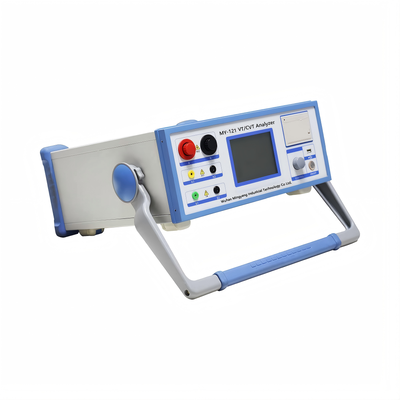

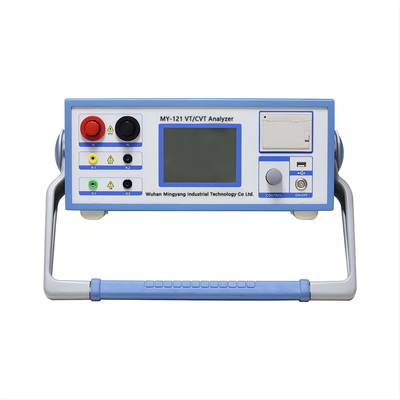

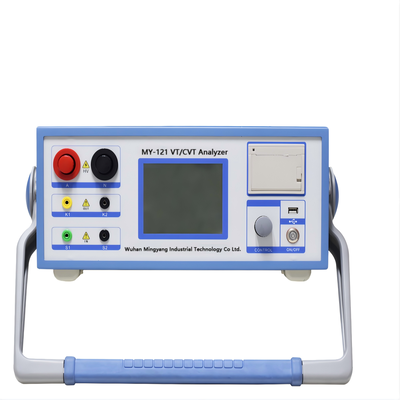

MY-121 VT CVT CCVT PT Comprehensive Characteristic Analyzer | Electromagnetic & Capacitive Voltage Transformer Testing Equipment
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-121 |
| Minimum Order Quantity | 1 |
| Price | 5000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Supply Ability | 500/Month |
Product Details
| Types | Automatic | Type | Universal Testing Machine |
|---|---|---|---|
| Loading Method | Static Load | Load Way | Electronic Load |
| Control Mode | Computer Control | Display Mode | Digital Display |
| Accuracy Grade | 0.05 | Max Mass Of Workpiece | 20kg |
| Max Diameter Of Workpiece | ＜500mm | Power Supply | AC220V |
| Output Voltage | 180V | Net Weight | 20kg |
| Overall Dimension | 700mm*590mm*350mm | Monthly Production Capacity | 500 Sets |
| Input Voltage Range | 200VAC~240VAC | Allowable Input Voltage | 180VAC~260VAC |
| Frequency | 50Hz/60Hz | Allowable Frequency Range | 45Hz~65Hz |
| Standby Power | 80VA | Rated Test Power | 600VA |
| Peak Power | 1800VA | High Voltage Output | 0~3000VAC |
| Low Voltage Output | 0~120VAC,0~120VDC | Load Test Resolution | 0.02VA |
| Typical Load Test Accuracy | 0.05% | Guaranteed Load Accuracy | 0.1% ± 0.02VA |
| Working Temperature | -10℃~50℃ | Storage Temperature | -25℃~70℃ |
Product Description
MY-121 VT CVT CCVT PT Comprehensive Characteristic Analyzer | Electromagnetic & Capacitive Voltage Transformer Testing Equipment
Product Description
MY-121 PT analyzer is a comprehensive test instrument based on transformer volt ampere characteristics ratio regulator, analysis error of comprehensive test instrument transformer volt ampere characteristics of series resonant polarity ratio, widely listen to the views of users, through a new generation of innovative PT test equipment R & D after extensive market research, in-depth theoretical research.
Device adopts high performance DSP+FPGA and ARM industrial computer, advanced manufacturing technology, to ensure stable and reliable product performance, complete functions, high degree of automation, high testing efficiency, in the domestic leading level, is professional testing instrument for transformer in electric power industry.
Device adopts high performance DSP+FPGA and ARM industrial computer, advanced manufacturing technology, to ensure stable and reliable product performance, complete functions, high degree of automation, high testing efficiency, in the domestic leading level, is professional testing instrument for transformer in electric power industry.
Basic Info.
Model NO.
MY-121
Max Diameter of Workpiece
<500mm
Mass Scope of Workpiece
20kg
Type
Universal Testing Machine
Accuracy Grade
0.05
Load Way
Electronic Load
Loading Method
Static Load
Display
Digital
Control
Computer Control
Weight
20kg
Power Source
AC220V
Power Supply
220V 50Hz
Voltage Output
180V
Size
365 mm*290mm*153mm
Manufacturer
MINGYANG
Transport Package
Aluminum Alloy Packing Box Inside Andwooden Box O
Trademark
MINGYANG
Origin
China
HS Code
9031809090
Production Capacity
500/Month
Product Features
1: Single instrument can realize the error test of voltage transformer, no need of resonance booster device, standard voltage transformer, load box, check instrument and other equipment, greatly reducing the workload of the field calibration error.
2: The test range is wide, can test the voltage level of 6kV~800kV electromagnetic voltage transformer.
3: Using internal 0.01 level standard voltage transformer, low voltage transformer error measuring by difference test method, and using different frequency measurement technology, nonlinear error of PT conversion 50Hz, finally get the error of transformer. Instrument test level can reach 0.05 level. During the testing process, the maximum generation of test voltage is not more than 3kV, to ensure the safety of the field test.
4: The test wiring ,operation is simple and easy to learn, just according to the guide prompt operation can easily complete transformer calibration work greatly improve the test efficiency. Test time is short, less than 5 minutes.
5: The software algorithm is accurate, the accuracy of measurement data to further improve the intelligent judgment connection status, prompt connection error, wrong polarity ratio, etc..
6: Automatic test data for the whole, and to determine whether the ultra poor, super bad data using anti black display, the data characteristics of the mutual inductor intuitive and clear.
7: Large memory can store the test data of up to 10000.
8: The use of aluminum chassis, with good anti-interference, and to ensure the safety of the operation personnel and equipment safety in the field of high voltage test.
9: Using high resolution and large size 8 inch true color liquid crystal display, outdoor strong light under the clear display, with touch screen auxiliary operation, simple and quick, full Chinese display operation, easy to understand.
2: The test range is wide, can test the voltage level of 6kV~800kV electromagnetic voltage transformer.
3: Using internal 0.01 level standard voltage transformer, low voltage transformer error measuring by difference test method, and using different frequency measurement technology, nonlinear error of PT conversion 50Hz, finally get the error of transformer. Instrument test level can reach 0.05 level. During the testing process, the maximum generation of test voltage is not more than 3kV, to ensure the safety of the field test.
4: The test wiring ,operation is simple and easy to learn, just according to the guide prompt operation can easily complete transformer calibration work greatly improve the test efficiency. Test time is short, less than 5 minutes.
5: The software algorithm is accurate, the accuracy of measurement data to further improve the intelligent judgment connection status, prompt connection error, wrong polarity ratio, etc..
6: Automatic test data for the whole, and to determine whether the ultra poor, super bad data using anti black display, the data characteristics of the mutual inductor intuitive and clear.
7: Large memory can store the test data of up to 10000.
8: The use of aluminum chassis, with good anti-interference, and to ensure the safety of the operation personnel and equipment safety in the field of high voltage test.
9: Using high resolution and large size 8 inch true color liquid crystal display, outdoor strong light under the clear display, with touch screen auxiliary operation, simple and quick, full Chinese display operation, easy to understand.
Product Parameters
| Power Supply | |
| Voltage range | 200VAC~240VAC |
| Allowable voltage range | 180VAC~260VAC |
| Frequency | 50Hz/60Hz |
| Allowable frequency range | 45Hz~65Hz |
| Input power | Standby: 80VA Rated test power:600VA Peak power:1800VA |
| Output | |
| High voltage output | 0~3000VAC |
| Low voltage output | 0~120VAC,0~120VDC |
| Output current | 0~5A eff(15A peak) |
| Output power | 0~600VA eff(1500VA peak) |
| Electromagnetic voltage transformer(VT) | |
| Ratio test | Ratio:1~350 Voltage level: 0.6kV~35kV Typical accuracy:0.05% |
| Ratio:350~2450 Voltage level: 35kV~245kV Typical accuracy:0.05% | |
| Phase error test | Ratio:1~350 Voltage level : 0.6kV~35kV Typical accuracy:1min |
| Ratio:350~2450 Voltage level: 35kV~245kV Typical accuracy:2min | |
| Capacitor voltage transformer(CVT/CCVT) | |
| Ratio test | Ratio:300~8000 Voltage level: 30kV~800kV Typical accuracy:0.07% |
| Phase error test | Ratio:300~8000 Voltage level: 30kV~800kV Typical accuracy:2min |
| Coil resistance measurement | |
| Resolving power | 1mΩ |
| Typical accuracy | 0.05% |
| Guaranteed accuracy | 0.1% + 1mΩ |
| Load test | |
| Resolving power | 0.02VA |
| Typical accuracy | 0.05% |
| Guaranteed accuracy | 0.1% + 0.02VA |
| Size | |
| Volume | 700mm*590mm*350mm |
| Weight | 15kg ( No accessories included) |
| Environment condition | |
| Working temperature | -10ºC~50ºC |
| Storage temperature | -25ºC~70ºC |
| Relative humidity | 5%~95%,No condensation |
