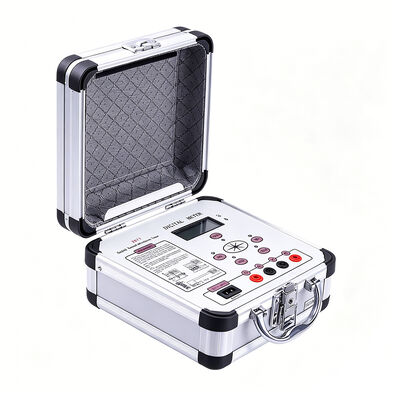

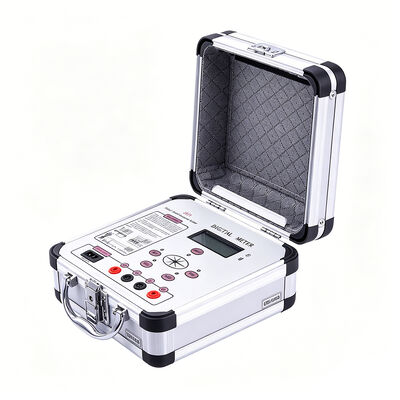

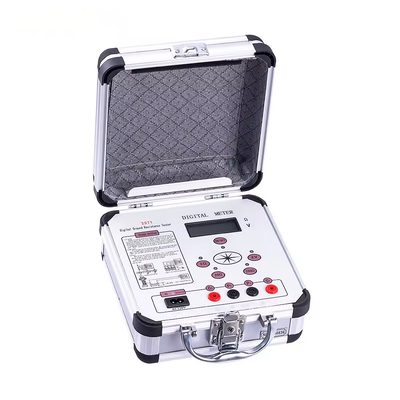

Portable Digital Grounding Resistance Tester with 0~200Ω Range and 2 Years Warranty
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-2571 |
| Minimum Order Quantity | 1 |
| Price | 250usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Warranty | 2 Years | Power | Electronic |
|---|---|---|---|
| Customized Support | OBM, ODM, OEM, Software Reengineering | The Environment Temperature | 0℃~+45℃ |
| Place Of Origin | Hubei, China | Maximum Power Loss | ≤2W |
| Weight | ≤1.4kg | Dimension | 220*200*105mm3 |
| Allowable Ground Voltage | ≤5V,error≤±5% | Resistance | 0~2Ω(10mA),2~20Ω(10mA),20~200Ω(1mA) |
| Highlight | portable earth resistance tester,portable grounding resistance tester,electronic earth resistance tester |
||
Product Description
Portable Digital Grounding Resistance Tester
Professional Earth Resistance Measurement Meter
This portable digital grounding resistance tester provides accurate earth resistance measurement for electrical testing applications. The unit comes with a 2-year warranty and features electronic power source operation.
Technical Specifications
Operating Conditions
| Parameter | Specification |
|---|---|
| Environment Temperature | 0℃～+45℃ |
| Relative Humidity | ≤85%RH |
Measurement Range & Constant Current (RMS)
| Measurement Type | Range |
|---|---|
| Resistance | 0～2Ω (10mA), 2～20Ω (10mA), 20～200Ω (1mA) |
| Voltage | AC 0～19.99V |
Measurement Accuracy & Resolution
| Parameter | Specification |
|---|---|
| Precision | 0～0.2Ω ≤ ±3% ±1d 0.2Ω～199.9Ω ≤ ±1.5% ±1d 1～19.99V ≤ ±3% ±1d |
| Resolution | 0.001Ω, 0.01Ω, 0.1Ω, 0.01V |
Measurement Error Specifications
| Parameter | Specification |
|---|---|
| Allowable Auxiliary Grounding Resistance | RC (Between C1 and C2): 0～2Ω, 2～20Ω ≤ 1kΩ 20～200Ω ≤ 2kΩ RP (Between P1 and P2) < 40kΩ, error ≤ ±5% |
| Allowable Ground Voltage (Power Frequency RMS) | ≤5V, error ≤ ±5% |
Power Specifications
| Parameter | Specification |
|---|---|
| Maximum Power Loss | ≤2W |
| DC Power | 8 × 1.5V (AA, R6) Battery |
| AC Power | 220V/50Hz |
Physical Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 220 × 200 × 105 mm³ |
| Weight | ≤1.4kg |
Product Images
