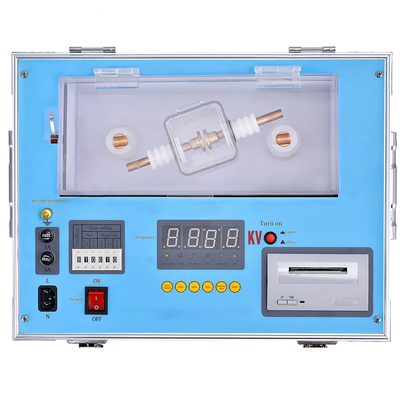

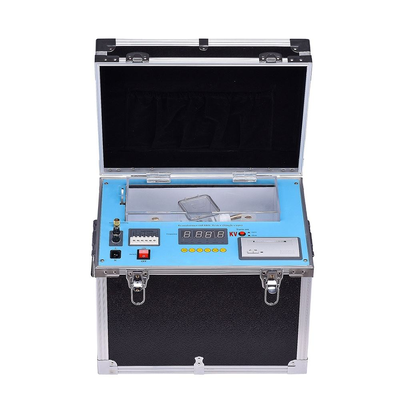

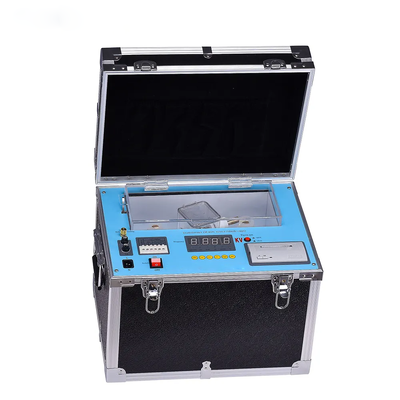

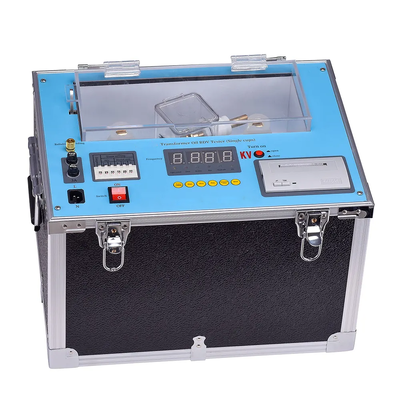

Portable Transformer Oil BDV Tester Dielectric Strength Analyzer For Insulating Oil
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYJYD III |
| Minimum Order Quantity | 1 |
| Price | 1200usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Measuring Range | 1-1999μΩ | Accuracy Class | High Accuracy |
|---|---|---|---|
| Operating Temperature | -10℃~40℃ | Time Resolution | 1s |
| Current Resolutio | 1μΩ | Place Of Origin | Hubei, China |
| Resolution | 1μΩ | Measurement Accuracy | 0.5% |
| Measurement Range | 1-1999μΩ | Working Power Supply | AC220V ± 10%, 50Hz ± 1Hz |
| Weight | 12kg | Display Mode | Three-and-a-half-digit LCD |
| Volume | 380*350*260 Mm | Type | Testing Machine |
| Protection Class | IP65 | Customized Support | OEM |
| Power | Electric | Warranty | 2 Years |
| Voltage | 220 V, 110 V | Application | Oil Testing, Oil BDV Tester |
| Place Of Origin | Hebei, China | Output Voltage | 0~80KV (optional) |
| Voltage Distortion Rate | <3% | Product Type | Oil Bdv Tester |
| Standing Time | 15min (adjustable) | Booster Capacity | 1.5KVA |
| Measuring Accuracy | ±3% | Applicable Temperature | 0℃~45℃ |
| Supply Voltage | AC220V±10% 50Hz±1 Hz | ||
| Highlight | Portable oil bdv tester,Insulating Oil oil bdv tester,IP65 transformer test kit |
||
Product Description
Transformer Oil Breakdown Voltage Tester
The Automatic Oil Dielectric Strength Tester is designed for safe testing of large power transformers and other high-voltage electrical equipment including oil circuit breakers, oil-filled cables, power capacitors, and oil sleeves.
During operation, transformer oil performance gradually deteriorates due to exposure to oxygen, high temperature, humidity, sunlight, strong electric fields, and impurities, compromising its insulation capabilities. This tester accurately identifies performance degradation, as insulation oil quality is directly related to breakdown voltage.
Technical Performance Specifications
| Parameter | Specification |
|---|---|
| Power Voltage | AC220V ± 10%, 50Hz ± 5% |
| Equipment Capacity | 0.5kVA, Volume Capacity 1.5 kVA |
| Limited Current | 5mA |
| Input Voltage | 200V/50Hz |
| Output Test Voltage | 0-80kV |
| Measurement Range | AC 0-80kV |
| Voltage Indicator Error | ± 5% |
| Breathing Speed | 2kV/second ± 20% |
| Compression Speed | 2kV/s ± 10% |
| State Settings | Number of times 1-9 |
| Static Time | 0-10 minutes 39 seconds |
| Stirring Time | 0-1 minutes 39 seconds |
| Burning Time | ≤ 20ms |
| Measurement Accuracy | 1% |
| Use Conditions | Ambient temperature 10℃ - 35℃ |
| Relative Humidity | ≤ 75% |
| Oil Cup Gap | 2.5mm (diameter of oil cup plug ruler) |
| Breathing Speed Options | 2.0kV/s, 2.5kV/s, 3.0kV/s, 3.5kV/s (four-gear option) |
| Packaging Size & Weight | 48*45*38cm, 25kg |
