Multi Function Capacitor Bank Reactor Tester With LCR Power Frequency Current Measurement
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-2111D |
| Minimum Order Quantity | 1 |
| Price | 1700-2200usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Voltage | 220V Electrical Equipment |
|---|---|---|---|
| Warranty | 2 Years | Power | 180W |
| Place Of Origin | Hubei, China | Accuracy Class | 0.2% |
| Protection Class | IP55 | Customized Support | OEM, ODM, OBM, Software Reengineering |
| Accuracy | ±0.5% | Operating Value Of Phase Current | 10A |
| Time Range | 1ms~9999s | Power Factor | 300VA/phase |
| Display Type | Digital Only | Resolution | 0.1μΩ |
| Place Of Origin | China | Operating Temperature | -10~40℃ |
| Out Put Current | 0-10A | Screen | LCD |
| Highlight | Multi Function resistance meters,180W resistance meters,10A resistance moisture meter |
||
Product Description
Multi-Function Capacitor Bank & Reactor Tester with LCR and Power Frequency Current Measurement
Multi-Function Capacitor Bank & Reactor Tester with LCR and Power Frequency Current Measurement
Performance Features
- Versatile Functions & Rich Data Readings: This instrument can measure the capacitance of individual capacitors in parallel capacitor banks without disconnecting wiring, supporting both single-phase and three-phase capacitors. It is also capable of measuring the inductance of various reactors and acting as a power frequency current tester. Three functions integrated in one device to meet diverse on-site demands. During measurement, it displays capacitance or inductance values along with voltage, current, capacity, power, frequency, impedance and phase angle for comprehensive quality analysis of the tested object.
- Intuitive Human-Machine Interaction: Equipped with a 240*128 backlit color LCD screen for clear viewing day and night. Adopts Chinese menu with simple operation.
- Real-time clock and date display with power-off retention.
- Power-off data storage: Up to 50 groups of test data can be saved.
- Built-in mini thermal printer: Enables fast and silent printing of test results at any time.
- Overcurrent protection: The instrument will not be damaged in case of short circuit at power output.
- Automatic measurement: Automatically identifies the type of test objects (capacitor, inductor, resistor).
Technical Specifications
| Output Voltage | ～2V, ～20V (auto selection) |
|---|---|
| Output Current | ≤10Ａ |
| Measuring Range | Capacitance: 0.1uF～2200uF Inductance: 0.1mH～10H Resistance: 50mΩ-20000Ω Current: 1mA～20A Voltage: 0～AC25V Capacity: 0～20,000 Kvar |
| Accuracy | Capacitance: ±(1%±5字) Inductance: ±(2%±5字) Resistance: ±(1%+5字) Current: ±(1%±5字) Voltage: ±(1%±5字) Capacity: ±(1%±5字) |
| Resolution | Capacitance: 0.1nF Inductance: 0.1mH Resistance: 0.1mΩ Current: 0.1mA Voltage: 0.1mV |
| Ambient Temperature | -10℃～40℃ |
| Relative Humidity | ≤80%RH non-condensing |
| Power Supply | AC Power: AC220V±10% 50±1Hz DC Power: Built-in lithium battery pack |
| Power Consumption | 250W |

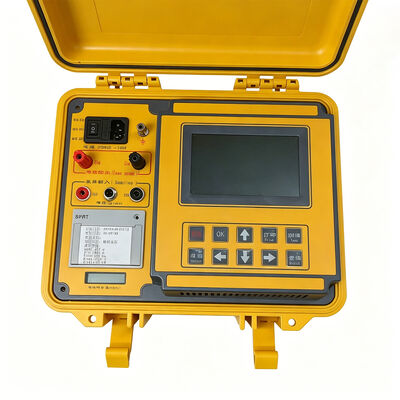

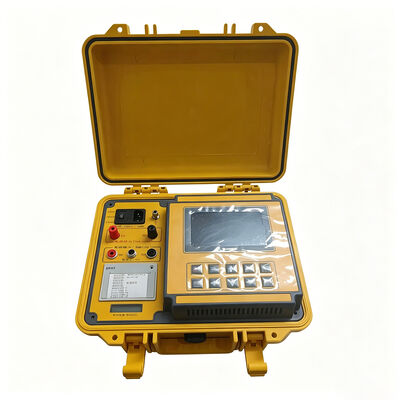

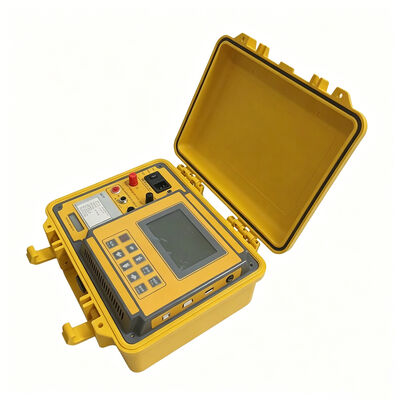

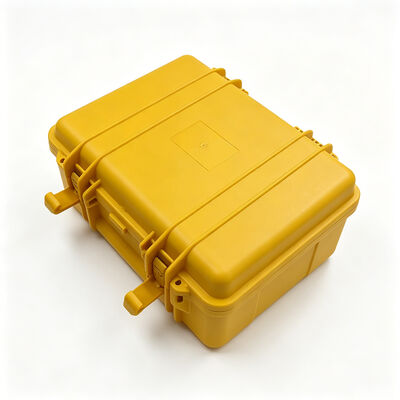

Product Images
