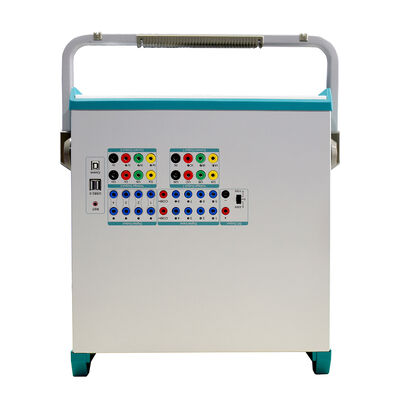

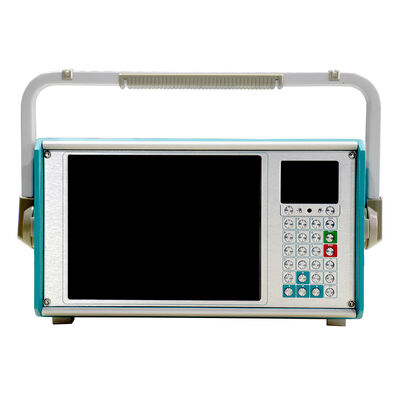

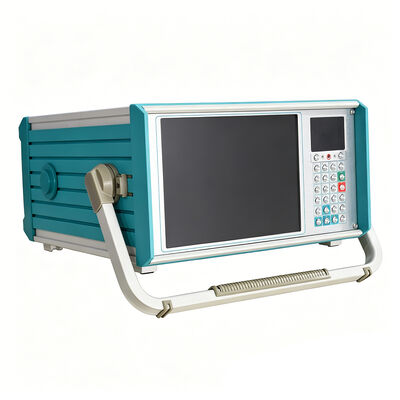

6 Phase Relay Test Kit With 0.2% Accuracy And 600VA Power For Secondary Injection
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-T1200 |
| Minimum Order Quantity | 1 |
| Price | 4800usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Warranty | 3 Years |
|---|---|---|---|
| Protection Class | IP55 | Application | Electrical Testing |
| Customized Support | OEM, ODM, OBM, Software Reengineering | Accuracy | 0.2% |
| Place Of Origin | Hebei, China | Power | 600VA |
| AC Frequency Range | 0--1000Hz Accuracy: 0.001Hz Harmonic Times: 2--20 Times | Power Source | AC220V ± 10% 50Hz 10A |
| Switch Terminals | 8 Pairs ,breaking Capacity: 110V / 2A, 220V / 1A | DC Voltage Source | Phase Voltage / Line Voltage Output Power: 90VA / 180VA |
| AC Current Source | 3-phase Current Parallel Output Max: 60A( Or 90A,120A) | ||
| Highlight | 6 Phase relay test kit,600VA relay test kit,Secondary Injection relay test set |
||
Product Description
Electrical 6-Phase Relay Test Kit with Secondary Current Injection
This advanced six-phase relay test kit with secondary current injection meets all on-site testing requirements for both traditional and modern protection devices.
Key Features & Capabilities
- Standard four-phase voltage and three-phase current output for comprehensive testing
- Ideal for transformer differential protection and standby automatic switching devices
- Compliant with DL/T624-1997 technical standards for relay protection test devices
- Intuitive operating interface with high-performance embedded industrial controller.
- 8.4-inch TFT true color display (800×600 resolution) for clear information presentation
- Built-in system recovery function to prevent crashes from improper shutdowns
- Ultra-thin industrial keyboard and optical mouse for PC-like operation
- DSP + FPGA main control board with 16-bit DAC output for high-quality waveforms
- High-fidelity linear power amplifier ensures current accuracy and stability
- USB interface for direct PC communication without additional cables
- Compatible with laptop operation using identical software interface
- GPS synchronization capability for multi-location testing (optional)
- Dedicated DC auxiliary voltage source (110V/1A, 220V/0.6A) for powered devices
- Software self-calibration eliminates manual potentiometer adjustments
Technical Specifications
| Parameter | Specification |
|---|---|
| AC Current Source | 6 × 30A |
| Single Phase Current Output (RMS) | 0–30A/phase, accuracy: 0.2% ± 5mA |
| Six Phase Parallel Output (RMS) | 0–180A/6 same phase parallel output |
| Long-term Allowable Phase Current | 10A (effective value) |
| Maximum Output Power per Phase | 300VA |
| Six Phase Parallel Current Maximum Power | 1000VA |
| Maximum Output Current Duration | 5 seconds |
| Frequency Range | 0–1000Hz, accuracy: 0.01Hz |
| Harmonic Number | 2–20th order |
| Phase Range | 0–360°, accuracy: 0.1° |
