200A High Current High Precision Loop Contact Resistance Tester With Digital Display
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-HLA |
| Minimum Order Quantity | 1 |
| Price | 720usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Max. Ac Voltage | 5kV | Display Type | Digital Only |
|---|---|---|---|
| Operating Temperature | -10℃~40℃ | Max. AC Current | 20mA |
| Dimensions | 320*270*180mm | Application | Industrial Measurement |
| Output Voltage | AC:0~5kV | Test Accuracy | ±(5%+3 Characters) |
| Transformer Capacity | 100VA | Power Requirements | AC:220V+10% 50Hz/60Hz±3Hz |
| Test Current | AC:0~2/20mA | PLC | Interface Optional |
| Measuring Range | 1-1999μΩ | Time Resolution | 1s |
| Current Resolution | 1μΩ | Insulation Resistance | None |
| Measurement Range | 1-1999μΩ | Accuracy Class | 0.5% |
| Current Range | DC 50A, 100A, 150A, 200A | Place Of Origin | Hubei, China |
| Resolution | 1μΩ | Measurement Accuracy | 0.5% |
| Working Power Supply | AC220V ± 10%, 50Hz ± 1Hz | ||
| Highlight | 200a ground tester,200a resistance tester,high current ground tester |
||
Product Description
200A High Precision Loop Contact Resistance Tester
The 200A High Precision Loop Contact Resistance Tester delivers reliable and accurate measurements for switch contact resistance testing applications.
Key Features
- High Current Output: Utilizes advanced power supply technology to deliver continuous high current output, effectively breaking down oxide films on switch contacts for superior test results.
- Excellent Anti-Interference: Maintains stable LCD display readings even under severe interference conditions, ensuring consistent and repeatable measurements.
- Long Service Life: Features high-precision resistors that eliminate ambient temperature effects and industrial-grade connectors for enhanced vibration resistance.
- Portable Design: Compact and lightweight construction for easy transportation and field use.
Technical Specifications
| Measuring Range | 1-1999μΩ |
|---|---|
| Resolution | 1μΩ |
| Test Current | Four fixed output ranges: DC 50A, 100A, 150A, and 200A |
| Accuracy | 0.5% |
| Operating Mode | Continuous |
| Display | 3.5-digit LCD |
| Power Supply | AC220V±10% 50Hz |
| Operating Environment | Temperature -10°C to 40°C, Humidity ≤80%RH |
| Dimensions | 380*350*260mm |
| Weight | 12 kg |

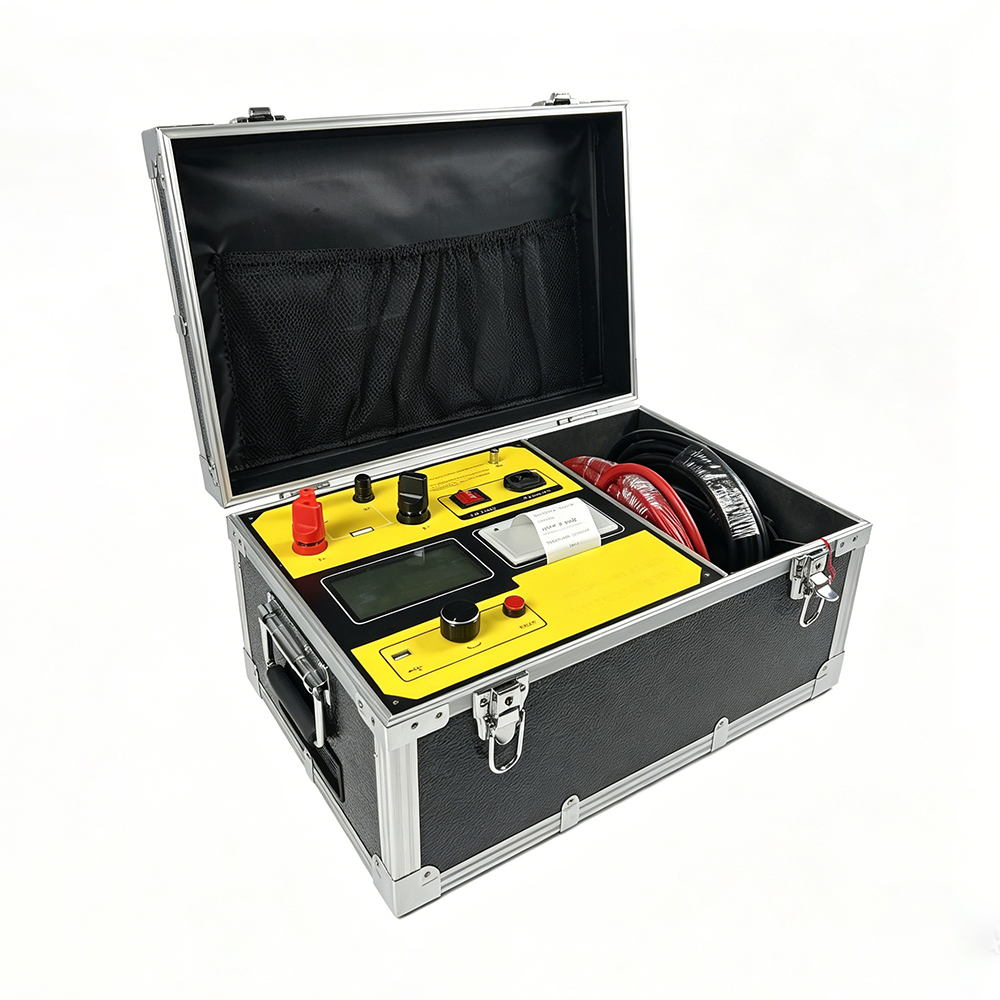

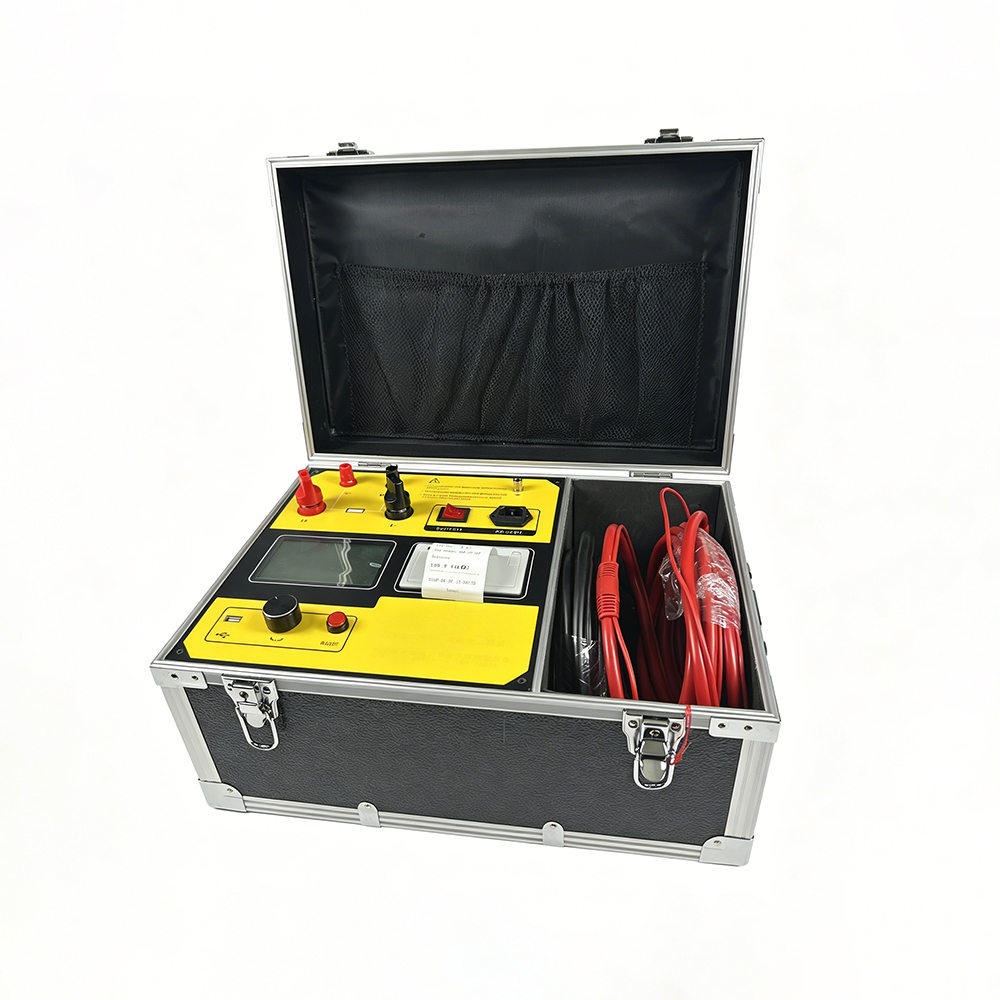

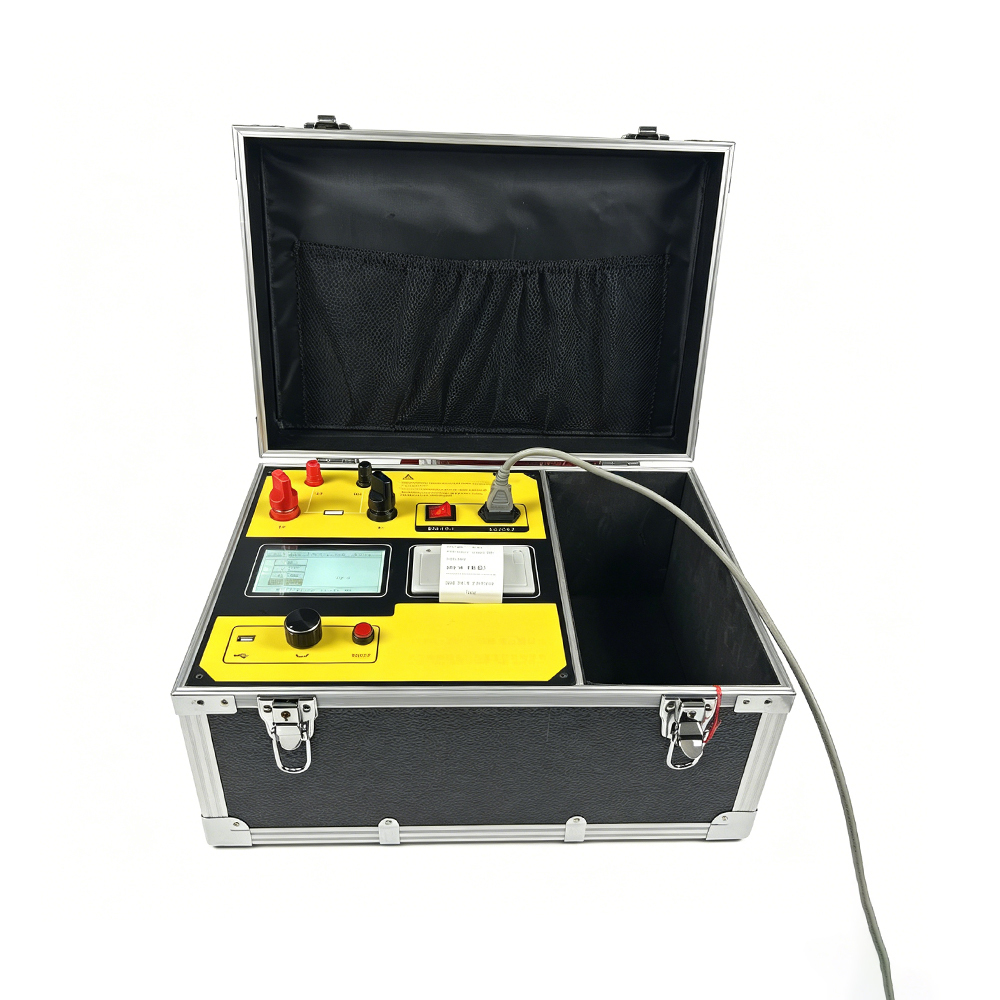

Product Images
